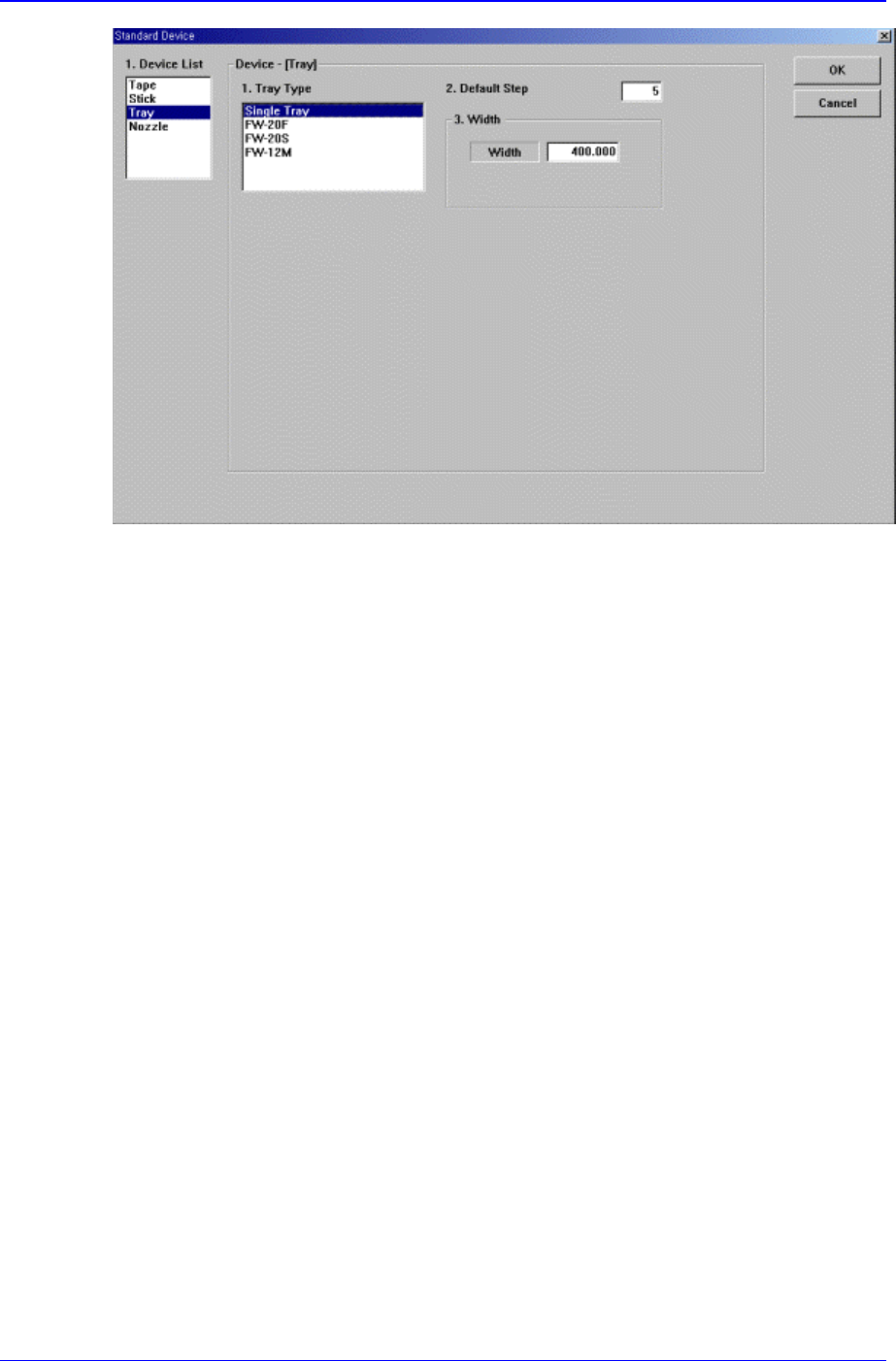

Figure 15-17. “Sys. Setup : Standard Device – Tray” dialog

 <1. Tray Type> list box

Select the tray feeder type to set.

 <2. Default Step> edit box

Tray Feeder Type 에 따른 각 TrayFeeder 들의 기본 Tray 수를 설정합니다:

Single Tray(5)FW-20F(20), FW-20S(20), FW-12M(12), FW-24XS(24).

 <3. Width> edit box

Set the width of the tray feeder.

Next screen is the case where the “Nozzle” is selected in the Device list.

Set the data on Nozzle.

Sys.Setup Command

15-31

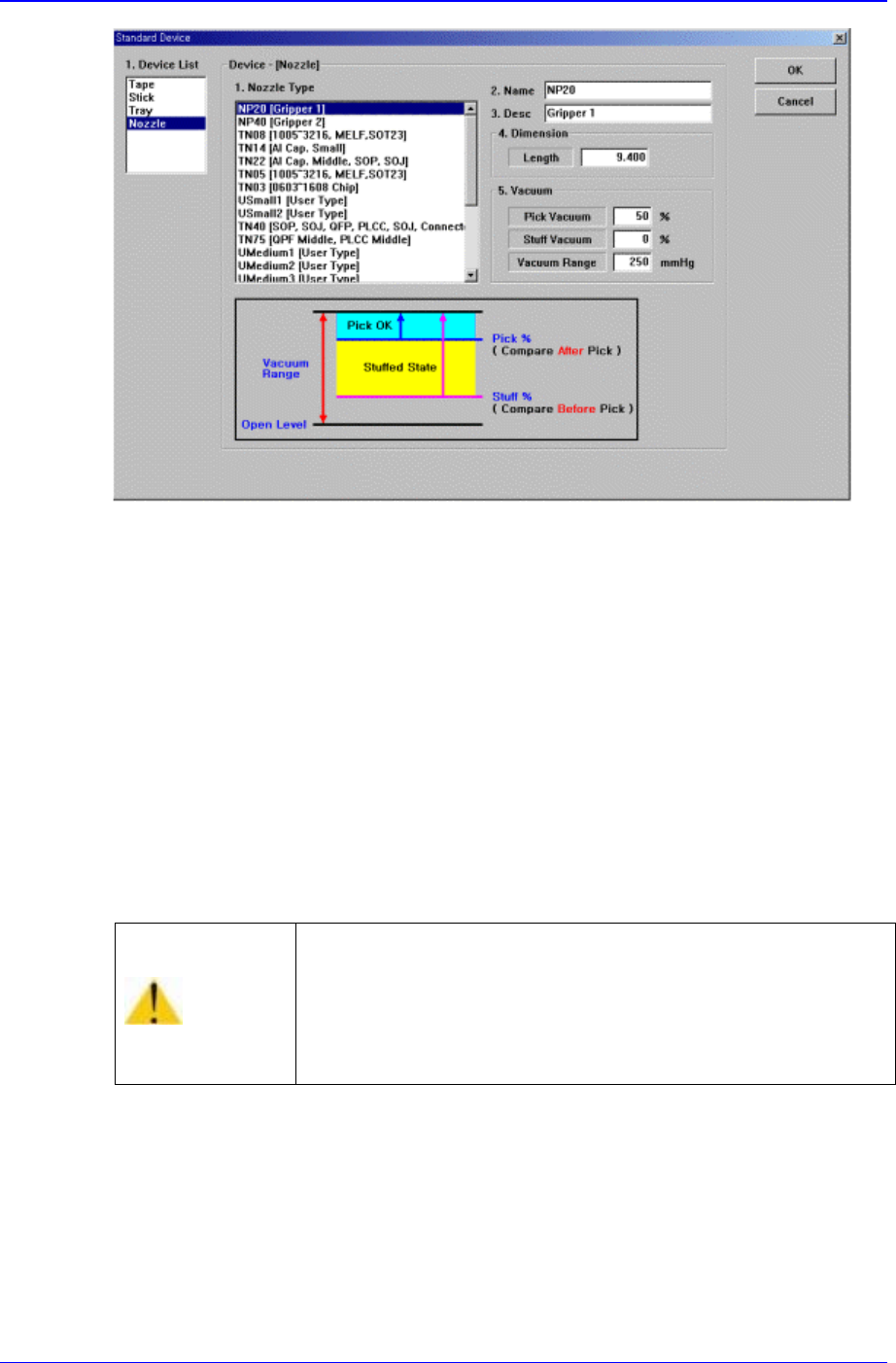

Figure 15-18. “Sys. Setup : Standard Device – Nozzle” dialog box

 <1. Nozzle Type> list box

Select the nozzle type to set.

 <2. Name> edit box

Set the name of the selected nozzle.

 <3. Desc> edit box

Set the explanation on the selected nozzle.

 <4. Dimension - Length> edit box

Set the nozzle length.

 <5. Vacuum – Pick Vacuum> edit box

Set the vacuum pressure level to be used as the criteria to determine whether

component pickups is successful or not after component pickups with a percentage.

 <

5. Vacuum – Stuff Vacuum> edit box

Set the vacuum pressure level to be used as the criteria to determine whether there is

any foreign material in the nozzle or not before component pickups with a percentage.

 <5. Vacuum – Vacuum Range> edit box

Set the vacuum range for the percentages of Pick Vacuum, and Stuff Vacuum .

 <OK> button

Saves the data and closes the screen.

Warning

Changing the set up status by an unauthorized user could

damage the machine or result in personal injury.

Unauthorized user must not change the set up status of the

machine.

Samsung Component Placer CP-45F(V)/FS Operations Manual

15-32

 <Cancel> button

Ignores the data and closes the screen.
