Samsung Component Placer CP-45F(V)/FS Operations Manual
15-22
placement, skips the corresponding component, and place it again after all the
rest placement operation is completed.
<Buzzer On at error State> check box
If this button is checked, when an error occurs while a function is being
performed in the equipment, a buzzer rings.
<Keep Production Information> check box
When this button is checked, manages the production management information.
<Use fast pallet change function> check box
여러 Pallet 의 부품으로 장착작업을 할 경우 하나의 Pallet 에서 부품을
흡착한 후 Vision fail 이 나지 않으면 다음 Pallet 를 작업위치에 미리 대
기 시킵니다.
<Bad mark check before Fiducial mark check> check box
If this button is checked, executes bad mark check before fiducial mark check
when the PCB is loaded.
<Palette return after vision inspection> check box
When this button is checked, during tray operation, the palette returns after
vision inspection.
<Load Previous Work PCB data at start up> check box
If this button is checked, when the equipment is turned on, transmits the previous
operation PCB data to the equipment automatically and prepares for operation..
<Auto Search Run> check box
If this button is checked, when a component fails to be recognized during
placement, creates the component data automatically.
<Conveyor – Inline protocol> combo box
For the equipment line operation, select the protocol. Available protocols are as
follows.
<Inline protocol> combo box
Stand alone: Runs the equipment independently without performing line
operation.
SSA Type: For the line operation, uses the protocol specified by this
equipment manufacturer as the communication protocol between the front
and rear equipment.
SMEMA: For the line operation, uses SMEMA protocol as the
communication protocol between the front and rear equipment.
< PCB Quick Load > check box
<Work Out> : when this button is checked, release the PCB quickly.
<Sync. load> : when this button is checked, a PCB is in the working area at
the same time as the PCB finished placement is release from the working
area.
<Conveyor – PCB Quick Load Back Up Table> check box
When this button is checked, the Backup Table is up quickly after the PCB is in
the woking area.
<Scale> option button group
<mm> option button: when this button is selected, the scales on all screens
Sys.Setup Command
15-23
are displayed in mm.
<inch> option button: when this button is selected, the scales on all screens
are displayed in inch.
<mil> option button: when this button is selected, the scales on all screens
are displayed in mil.
<Confirm before Move> option button group
<None> option button: when this button is selected, does not display the
confirm message box when the movement command is transferred to the
equipment.
<Z axis> option button: If this button is selected, when the movement
command is transferred to the equipment, displays the confirm message box
if the command is for Z axis movement.
<XY, Z axis> option button: If this button is selected, when the movement
command is transmitted to the equipment, displays the confirm message box
if the command is for XY, and Z axes movement.
<Password> option button
A password is necessary for system setup. Select the password to use. When this
button is selected, the following screen is displayed.

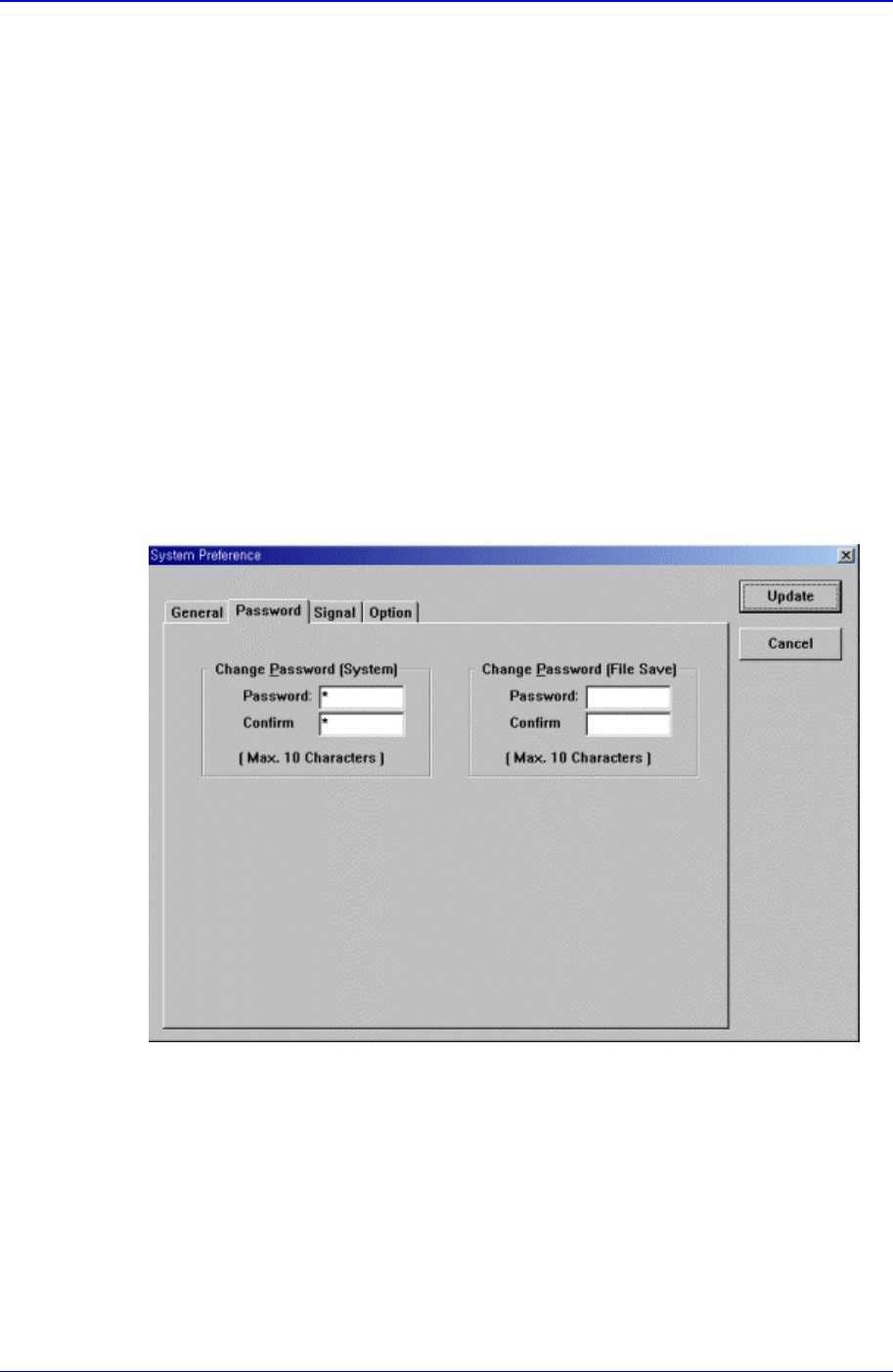

Figure 15-12. “Sys. Setup : System Preference - Password” dialog box
<Password> edit box
Set the password.
<Confirm> edit box
Set again to confirm the set password.
<Signal> option button
Set the status of the signal tower lamp. When this button is selected, the following
screen is displayed.
Samsung Component Placer CP-45F(V)/FS Operations Manual
15-24
Figure 15-13. “Sys. Setup : System Preference - Signal” dialog box
<Type> combo box
Select the signal tower type. Available types are as follows.
Red – Yellow – Green: When the signal tower lamp consists of “Red – Yellow –
Green”.
Red – Blue – Green: When the signal tower lamp consists of “Red – Blue –
Green”.
<Status> group
Set the status of the signal tower lamp corresponding to the equipment status.
For example, if you want to turn on the “Yellow” lamp of the signal tower in the
idle/wait status, check the corresponding “Yellow” lamp check box among the 3
check boxes under the Idle/Wait.
The status and meanings of the check boxes are as follows.
Checked: Turns on the corresponding lamp.
Not checked: Turns off the corresponding lamp.
Checked in gray: Flickers the corresponding lamp.
<Option> option button
Set whether to use or not to use the ANC and camera and set the constant parameter
to be used for the vision system. When this button is selected, the following screen is
displayed.
