Samsung Component Placer CP-45F(V)/FS Operations Manual
11-2

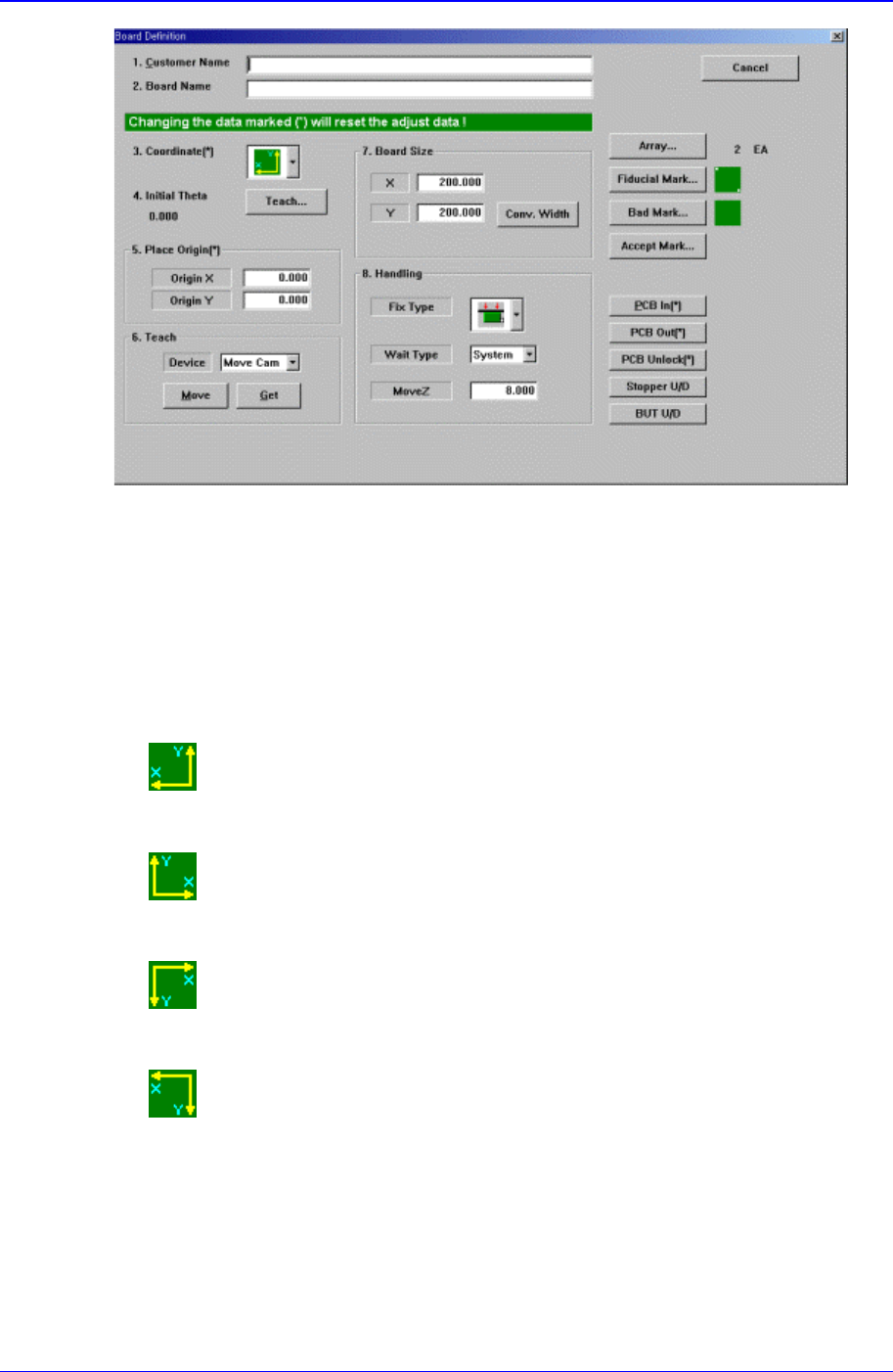

Figure 11-4. “PCB Edit : Board Definition” dialog box
<1. Customer Name> edit box
Enter the name of the customer who requested the PCB operation. Up to 64
characters can be entered.
<2. Board Name> edit box
Enter the PCB name. Up to 64 characters can be entered.
<3. Coordinate> combo box
Select the PCB coordinate system. Available coordinate systems are as follows.
Left-Up : Based on the front of equipment, it is a coordinate system in which
the X axis increases to the left and the Y axis increases to the top.
Right-Up : Based on the front of equipment, it is a coordinate system in which
the X axis increases to the left and the Y axis increases to the top.
Left-Down : Based on the front of equipment, it is a coordinate system in
which the X axis increases to the left and the Y axis increases to the top.
Right-Down : Based on the front of equipment, it is a coordinate system in
which the X axis increases to the left and the Y axis increases to the top.
<4. Initial Theta >
Set the initial theta for board data editing. At this time, the PCB should be already
loaded in the operation area of the equipment.
<Initial Theta - Teach> button
PCB Edit Command
11-3
It is activated when there is fiducial mark data.
This button is used to teach the initial theta of PCB. When this button is clicked
on, the following screens are displayed in succession.
When teaching the initial theta of PCB, teach two points on the same horizontal
or vertical line, then the initial theta of the PCB is calculated automatically.

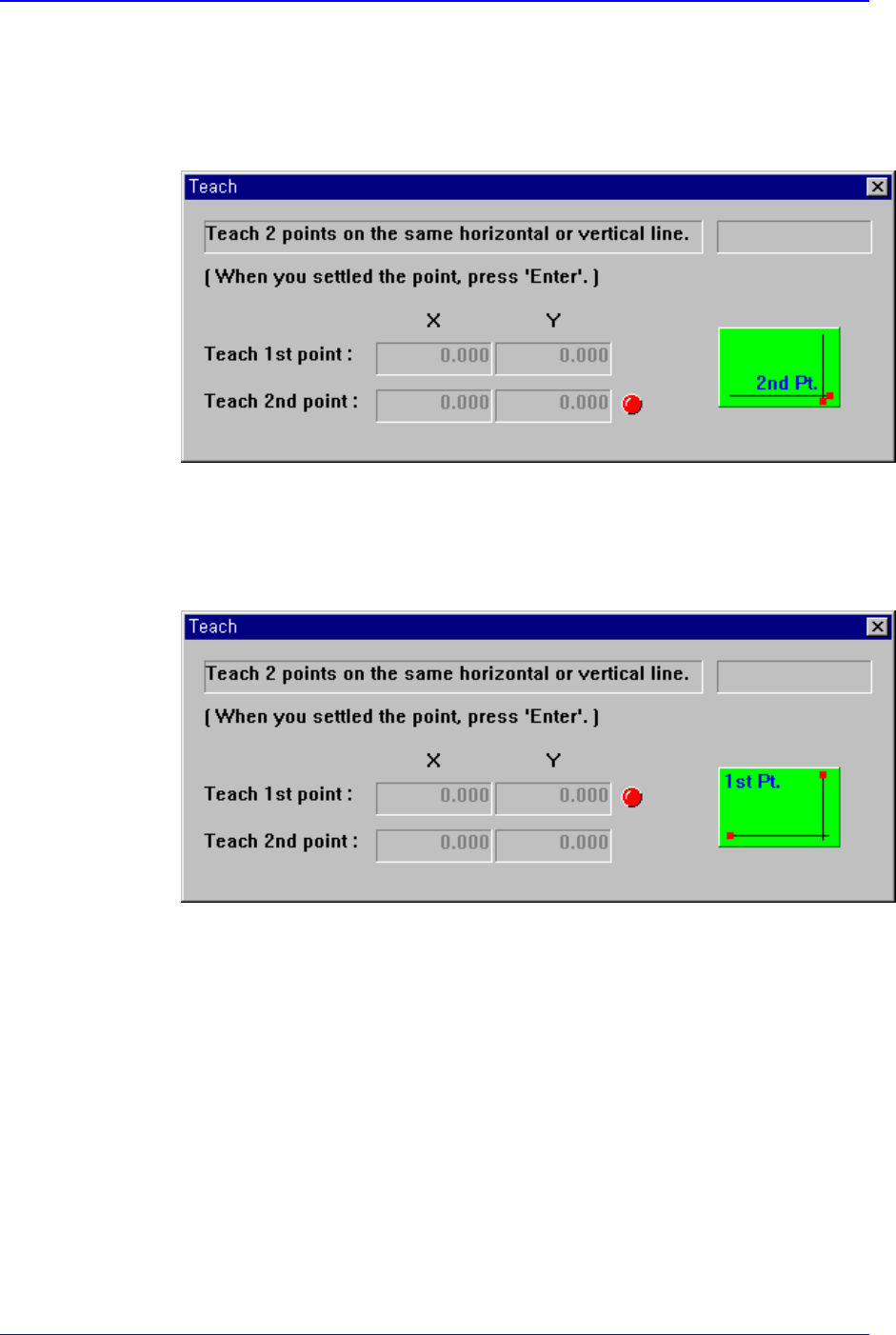

Figure 11-5 Screen showing the first point teaching
Teach the first point of the two points on the same horizontal line or vertical line
on the PCB. When the “Enter” key is pressed after teaching, the following screen
is displayed.
Figure 11-6 Screen showing the second point teaching
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-4
Teach the second point of two points on the same horizontal or vertical line on
the PCB. When the “Enter” key is pressed after teaching, the following screen is
displayed.

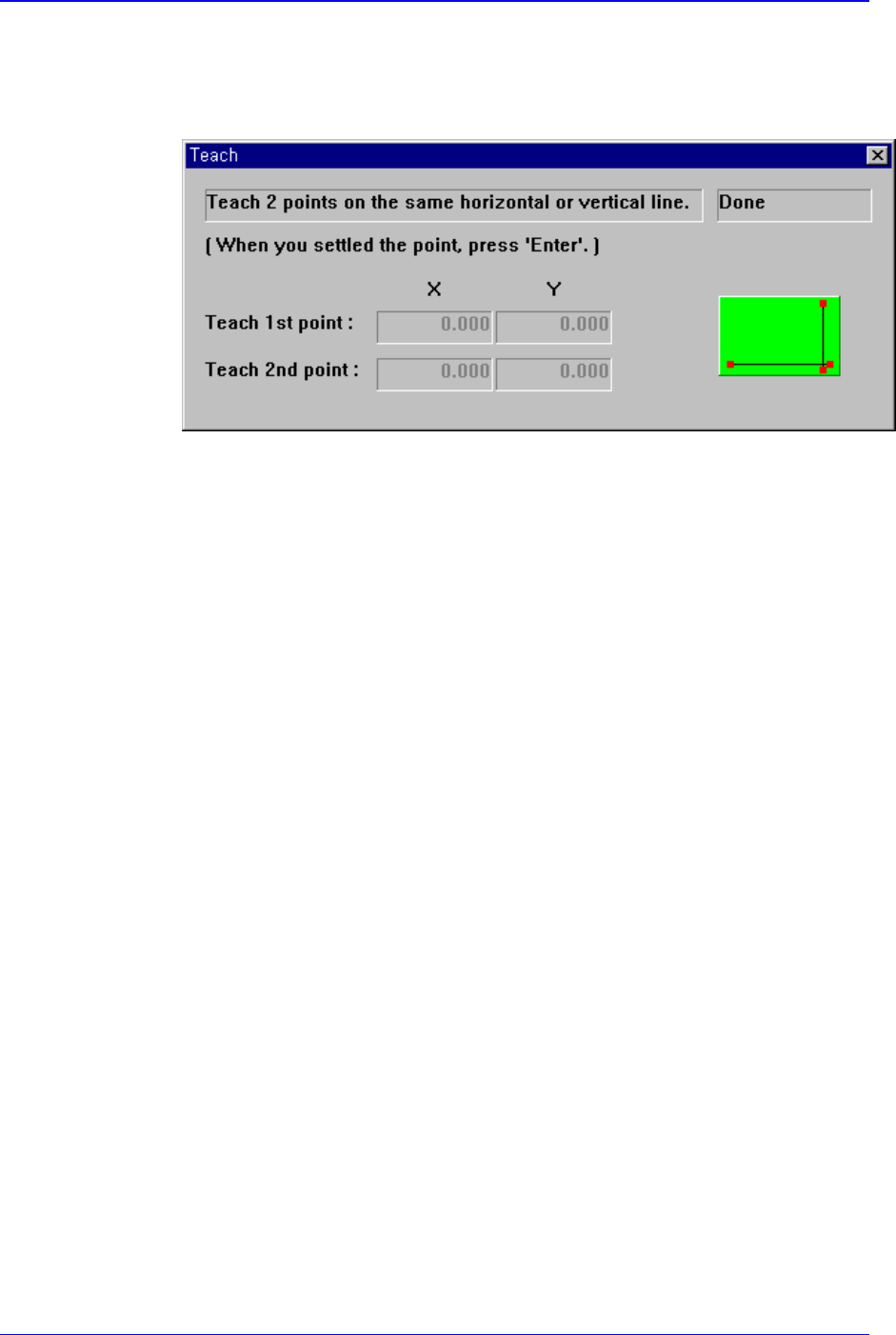

Figure 11-7. Screen showing completion of teaching operation
After teaching the two points, press “Enter” to complete the initial theta teaching
operation.
<5. Place Origin> group
Set the placement origin of PCB. This origin is defined by the offset from the PCB
origin of the system to the placement origin of PCB.
<Origin X> edit box
Set the X value of the placement origin of PCB.
<Origin Y> edit box
Set the Y value of the placement origin of PCB.
Click on <Origin X> or <Origin Y>, then click on the “Move” or “'Get” button in
the <8. Teach> group, then you can teach the selected device as the placement
origin .
<6. Teach> group
Used to move the XY, and Z axes of the equipment to the specified position or to read
in the current position of the XY and Z axes.
<Device> combo box
To move or to read in the current position of the XY and Z axes, select the
corresponding device. Available devices are as follows.
Move Cam: Selects Teaching Camera.
Head1: Selects Head1.
Head2: Selects Head2.
Head3: Selects Head 3.
Head4: Selects Head 4.
Head5: Selects Head 5.
Head6: Selects Head 6.
Beam: Selects the Beam.
<Move> button
