1.3.4. Noise
The CP-45F/V and the CP-45FS machine has a noise level not exceeding 80 dB with the
front and rear covers closed. The noise is measured at the upper surfaces of the front and
rear feeder bases while operating the equipment at 100% speed and driving all x-axis, y-
axis, and z-axis to the maximum stroke.
1.4. Electrical Specifications
1.4.1. Power requirements
Voltage
Single phase AC 220V ± 10 %
AC 100V / 110V / 120V / 200V / 220V/ 230V / 240V (shall be changed the
terminal of the transformer)
Power Consumption: 2.6 KVA (Maximum)
Frequency: 50 / 60 Hz

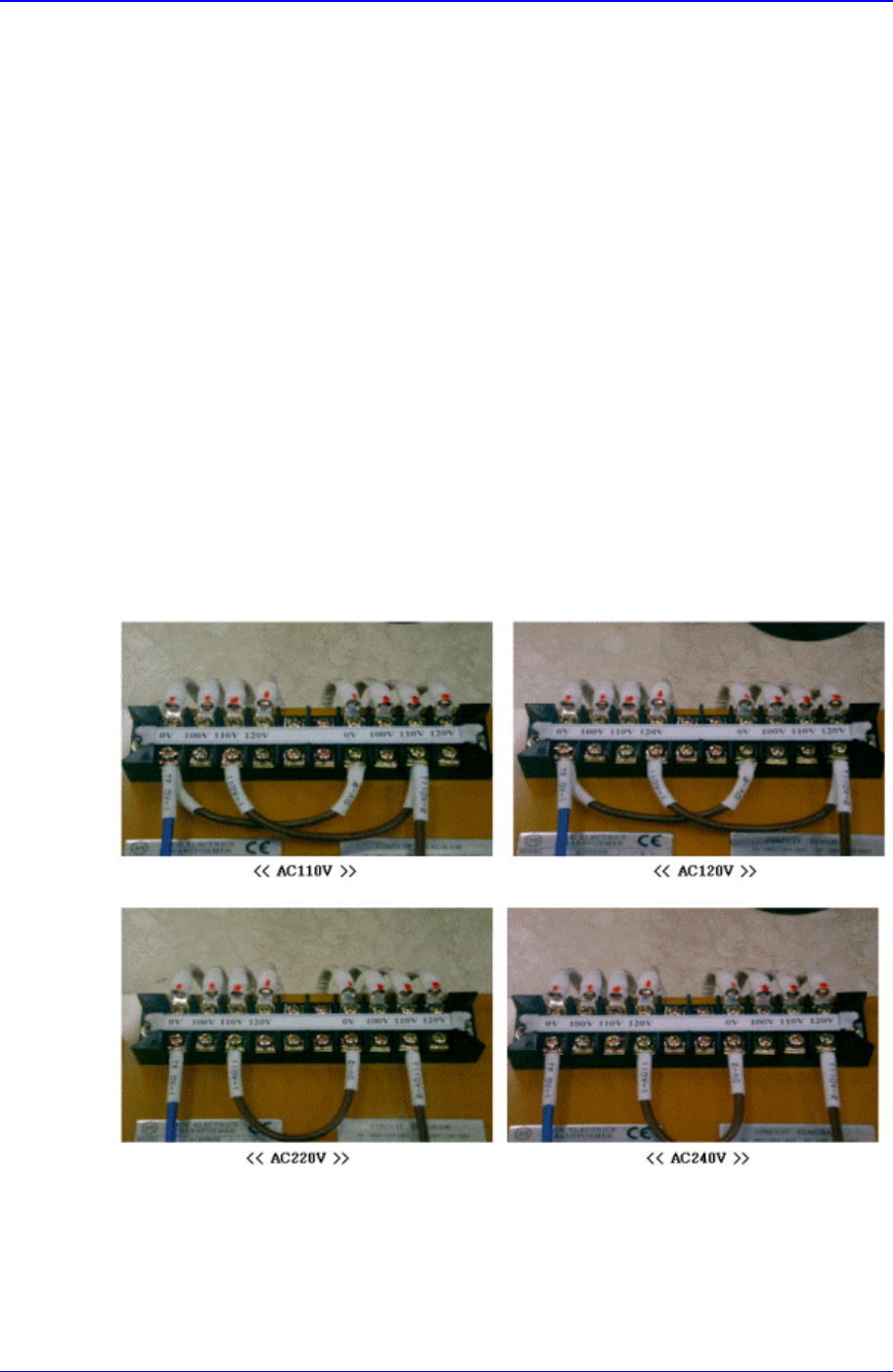

Figure 1-3. The solution for switching the power terminal connection of a transformer
Features and Scope of Equipment
1-9
The equipment power is properly connected according to the conditions for usage prior to
the shipment.
1.4.2. E
PU (External Programming Unit)
1.4.2.1. Software
EPU System Software
Protect Module
1.4.2.2. Hardware
Windows 98
CPU Intel Celeron™ over 733MHz
Over 10.2GB of HDD, IDE
Over 64MB of memory
CD-ROM 48x
3.5 inch FDD lea
Keyboard: Mini Keyboard (86 keys)
Mouse: Serial Mouse or PS/2 mouse
1.4.2.3. Display
Programming Monitor: 14 inch VGA Color (1024 × 768 dots)
1.4.3. HLC (Host Line Computer)
1.4.3.1. Software
VME, Windows 98
Danger
If unspecified voltage is used or power input is changed
improperly, fire could occur and a death from electric shock
could occur.
Change of power input must be done by a trained repair
and maintenance operator or our authorized C/S
personnel.
Memo
Samsung Component Placer CP-45F(V)/FS Operations Manual
1-10
Protect Module
1.4.3.2. Hardware
Windows 98
CPU Intel Celeron™ over 733MHz
Over 40GB of HDD, IDE
Hard Disk Rack
Over 64MB of memory
CD-ROM 48x
3.5 inch FDD lea
Keyboard: Mini Keyboard (86 keys)
Mouse: PS/2 mouse
1.4.3.3. Display
Programming Monitor: 14 inch VGA Color (1024 × 768 dots)
Teaching Monitor: 14 inch VGA Color (800 x 600 dot)
The specifications of the equipment can be altered without prior notice to improve the
product performance.
Memo
