Samsung Component Placer CP-45F(V)/FS Operations Manual
3-4
3.2. Standards for Lighting Signal Tower
This equipment comes with a signal tower for indicating the present status of the
equipment. The signal tower indicates the following:
Lighting of a red lamp
Indicates the stop status through self-diagnosis of the system. Warning sounds ring
continuously and messages are indicated as the red lamp is lighted.
Flashing of a red lamp
Indicates either the pressing of the <EMG> switch or the emergency stop status
through self-diagnosis of the system. Warning sounds ring continuously and
messages are indicated as the red lamp is flashed.
Lighting of a blue lamp
Indicates the standby status of operation.
Flashing of a blue lamp
Indicates either component shortage in the tray feeder or adsorption error. Warning
sounds ring continuously and messages are indicated as the yellow lamp is flashed.
Lighting of a green lamp
Indicates that this equipment is currently being operated automatically.
Flashing of a green lamp
Indicates temporary stop status. Automatic operation can be resumed by pressing the
<Start> switch.
Red
Blue
Green

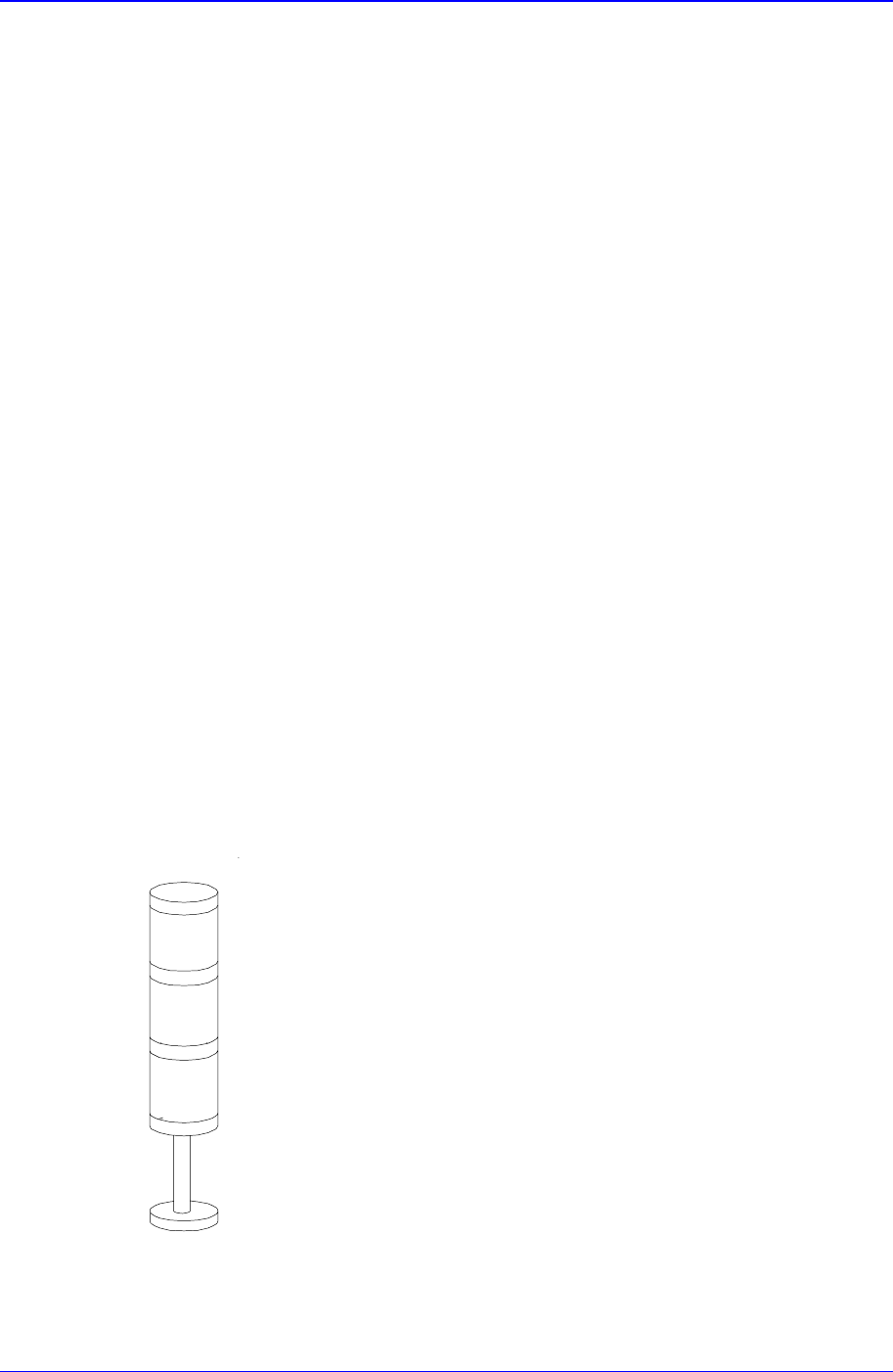

Figure 3-2. Signal Tower
Panel Operations
3-5
3.3. Button Manipulation of Teaching Box
A teaching box is used for manipulating the head, or returning to the original position. A
teaching box also can be used only when the yellow lamp in the signal tower. The buttons
on the teaching box are explained below:
FREE

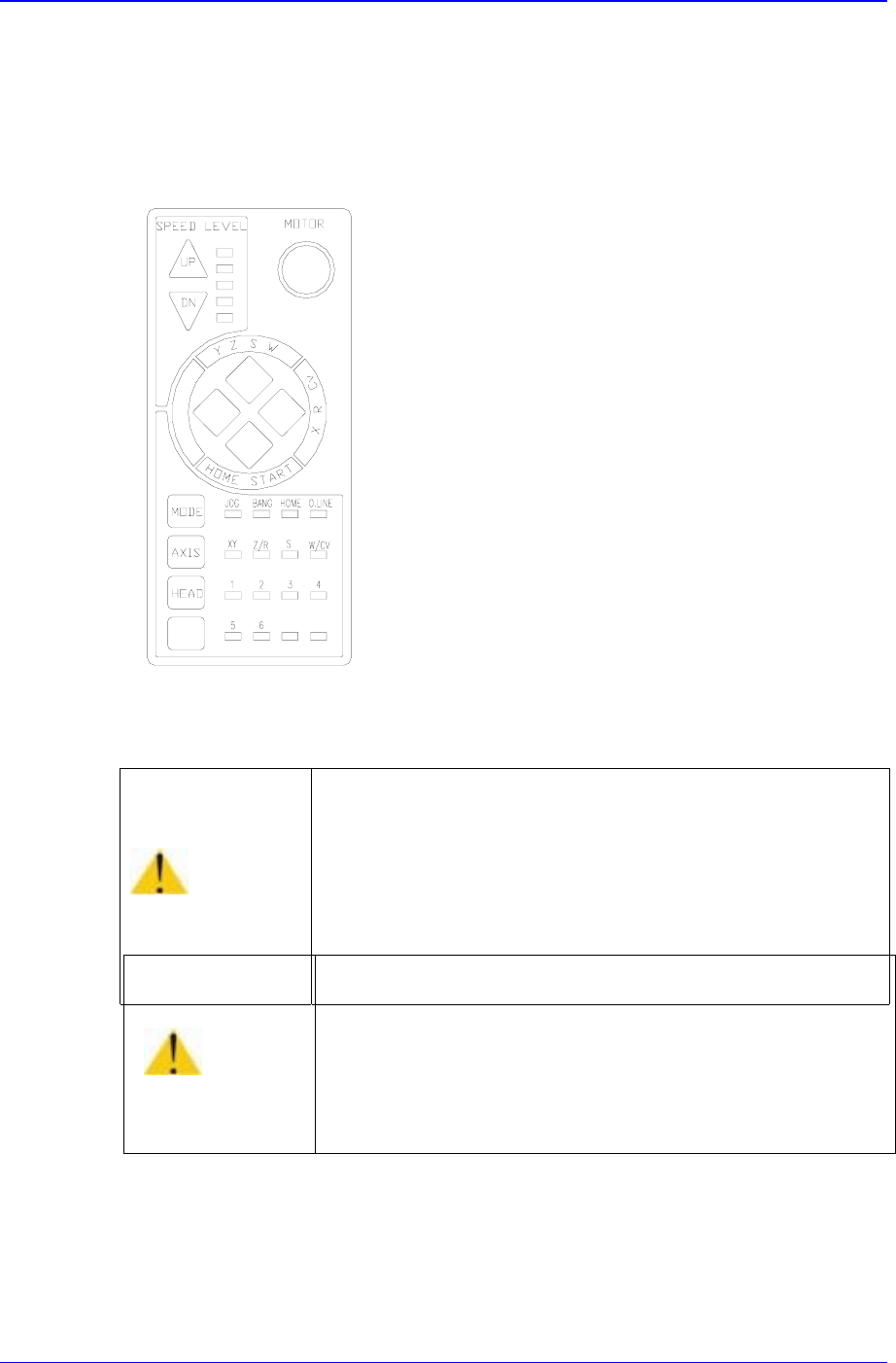

Figure 3-3. Teaching Box
S
peed level Up/Down
This selects operation speed in the jog mode. After the jog mod has been selected, the
equipment operation is speeded up if <Up> button is pressed, or slows down if
<Down> button is pressed. The operation speed can be selected in 5-steps.
Warning
During teaching, the operator or people near the operator
could be injured due to operation error or insufficient
checking of surroundings.
Before start teaching, check the device to teach one more
time, and check whether there is any worker near the
machine.
Caution
Placing a floppy disk near the area where the magnet is
attached on the back of Teaching Box could erase the
data in it.
Do not place a floppy disk near the area where the magnet
is attached on the back of Teaching Box.
Samsung Component Placer CP-45F(V)/FS Operations Manual
3-6
MOTOR FREE
In case of an emergency, press this button to stop the operation immediately. It shuts
off all power supplies except to the computer. It performs the same function as the
<EMG> on the operation panel of the main body.
◀▶▲ ▼
button
These buttons indicate the translational or rotational direction of movement or
rotation of each axis. Each mode or axis has different operation.
If Mode=Jog or Bang, Axis=XY have been selected:
▲
: The head part is moved in the +Y-direction.
▶
: The head part is moved in the +X-direction.
▼
: The head part is moved in the -Y-direction.
◀
: The head part is moved in the -X-direction.
If Mode=Jog or Bang, Axis=Z/R have been selected:
▲
: The nozzle is lifted in the +Z direction.
▶
: The nozzle is rotated in the clockwise direction.
▼
: The nozzle is lowered in the -Z direction.
◀
: The nozzle is rotated in the counterclockwise direction.
If Mode=Home has been selected
▲
: Ignored.
▶
: Ignored.
▼
: The head is moved to the original position (Return to home position).
◀
: Ignored.
Mode
Modes such as Jog, Bang, and Home are selected. As this button is pressed, LED for
indicating the corresponding mode is alternately turned on in the order of Jog
⇒
Bang
⇒
Home
⇒
Lights-out
⇒
Jog ... Each mode functions as follows:
Jog: Each axis is moved by this mode.
Bang: Each axis is moved by a minute distance by this mode.
Home: The original position (origin point) of each mode is found by this mode.
Axis
