Samsung Component Placer CP-45F(V)/FS Operations Manual 11-74 Removes the balls in the selected area. When the balls in the selected area ar e removed, the screen looks as follows. Figur e 1 1-46 “ Ball Gap of BGA compon…
PCB Edit Command
11-73

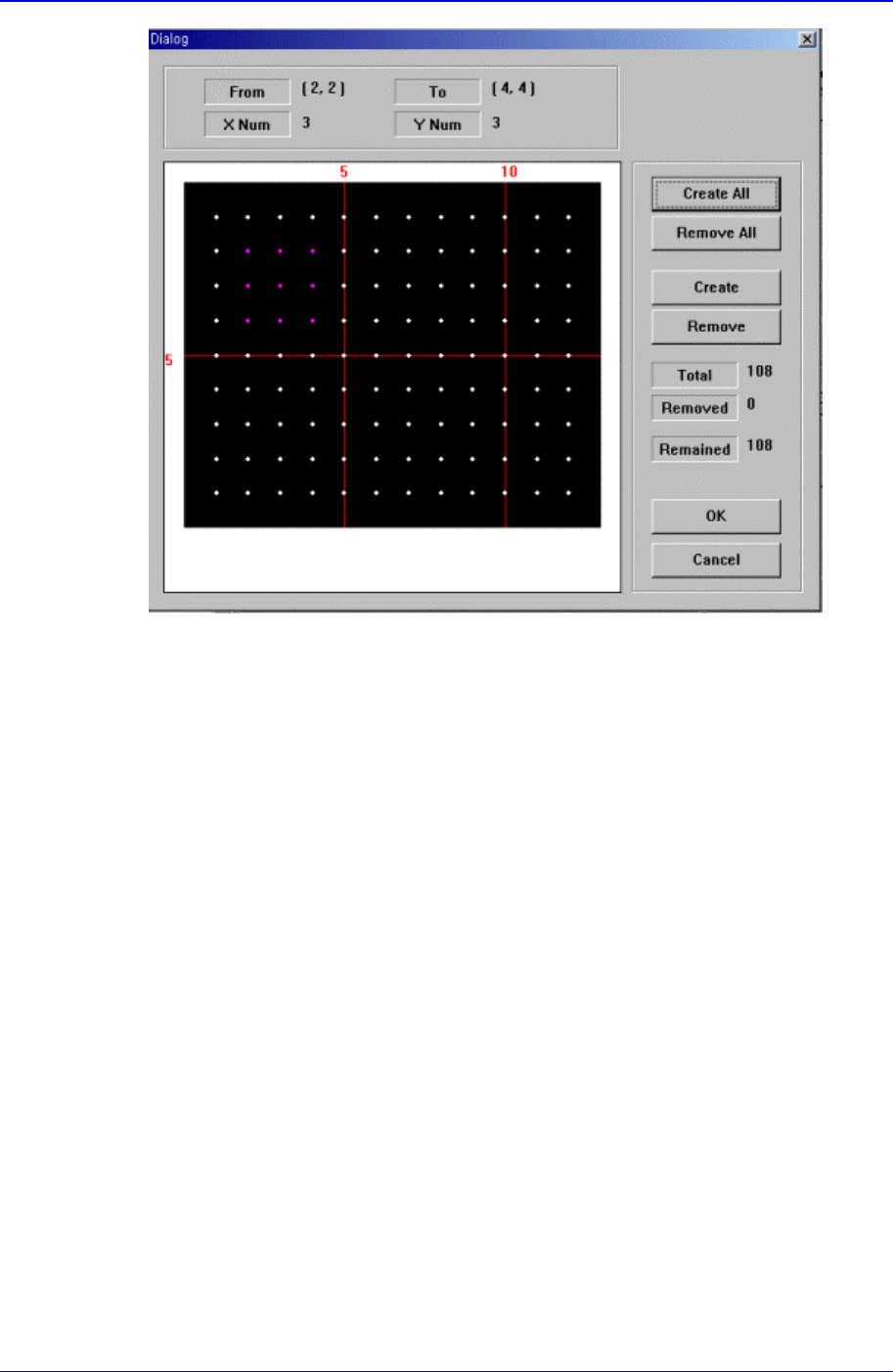

Figure 11-45 “Ball Gap of BGA component-when there is a selected area” dialog box
<Create All> button
Creates all balls.
<Remove All> button
Removes all balls.
<Create> button
Creates balls in the selected area.
<Remove> button
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-74
Removes the balls in the selected area.
When the balls in the selected area are removed, the screen looks as follows.

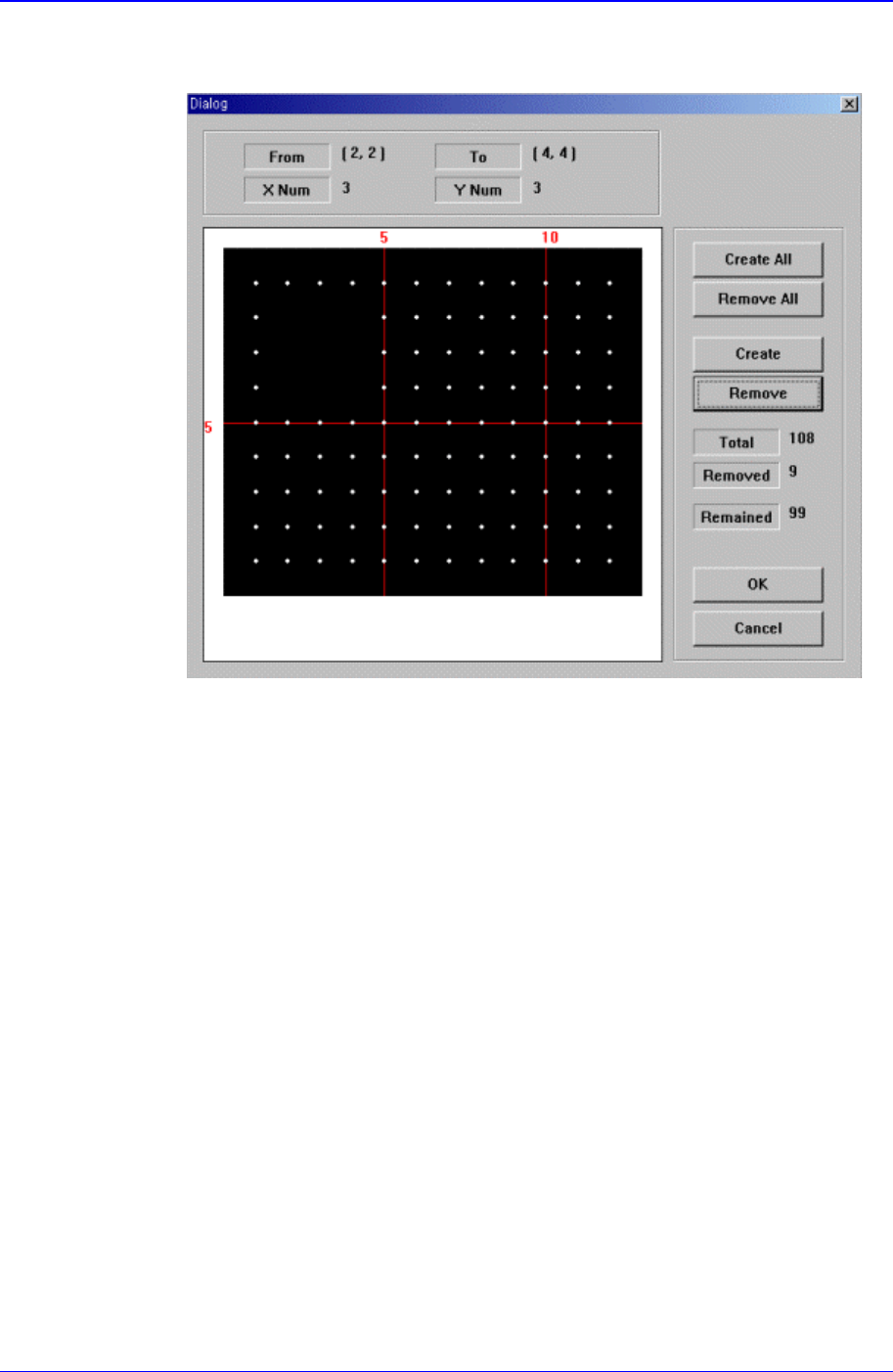

Figure 11-46 “Ball Gap of BGA components-when the balls in the selected area are
removed” dialog box
<OK> button
Saves the set ball gap status and closes the dialog box.
<Cancel> button
Closes the dialog box without saving the set ball gap status.
11.2. Feeder [F4]
The <Feeder> command edits data related to tape feeder, stick feeder, and tray feeder.
The user can specify the part to be installed on each feeder, teach pickups position, and
test component pickups. When this command is selected, the initial screen is for the tape
feeder screen.
11.2.1. Feeder Base
When the feeder base is selected, the following dialog box is displayed and the data on
feeder base can be edited.
PCB Edit Command
11-75

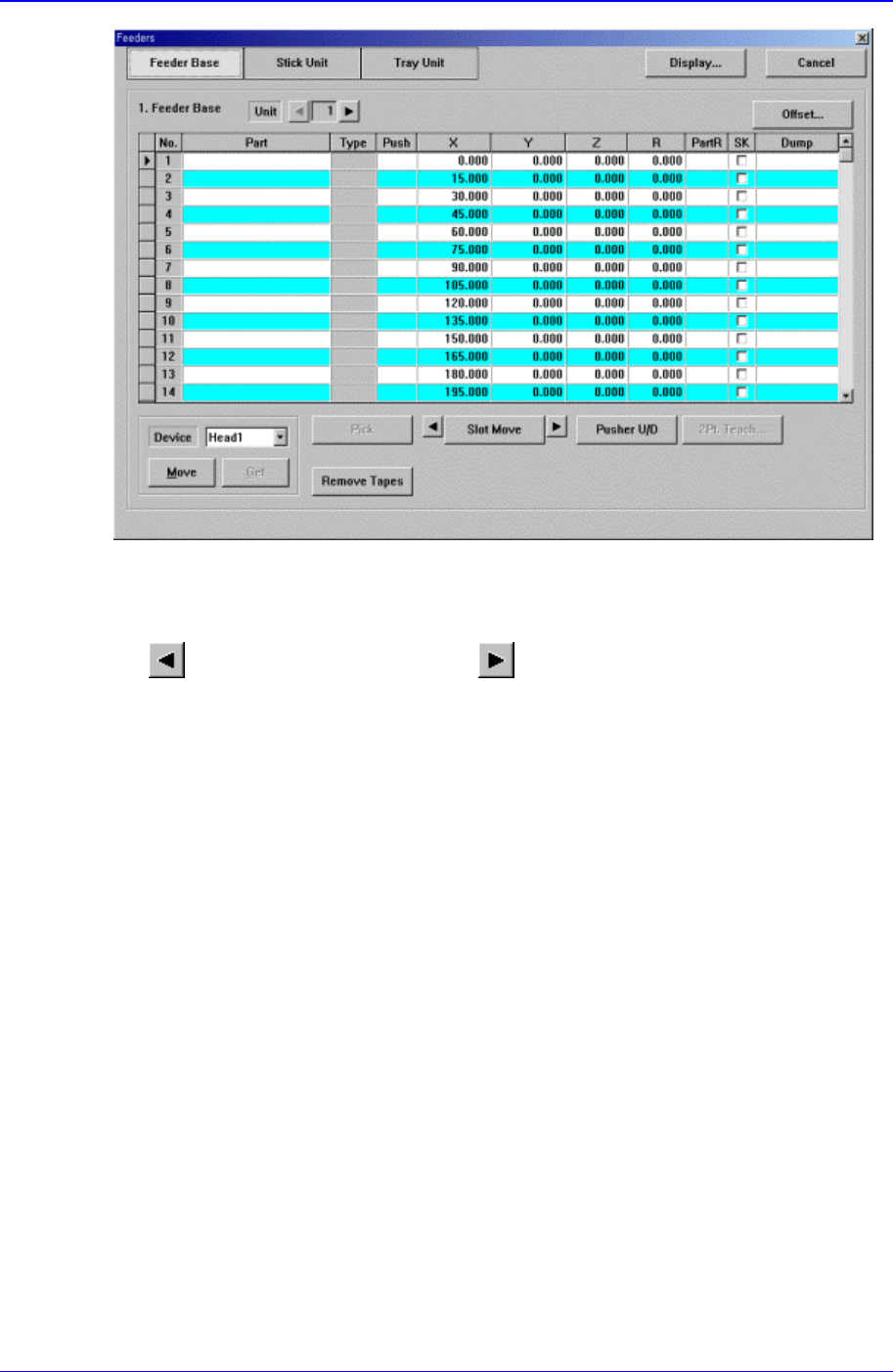

Figure 11-47.. “Feeder : Feeder Base” dialog box
<Unit> group
Select the feeder base unit to edit.
button selects the previous unit, button selects the next unit.
<1. Feeder Base> group
Display the status of various devices installed on the feeder base including the feeder
type and edit the installation position.
<No> column
A serial number of the feeder base slot. Air pressure type feeder base has 52 slots.
<Part> column
