Diagnosis Command 14-1 1 Displays the status of command handling.  <Execution T ime> Static box Displays the time taken to handle the command.

Samsung Component Placer CP-45F(V)/FS Operations Manual

14-10

14.6. Tray [F7]

Checks communication with the tray feeder. When this button is clicked on, the following

dialog box is displayed.

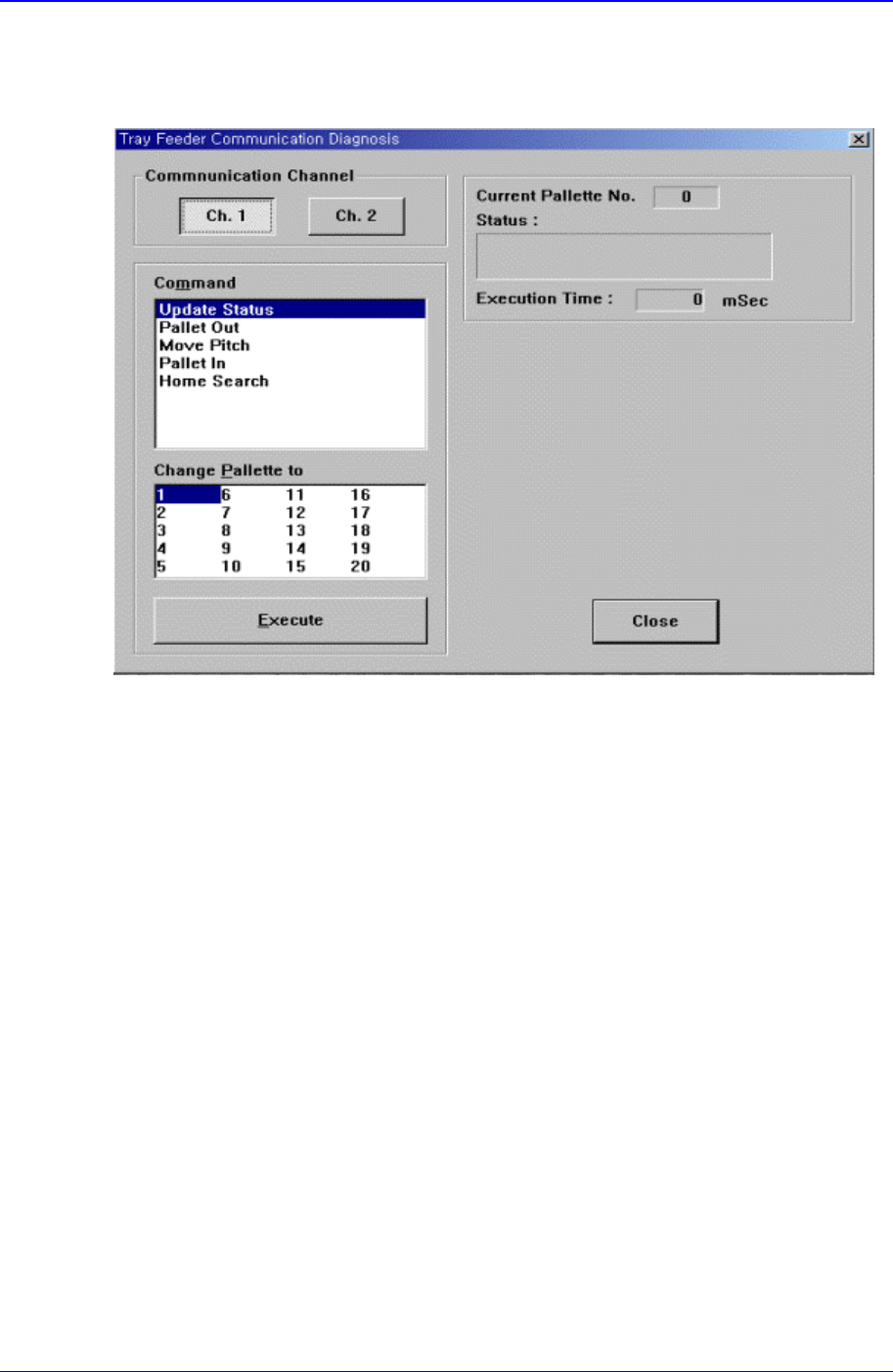

Figure 14-11. “Diagnosis :Tray Feeder Communication Diagnosis” dialog box

 <Communication Channel> group

Select the communication channel to which the tray feeder is connected.

Ch. 1: Selects RS-232C communication Port1.

Ch. 2: Selects RS-232C communication Port2.

 <Change Palette to> combo box

Select the palette number to change.

 <Command> combo box

Select the command to transmit to the tray feeder. Available command types are as

follows.

Update Status: Updates the status.

Palette Out: Outputs the selected palette from the tray magazine.

Move Pitch: Locates the selected palette at the entrance of tray magazine output.

Palette In: Brings the selected palette into the tray magazine.

Home Search: Moves the tray feeder to Home.

 <Execute> button

Transmits the selected command to the tray feeder.

 <Current Palette No.> Static box

Displays the number of the palette currently taken out.

 <Status> message box

Diagnosis Command

14-11

Displays the status of command handling.

 <Execution Time> Static box

Displays the time taken to handle the command.
