V iew Commands 9-3 Select the speed level for axis transfer . A vailable speed levels are as follows. 1: Selects the fastest level of speed. (Fastest) 2: Selects the fast level of speed. (Fast) 3: Selects the middle leve…

Samsung Component Placer CP-45F(V)/FS Operations Manual
9-2

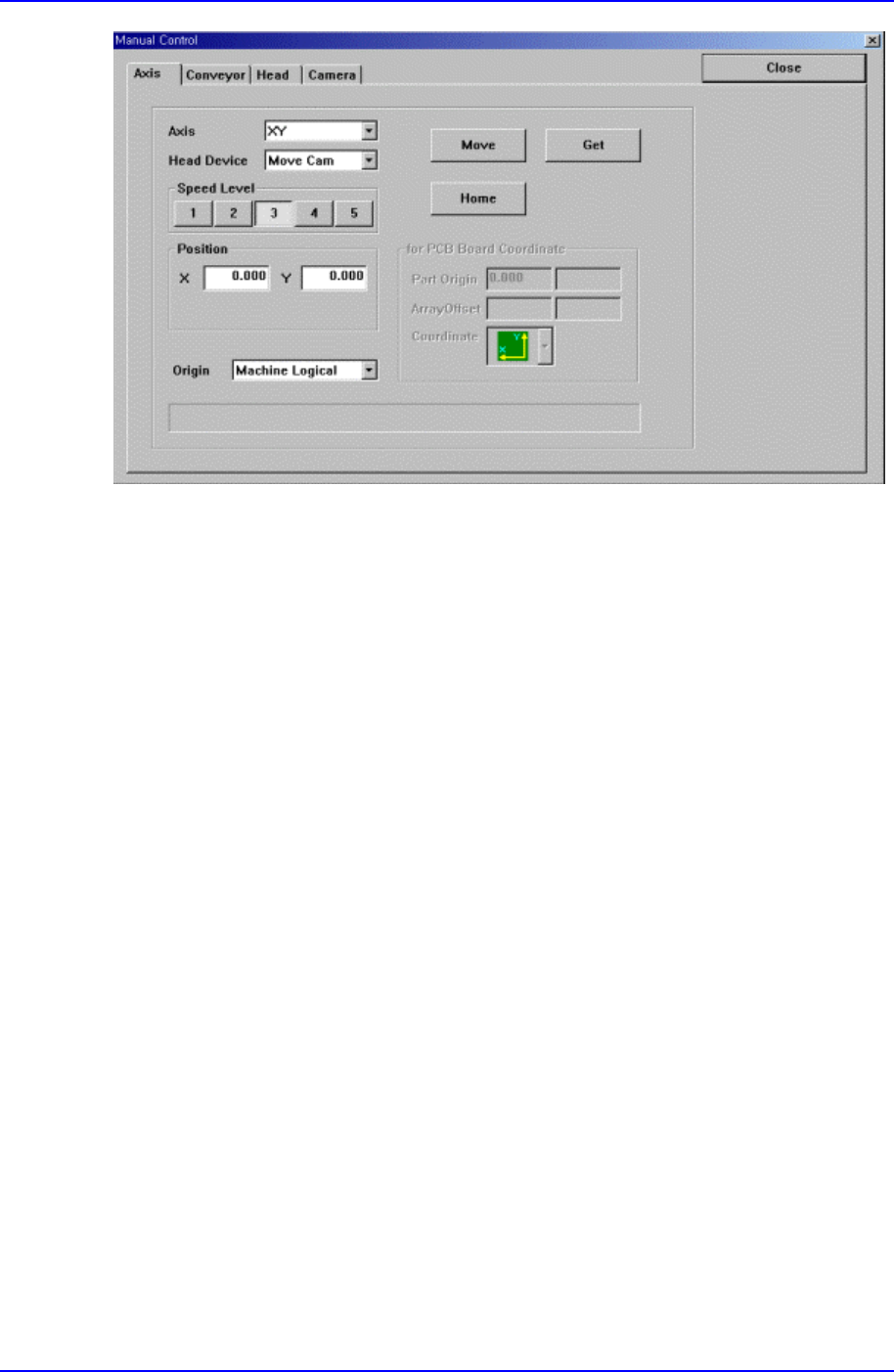

Figure 9-2. “Manual Tools – Axis Moving” dialog box
Axis combo box
Select the axis to move. Available axes are as follows.
XY: Selects XY axis.
Z: Selects the Z axis of the head.
R: Selects the R axis of the head.
Mirror: Selects the mirror axis of the fly camera.
Width: Selects the axis of the conveyor width.
<Head Device> combo box
To move to the axis selected in the <Axis> combo box or to read in the position,
select the corresponding device. Available devices are as follows.
Move Cam: Selects Teaching Camera.
Head1: Selects Head1.
Head2: Selects Head2.
Head3: Selects Head3.
Head4: Selects Head 4.
Head5: Selects Head5.
Head6: Selects Head6.
Beam: Selects Beam.
<Speed Level> group

View Commands
9-3
Select the speed level for axis transfer.
Available speed levels are as follows.
1: Selects the fastest level of speed. (Fastest)
2: Selects the fast level of speed. (Fast)
3: Selects the middle level of speed. (Middle)
4: Selects the slow level of speed. (Slow)
5: Selects the slowest level of speed. (Slowest)
<Position> group
To move the axis or to read in the position of the current axis, display the position
value. The displayed position value differs according to the axis selected in <Axis>.
The position values are as follows.
X: The position value of X axis
Y: The position value of Y axis
<Origin> combobox
To move or to read in the current position of the axis, select the origin. Available
origins are as follows.
Machine Logical: Selects the origin of the equipment as the origin.
FeederBase Front (1): Selects the origin of the front feeder base as the origin.
FeederBase Rear (2): Selects the origin of the rear feeder base as the origin.
PCB Bad Mark: Selects the bad mark of the PCB as the origin.
PCB Array#1: Selects the origin of the Array PCB1 as the origin.
Tray Feeder #1: Selects the origin of the Tray Feeder1 as the origin.
Tray Feeder #2: Selects the origin of Tray Feeder2 as the origin.
ANC#1: Selects the origin of ANC1 as the origin.
ANC#2: Selects the origin of ANC2 as the origin.
<Message>
Displays the information generated during the manipulation of axis.
<Move> button
Moves the axis to the value specified in the <Position> group.
<Get> button
Reads in the position of the current axis and displays it in the <Position> group.

Samsung Component Placer CP-45F(V)/FS Operations Manual
9-4
<Home> button
Moves the axis to the Home position
<for PCB Board Coordinate> group
It is activated when “PCB Array#1” is selected in the <Origin> combo box.
<Part Origin> edit box
Enter the Part Origin of PCB.
<Array Offset> edit box
Enter the origin of Array PCB1.
<Coordinate> combo box
Select the PCB coordinate system. Available coordinate systems are as follows.
Left-Up : Based on the front of equipment, it is a coordinate system in
which the X axis increases to the left and the Y axis increases to the top
Right-Up : Based on the front of equipment, it is a coordinate system in
which the X axis increases to the left and the Y axis increases to the top.
Left-Down : Based on the front of equipment, it is a coordinate system in
which the X axis increases to the left and the Y axis increases to the top.
Right-Down : Based on the front of equipment, it is a coordinate system in
which the X axis increases to the left and the Y axis increases to the top.
