Samsung Component Placer CP-45F(V)/FS Operations Manual
11-100
Converts the step data created by this equipment into other format(SSA Format)
ASCII File. When this button is clicked on, the following dialog box is displayed.
When the “Save” button is clicked on after the ASCII File name has been set, converts
the step data into SSA format and saves the data under the set file name.
<Cancel> button
Cancels the edited data.
Caution
If you move to another screen while editing the “ Step”
dialog box, the edited content is saved automatically.
Production Command
12-1
Chapter 12. Production Command
The production command is composed of nine submenus; Start, Stop, Cont., Finish, T/F
Cnt, PCB D/L, Plc. Info, Sts. Info and Feeder Monitor.
This command performs the function of monitoring PCB (Printed Circuit Board)
placement operation.
Figure 12-1. When the Production command is selected

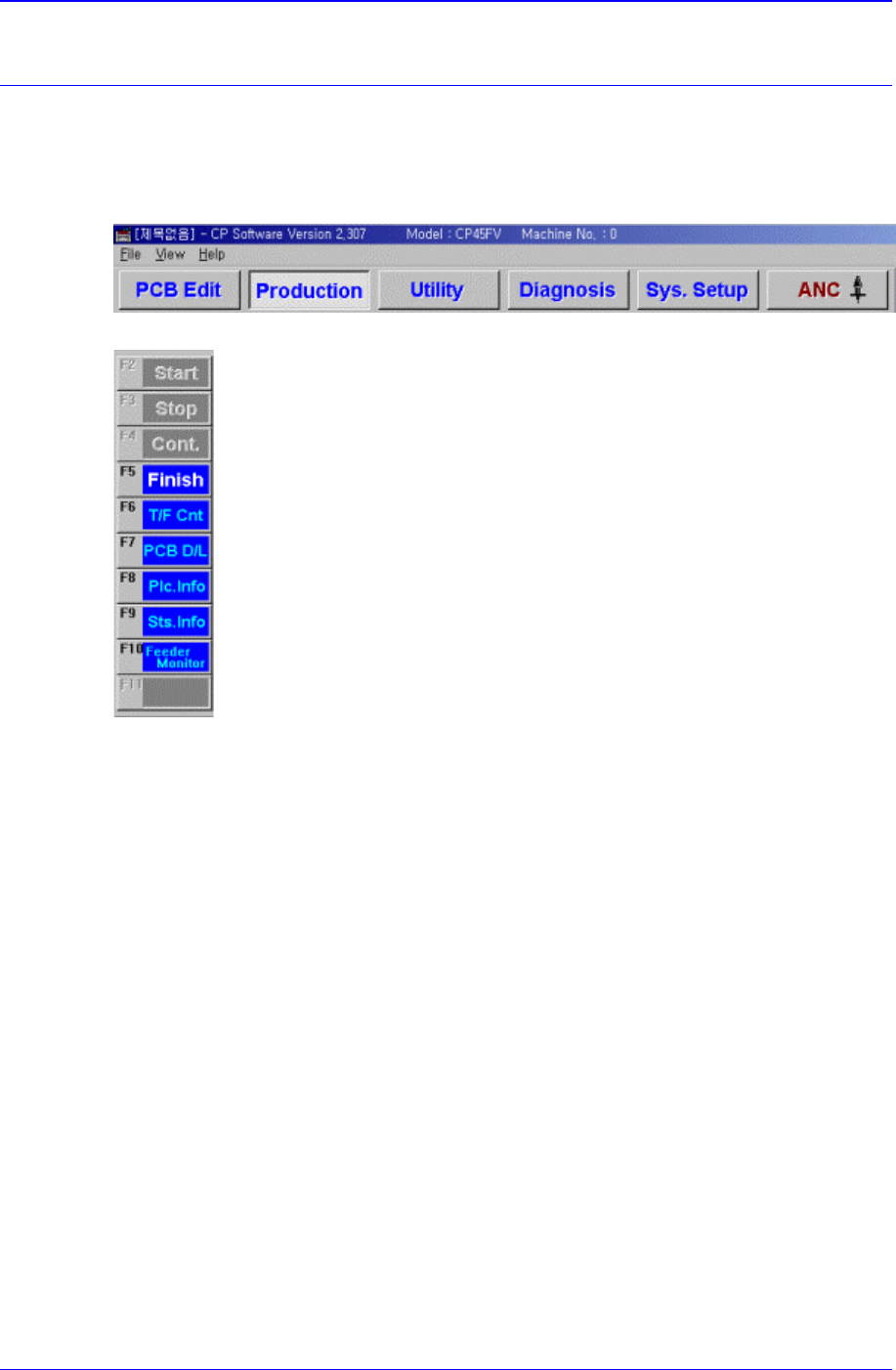

Figure 12-2. Submenus of the Production command(Initial status)
12.1. Production Main
When the production button is clicked on, the following screen is displayed.
Samsung Component Placer CP-45F(V)/FS Operations Manual
12-2
Figure 12-3. “Production” Main screen (Initial screen)
When the submenu, PCB D/L (F7) is clicked on, transmits the PCB data edited to the
equipment, and the following screen is displayed.
<Board Description > group
Displays the data related to PCB board.
<Customer> Static box
Displays the customer name.
<Board Name> Static box
Displays the PCB name.
<Total Steps> option button
