Samsung Component Placer CP-45F(V)/FS Operations Manual
11-78
Memo
Definition on component supply angle and pickups angle
Supply angle (In the case of user):
The supply angle is based on the angle at which a component is supplied to the feeder. It
is the angle when the component is supplied from the feeder regardless of the feeder
being arranged in the front or at the rear.
0° 90° 180° 270°
<SK> column
When the tape feeder is installed in the corresponding slot, select whether to pick
up the component supplied from the tape feeder or not.
To pick it up leave the check box as it is, and check the check box not to pick it
up.
<Dump> column
When the tape feeder is installed in the corresponding slot, select the dump box
for the component supplied from the tape feeder. Available dump boxes are as
follows.
System Dump: the dump box installed in the system, it is installed in the front of
the conveyor of the equipment.
User Dump: the dump box set in the system by the user. The location in the
system must be set.
<Pick> button
Executes component pickups from the tape feeder installed on the current row of the
grid. A device must be selected first. When pickups is successful, the following
dialog box is displayed.
PCB Edit Command
11-79
<Move to Fix Camera> button
It is activated only when the corresponding component is aligned by the vision
camera and the align camera is the fix camera. When this button is clicked on,
the head block is moved to the fix camera..
<Part Align> button
Executes alignment of the corresponding component.
<Dump> button
Dumps the corresponding component to the dump box.
<Close> button
Closes the dialog box.
<Edit Part Info> button
Shows the Part Edit dialog for the corresponding component.
<Slot Move> button
Select whether to move the selected device by slot or by slot with tape feeder
installation. Whenever this button is clicked on, “Slot Move” and “Feeder Move”
alternates.
<Move Prev>
button
If <Slot Move> is set to “Slot Move”, moves the selected device to the slot on the
previous line of the current line in the grid.
If <Slot Move> is set to “Feeder Move”, moves the selected device to the slot on the
first line with tape feeder installation among the lines before the current line in the
grid.
<Move Next>
button
If <Slot Move> is set to “Slot Move”, moves the selected device to the slot on the
next line of the current line in the grid.
If <Slot Move> is set to “Feeder Move”, moves the selected device to the slot on the
first line with tape feeder installation among the lines after the current line in the grid.
<Pusher U/D> button
Moves up or down the air pressure cylinder in the slot on the current line in the grid.
When the feeder driving cylinder is on, the driving lever of the feeder is lifted, and
the shutter at the top of the feeder opens. Pickups point teaching is executed in this
state.
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-80
<2Pt. Teach…> button
When teaching the tape feeder pickups point, finds the center point by teaching two
corner points at opposite angles of the pocket containing the component. When this
button is clicked on, the following dialog box is displayed.

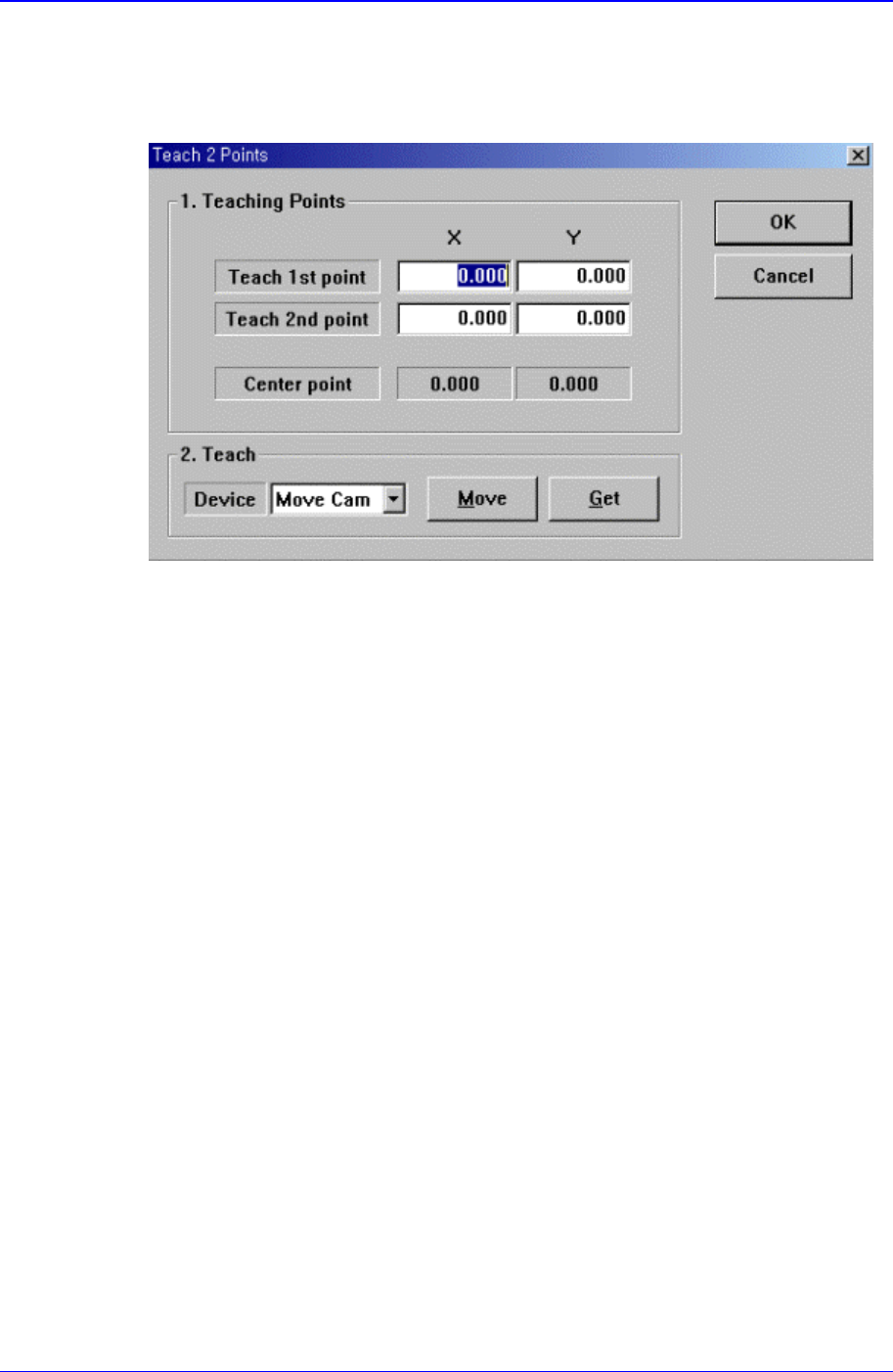

Figure 11-50. “Feeder :2 point teaching in the Feeder Base” dialog box
<1. Teaching Points> group
Set the position of two corner points to find the center point.
Teach 1st point: Set the first point.
Teach 2nd point: Set the second point.
Center point: Finds the center point from the two corner points and displays it.
<2. Teach> group
Used to move the XY axis of the equipment to the specified position or to read in
the current position of the XY axis.
<Device> combo box
To move the XY axis or to read in the current position, select the
corresponding device. Available devices are as follows.
Move Cam: Selects Teaching camera.
Head1: Selects Head1.
Head2: Selects Head2.
Head3: Selects Head3.
Head4: Selects Head4.
Head5: Selects Head5.
Head6: Selects Head6.
<Move> button
Moves the XY axis to the device selected in <Device>. Before executing
“Move”, the cell in the grid corresponding to the desired position must be
clicked on.
<Get> button
Reads in the current position of the XY axis of the device selected in
