PCB Edit Command
11-85
To move the XY axis or to read in the current position, select the corresponding
device. Available devices are as follows.
Move Cam: Selects teaching camera.
Head1: Selects Head1.
Head2: Selects Head2.
Head3: Selects Head3.
Head4: Selects Head4.
Head5: Selects Head5.
Head6: Selects Head6.
<Move> button
Moves the XY axis to the device selected in <Device>. Before executing
“Move”, the edit box corresponding to the desired position must be clicked on.
<Get> button
Reads in the current position of the XY axis of the device selected in <Device>.
Before executing “Get”, the edit box corresponding to the desired position must
be clicked on.
<OK> button
Sets the obtained center point as the new pickups point and closes the dialog box.
<Cancel> button
Ignores the obtained center point and closes the dialog box.
<Device> combo box
To move the XY axis or to read in the position, select the corresponding device.
Available devices are as follows.
Move Cam: Selects Teaching Camera.
Head1: Selects Head1.
Head2: Selects Head2.
Head3: Selects Head3.
Head4: Selects Head4.
Head5: Selects Head5.
Head6: Selects Head6.
<Move> button:
Moves the XY axis to the device selected in <Device>. Before executing “Move”, the
cell in the grid corresponding to the desired position must be clicked on.
<Get> button:
Reads in the current position of the XY axis of the device selected in <Device>.
Before executing “Get”, the cell in the grid corresponding to the desired position must
be clicked on.
<Install to Feeder Base> group
When installing stick unit to the feeder base, set the feeder base unit and slot number
to install.
<Feeder Base>
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-86
Displays the feeder base where the corresponding stick unit is installed currently.
The numbers displayed are as follows.
0: Not installed on any feeder base.
1: Installed on Feeder Base(Front Feeder Base)1.
2: Installed on Feeder Base(Rear Feeder Base)2.
<Slot No.>
Displays the slot number of the feeder base where the corresponding stick unit is
installed currently. The numbers displayed are as follows.
0: Not installed in any slot.
1 - 52: Installed in the corresponding number slot.
<Change…> button
In the case of installing stick unit to the feeder base, change the feeder base unit
and slot number to install. When this button is clicked on, the following dialog
box is displayed.

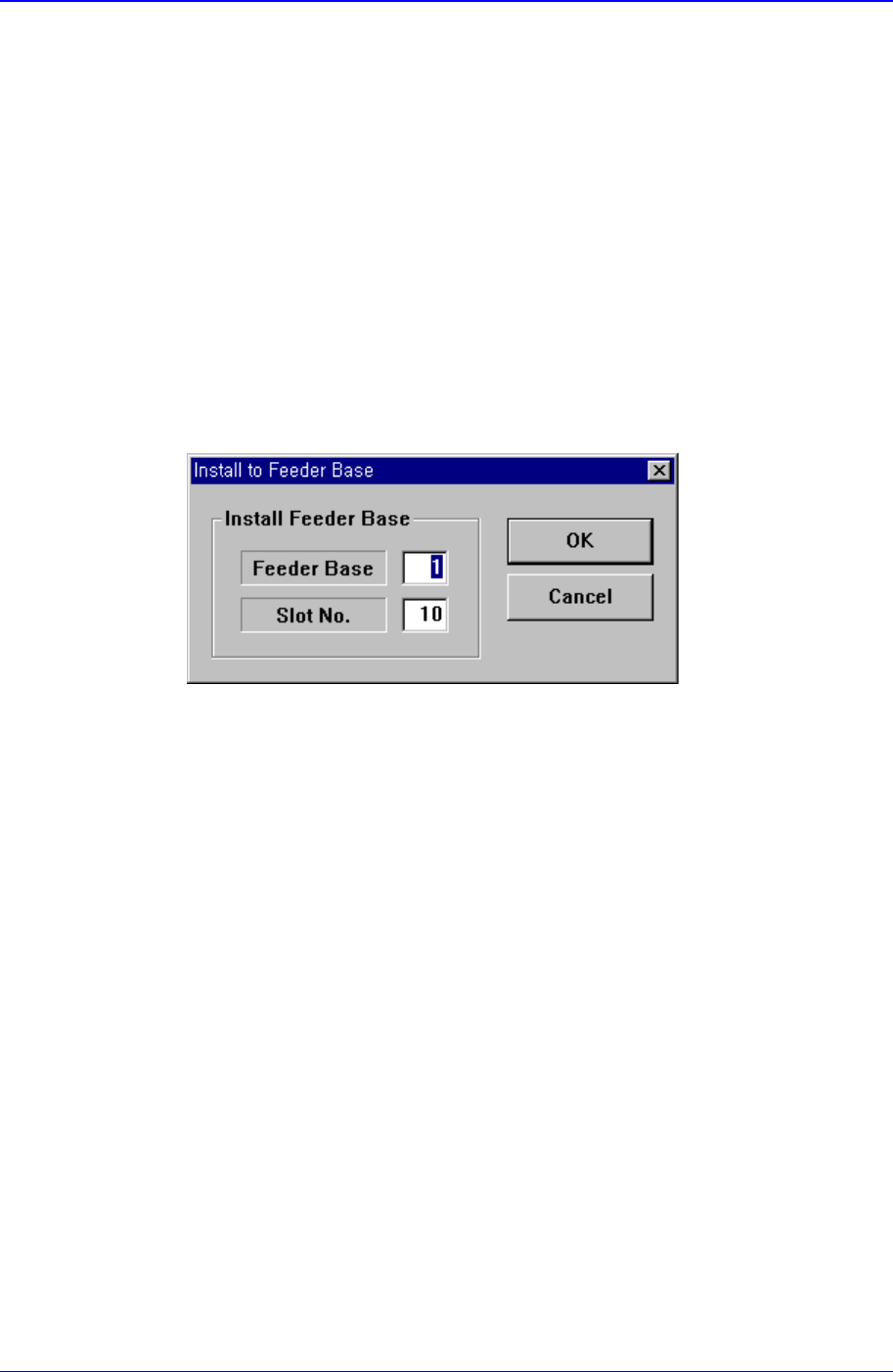

<Install Feeder Base> group
Feeder Base
Displays the feeder base where the corresponding stick unit is installed
currently. The numbers displayed are as follows.
0: Not installed on any feeder base.
1: Installed on Feeder Base(Front Feeder Base)1.
2: Installed on Feeder Base(Rear Feeder Base)2.
Slot No.
Displays the slot number of the feeder base where the corresponding stick
unit is installed currently. The numbers displayed are as follows.
0: Not installed on any slot.
1 - 52: Installed in the corresponding number slot.
11.2.3. Tray Feeder
Set various data for tray feeders.
When “Tray Unit” is selected, the initial screen looks as follows.
PCB Edit Command
11-87
Figure 11-53. “Tray Unit” dialog box
<Unit> group
Select the tray unit to edit.
button selects the previous unit, button selects the next unit.
<Unit Type>
Displays the type of selected tray unit. The type of the corresponding tray unit should
be set in the system.
<Use 2 Tray> check box
Select whether to use 2 plate Tray.
To use 2 Tray, check the check box, and not to use 2 plate Tray, do not check the
check box.
<Tray> group
Create and edit data according to the type of the corresponding tray. The above dialog
box is the dialog box displayed when <Type> is set to “Single”.
<No> column
A serial number of the tray unit tray. Basically, “Single” has 5, “FW-20F” and
“FW-20S” have 20 trays.
<Part> column
