Utility Command

13-5

 <Clear> button

If the file size of a *.log file is very big, deletes the data saved previously.

13.5. Bypass[F8]

The < Bypass> command is used to bypass a PCB on the conveyor without carrying out

placement operation. When this command is selected, the following dialog box is

displayed and shows it is in the PCB Bypass status.

If the head is above the conveyor, the PCB sensing sensor gets affected. Therefore, move

the head out of the conveyor and execute the command.

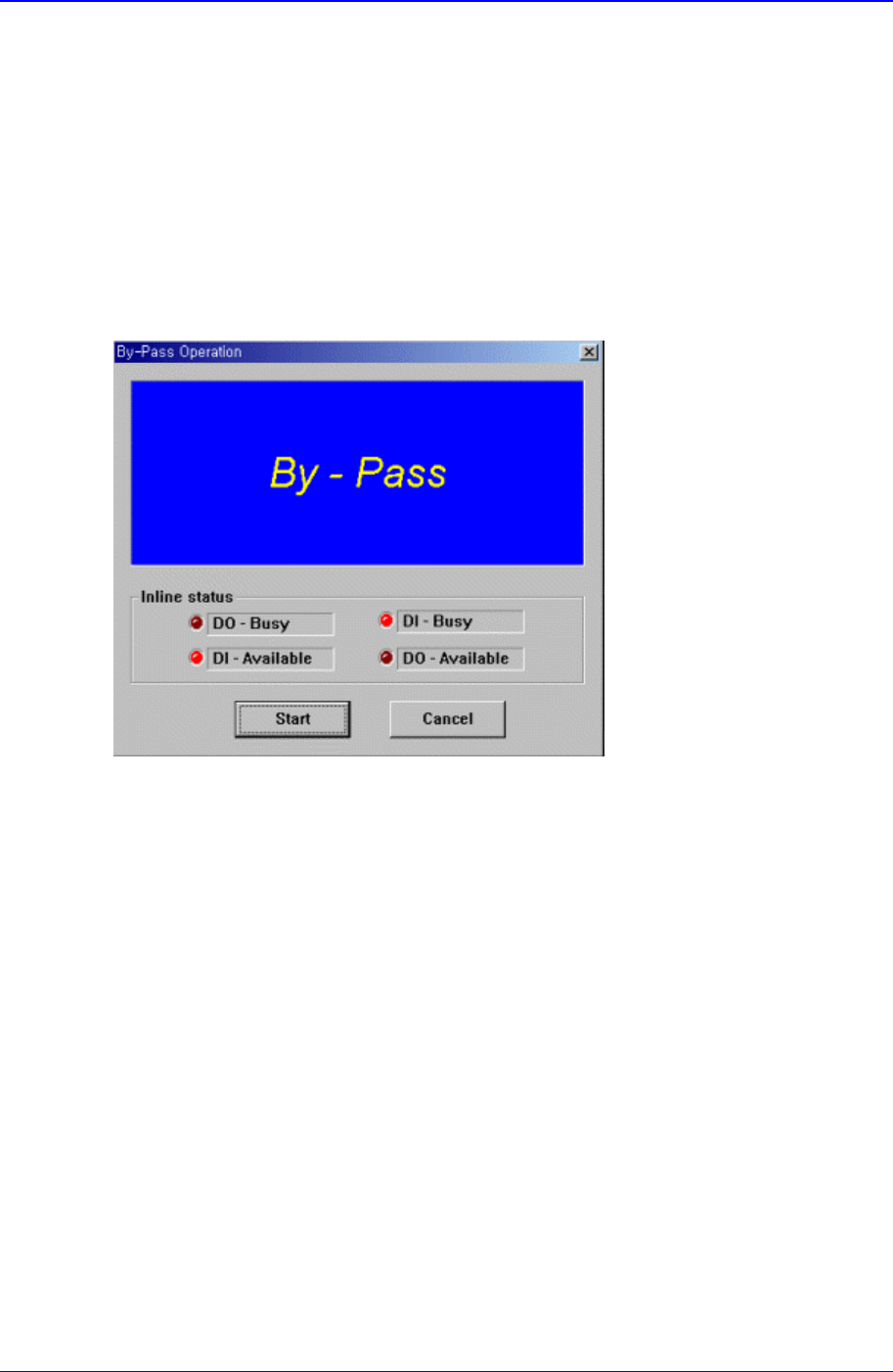

Figure 13-7. “By-pass Operation” dialog box

When the <Start> switch on the main body of this equipment is pressed, starts the PCB

bypass operation. When the <Stop> switch or <Reset> switch on the main body of this

equipment is pressed, cancels the PCB bypass operation status and closes the dialog box

13.6. WarmUp[F9]

The <WarmUp> command is used to warm up each axis after power supply. When this

command is selected, the following dialog box is displayed.

Samsung Component Placer CP-45F(V)/FS Operations Manual

13-6

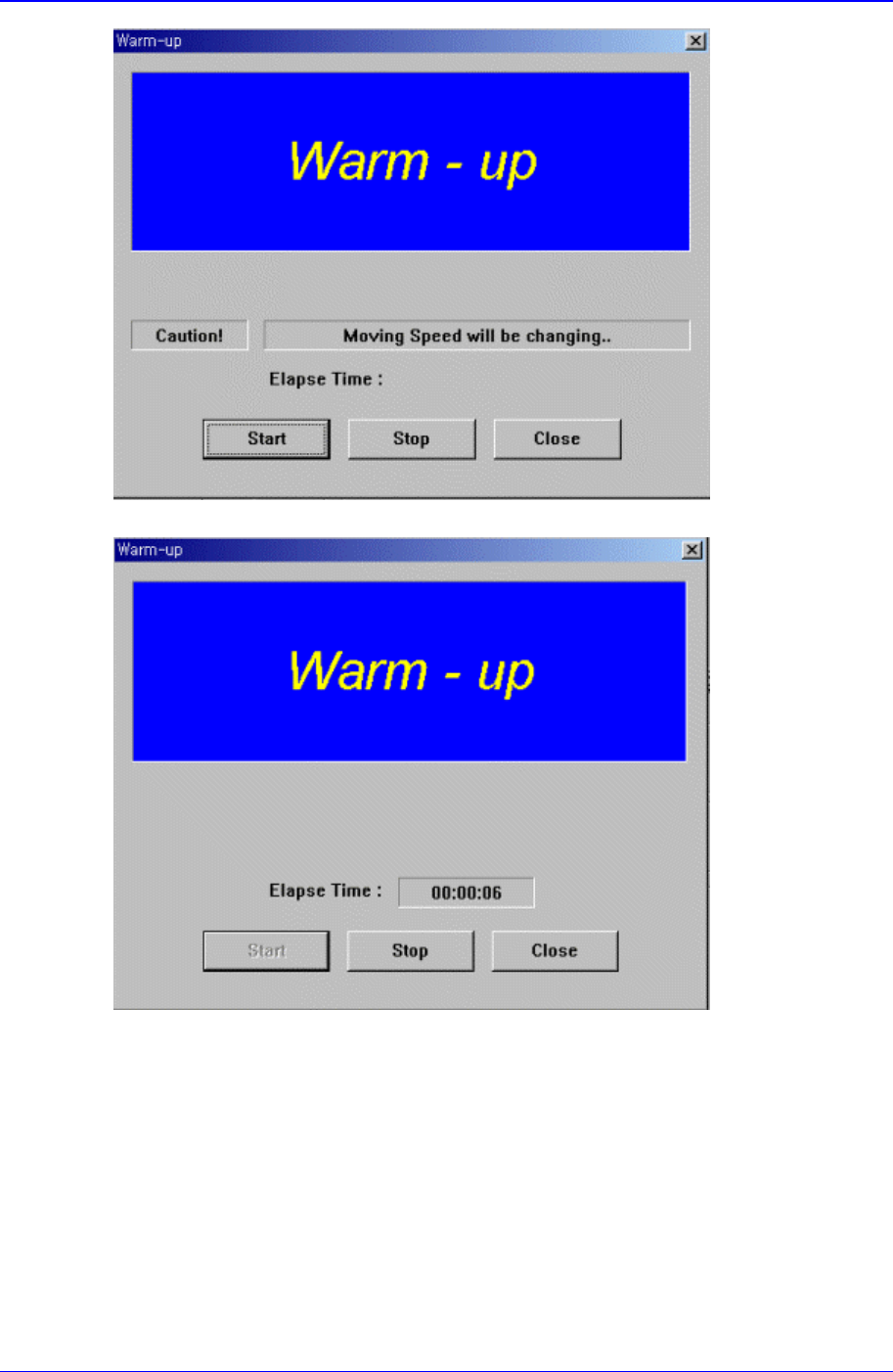

Figure 13-8. “Warm-Up” dialog box

Figure 13-9. “Warm-Up” dialog box, After pressing the Start Button

 <Start> button

Starts the warm up operation. When this button is clicked on, starts the warm-up

operation and the elapsed time is displayed in the “Warm-up” dialog box. When this

button is clicked on again, stops the warm up operation and closes the “Warm-up”

dialog box.

 <Start> button

When this button is clicked on, stops the <Warm-up> operation.

 <Close> button

Closes the dialog box.

Utility Command

13-7

Caution

To raise the level of placement precision, Warming UP must

be done.

To raise the level of placement precision, be sure to carry out

warm up before operating the machine.
