PCB Edit Command 1 1-53 Set the width of lead. <Lead Pitch> edit box Set the lead pitch <Lead Foot> edit box Set the length of the lead that touches the surface. <Lead Length> edit box Set the len…
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-52
Finds out the component align data automatically.
11.1.9. SOP2 component data setting
Set the align data for SOP2 components.
Figure 11-34 “Align Type = Vision, Package Group = SOP2” dialog box
<Camera No.> combo box
Select the camera to recognize the component.
<Light Control> button
Set the light for the camera to recognize the component.
<Size> group
Set the align size.
<Lead Num> edit box
Set the number of leads on a side.
<Missing Pin Num> edit box
Set the number of empty leads at the center of the lead column(group).
<Total X> edit box
Display the size of the whole component in X direction. When <Body X> and
<Lead Length> are determined, it is calculated and displayed. ( <Body X> +
<Lead Length> * 2)
<Body X> edit box
Set the size of component body in X direction.
<Body Y> edit box
Set the size of component body in Y direction.
<Lead Width> edit box
PCB Edit Command
11-53
Set the width of lead.
<Lead Pitch> edit box
Set the lead pitch
<Lead Foot> edit box
Set the length of the lead that touches the surface.
<Lead Length> edit box
Set the length of the lead shown in the align camera.
<Align Z> edit box
Set the height for recognition. To recognize above the component base, set -
value, to recognize below the component base, set + value.
<Option> group
Set the align option data.
<Area Margin> edit box
Set the limit for the image to be off the center of the screen when the component
is recognized. For example, if this value is 5mm, the component image should be
within 5mm of the center of the screen.
<Tolerance Tangential> edit box
Set the allowance tolerance when the lead is pushed to the side. Set it in
percentage against <Lead Pitch>.
<Outline> button
Displays the outer edges of the component on the vision monitor by using the set
align data.
<Move…> button
Performs component pickups or moves to the fix camera.
<Test> button
Tests component recognition by using the set align data.
<Auto Teach> button
Finds out the component align data automatically.
11.1.10. SOJ2 component data setting
Set the align data for SOJ2 components.
Samsung Component Placer CP-45F(V)/FS Operations Manual
11-54

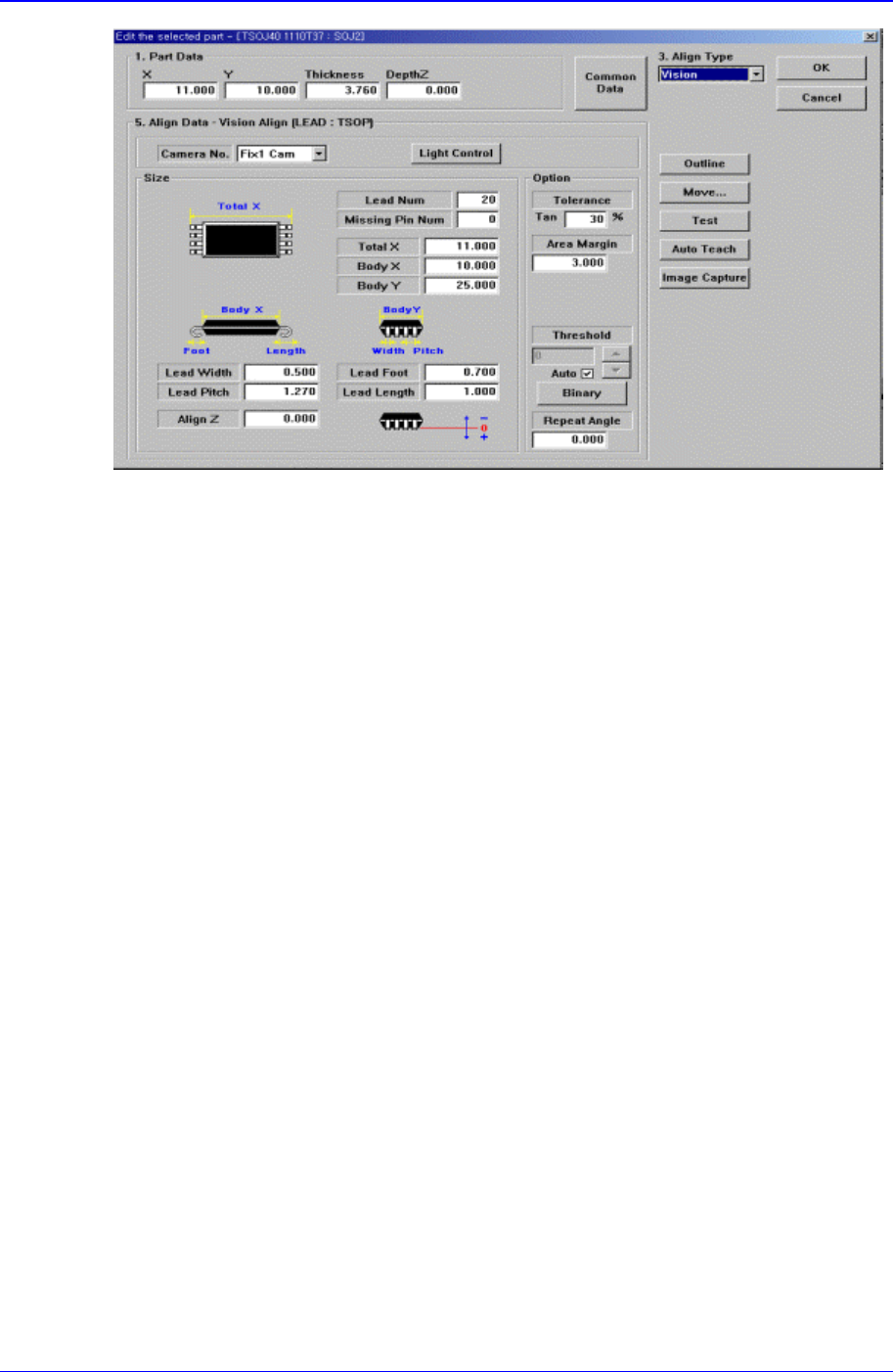

Figure 11-35 “Align Type = Vision, Package Group = SOJ2” dialog box
<Camera No.> combo box
Select the camera to recognize the component.
<Light Control> button
Set the light for the camera to recognize the component.
<Size> group
Set the align size.
<Lead Num> edit box
Set the number of leads on a side.
<Missing Pin Num> edit box
Set the number of empty leads at the center of a lead column(group).
<Total X> edit box
Set the size of the whole component in X.
<Body X> edit box
Set the size of component body in X.
<Body Y> edit box
Set the size of component body in Y.
<Lead Width> edit box
Set the width of lead.
<Lead Pitch> edit box
Set the lead pitch.
<Lead Foot> edit box
Set the length of the lead that touches the surface.
<Lead Length> edit box
Set the length of the lead shown on the align camera.
<Align Z> edit box
