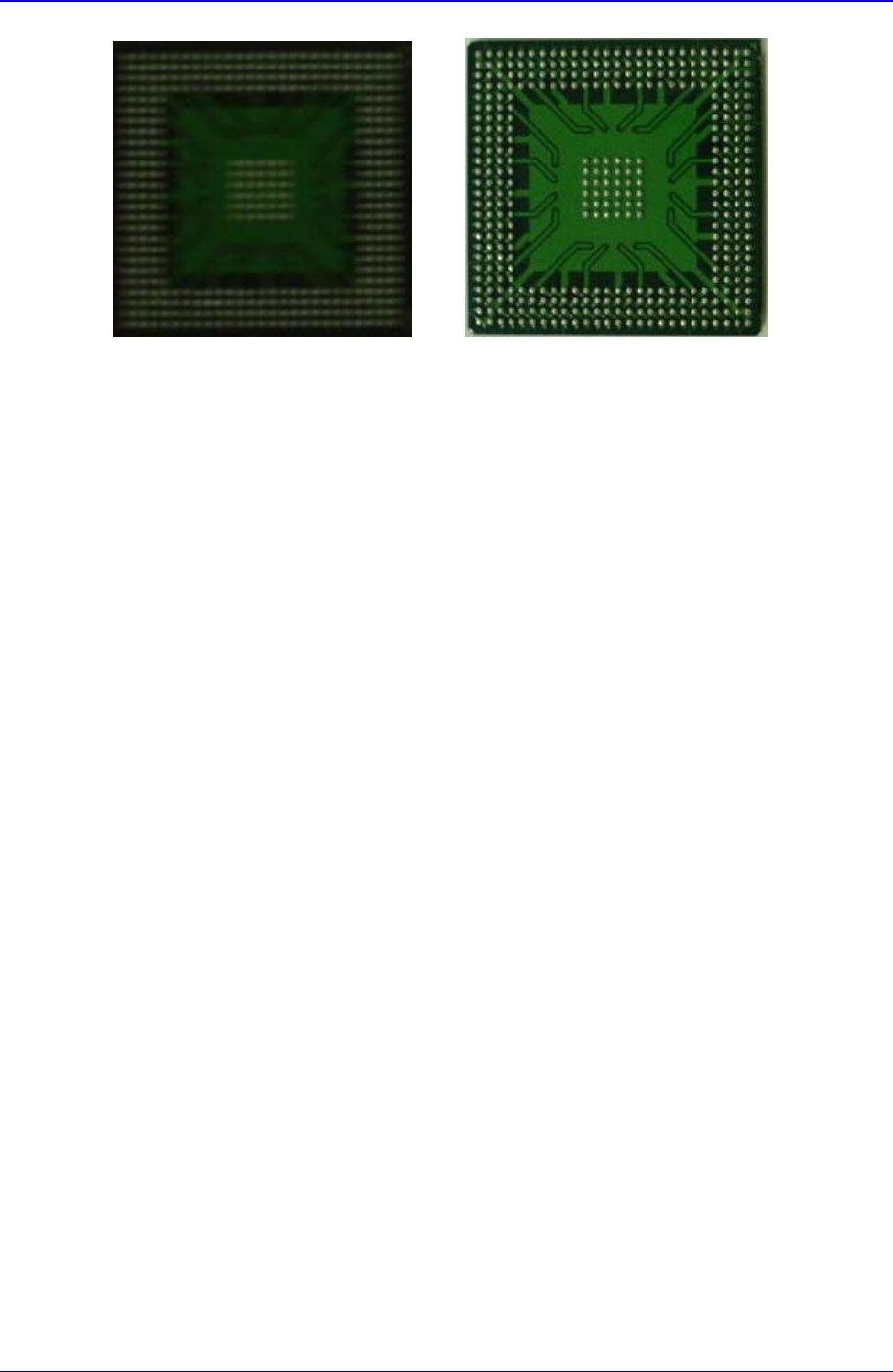

Figure 2-17. Lighting Application for CBGA Process (Left: general; Right: 3-stage lighting)
As shown in “Figure 2-17“, the exact shape of a ball can be recognized by using the side
lighting.
2.10.2.2. Installation method
It can be installed on the rear feeder base.
Basic Configuration and Name of Each Part
2-23
2.11. Component Alignment Method (Centering Method) and Component
Relationships
2.11.1. Configuration of the head and vision recognition system
The configuration of the head and vision recognition system of the CP-45FV model
relevant to the components to be placed is as shown in Table 2-3.
Table 2-3. Configuration of the Head and Vision Recognition System
Head Structure
Classification
Head 1 Head 2 Head 3 Head 4 Head 5 Head 6
Vision
System
CP-45FV
25mm
Vision
25mm
Vision
25mm
Vision
25mmV
ision
25mmV
ision
25mmV
ision
- 35mm
Vision
CP-45F
25mm
Vision
25mm
Vision
25mm
Vision
25mmV
ision
25mmV
ision
25mmV
ision
The 20 mm vision recognition systems for the placement of components requiring extra
precision (for example, 0.3mm fine pitch QFP, etc.) are provided as an option, and can be
used by simply replacing the upward vision unit. (Please refer to “1.2.2 Applicable
component sizes (page 1-3)”)
2.11.2. Component alignment mode and component specifications
2.11.2.1. Vision recognition system
2.11.2.1.1. For the case of 35mm vision
Table 2-4. Component Position Recognition for the Case of 35mm Vision
Size (mm) Lead Pitch(mm) One-way Lead Number
IC TYPE
Maximum Minimum Maximum Minimum
QFP
□ 32
0.4 3.0 4 Pin
SOP
□ 32
0.4 3.0 4 Pin
PLCC
□ 32
1.0 3.0 4 Pin
SOJ
□ 32
1.0 3.0 4 Pin
Connector 32(length) 0.5 3.0 4 Pin
BGA
□ 32
1.0 1.5 4 Ball
Memo
Samsung Component Placer CP-45F(V)/FS Operations Manual
2-24
2.11.2.1.2. For the case of 45mm vision
Table 2-5. Component Position Recognition for the Case of 45mm Vision
Size (mm) Lead Pitch(mm) One-way Lead Number
IC TYPE
Maximum Minimum Maximum Minimum
QFP
□ 42
0.5 4.0 4 Pin
SOP
□ 42
0.5 4.0 4 Pin
PLCC □ 42 1.0 4.0 4 Pin
SOJ
□ 42
1.0 4.0 4 Pin
Connector 42(length) 0.5 4.0 4 Pin
BGA
□ 42
1.0 1.5 4 Ball
2.11.2.1.3. For the case of 20mm vision (optional)
Table 2-6. Component Position Recognition for the Case of 20mm Vision
Size (mm) Lead Pitch(mm) One-way Lead Number
IC TYPE
Maximum Minimum Maximum Minimum
QFP
□ 18
0.3 2.0 4 Pin
SOP
□ 18
0.3 2.0 4 Pin
PLCC
□ 18
1.0 2.0 4 Pin
SOJ
□ 18
1.0 2.0 4 Pin
Connector 18(length) 0.5 2.0 4 Pin
BGA
□ 18
1.0 1.5 4 Ball
It is possible in the CP-45FV model to place 0.3mm pitch and 32.0 mm QFP.
However, in this case, a separate upward vision unit (fixed type) should be ed.
(optional)
In the CP-45FV model, general components not mentioned in Table 2-6 can be
placed. If you intend to place non-standard components not mentioned in Table 2-6,
please contact our Business Department or C/S Center.
Memo
