Samsung Component Placer CP-45F(V)/FS Operations Manual
2-30
2.15. Component Supply Feeders
This is a device for supplying components to the equipment during operation. It includes
tape feeder, stick feeder, multi-tray feeder, single-tray feeder, and vibration feeder.
Caution
Manipulating the feeder without getting thoroughly familiar
with the feeder manual could result in feeder damage or
personal injury.
Be sure to get thoroughly familiar with each feeder manual
before manipulating the feeder.
Basic Configuration and Name of Each Part
2-31
2.15.1. Tape feeder
There are eight tape feeder types including customized feeder for 1005 chip, 8mm, 12mm,
16mm, 24mm, 32mm, 44mm, and 56mm.
1 Pusher Lever 9 Clamp Lever
2 Location Pin 10 Manual Lever
3 Locker 11 Pawl Lever
4 Ratchet 12 Planet Lever
5 Sprocket 13 Planet Gear
6 Buck Up 14 Take Up Reel
7 Shutter 15 Reel Arm Post
8 Tape Guide 16 Planet Lever Spring

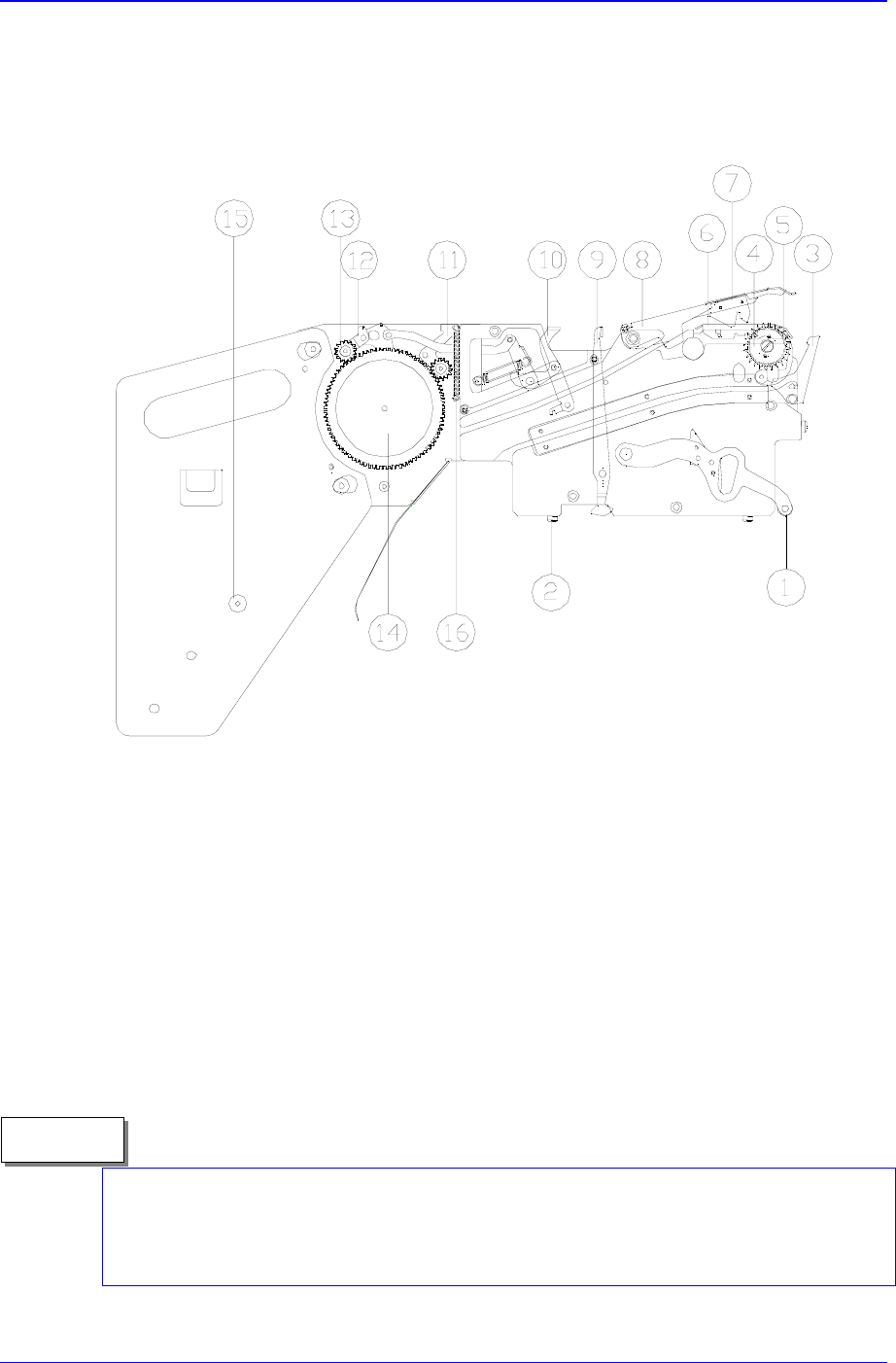

Figure 2-20. Tape Feeder
Based on 8.0mm tape feeder, total of 104 feeders, 52 feeders each at the front and
rear side, can be ed.
8.0mm tape feeder is used exclusively for the 1005 chip.
Memo
Samsung Component Placer CP-45F(V)/FS Operations Manual
2-32
2.15.1.1. Tape feeder standards
Tape feeder types and feeding pitch
Table 2-11. Tape Feeder Types and Feeding Pitch
Item Product Code
Tape
Width
Feeding pitch (mm)
NST-1005 Tape Feeder SB0801004K 8 mm 2, 1005 only
NST-08 Tape Feeder SB0802004K 8 mm 4
NST-08-L Tape Feeder SB0802005K 8 mm 4
1005 P-Pneumatic
drain
Feeder
SA0801001K 8 mm 2, 1005 only
08mm P- Pneumatic drain Feeder
SA0802001K 8 mm 4
1005 S- Pneumatic Feeder SA0801000K 8 mm 2, 1005 only
08mm S- Pneumatic Feeder SA0802000K 8 mm 4
12mm S- Pneumatic Feeder SA0803000K 12mm 4, 8
16mm S- Pneumatic Feeder SA0804000K 16mm 4, 8, 12
24mm S- Pneumatic Feeder SA0805000K 24mm 8, 12, 16, 20
32mm S- Pneumatic Feeder SA0806000K 32mm 8, 12, 16, 20, 24, 32
Adhesive Tape Feeder SA0809000K 32mm 12
44mm-L S- Pneumatic Feeder SA0810000K 44mm 8, 12, 16, 20, 24
44mm-S S- Pneumatic Feeder SA0811000K 44mm 16, 20, 24, 32, 40
56mm S- Pneumatic Feeder SA0808000K 56mm 8, 12, 16, 20, 24, 32, 40
Applicable reels
Diameters φ 178,φ 180,φ 254,φ 330, (option φ 380)
Applicable components
Square chips, MELF, TR, SOP, PLCC, odd-type components.( 8mm T2 is maximum
2.5 mm)
