Machinery Part Replacement Remarks Cutting Unit Item Put the cylinder top cover back on. Allen key 3 mm Screw M4x8mm 5 pcs. Put back the bottom cutter cover. Allen key 3 mm Screw M4x10mm 5 pcs. Put the chute and the feed…

100%1 / 1093
Machinery Part Replacement
Remarks
Cutting Unit
Item
lock the rod-ends. Wrench 17 mm
Put he chute guide bar back on.
Allen key 4 mm
Feeler gauge
Screw M5 2 pcs.
Check the chute guide bar and the return
limit of the movable cutter blade. Put back the chute guide bar, using a
0.1-mm feeler gauge.
Feeler gauge
Caliper
Ruler 150 mm
Connect the cylinder air tubes.
20
With the cutter blades at the extension limit,
17
18
19
Clearance from the guide bar to the movable
cutter blade: 0.05 to 0.2 mm
(0.05-mm feeler gauge should pass through;
0.2-mm one should NOT be inserted.)
45
36.811.2
3±0.5
0.05 - 0.1 mm
0.1-mm feeler gauge
EJM8A-E-SMA050902-A01-00
Page　5-9-2-6
Machinery Part Replacement
Remarks
Cutting Unit
Item
Put the cylinder top cover back on.
Allen key 3 mm
Screw M4x8mm 5 pcs.
Put back the bottom cutter cover.
Allen key 3 mm
Screw M4x10mm 5 pcs.
Put the chute and the feeder cover back
Phillips screwdriver #2
Allen key 3 mm
Screw M4 2 pcs.
Screw M4x10mm 3 pcs.
Thick washer 3 pcs.
Open the cock of the MR unit.
From 0.49MPa
to 0.54MPa
24
21
22
23
1
2
EJM8A-E-SMA050902-A01-00
Page　5-9-2-7
Machinery Part Replacement

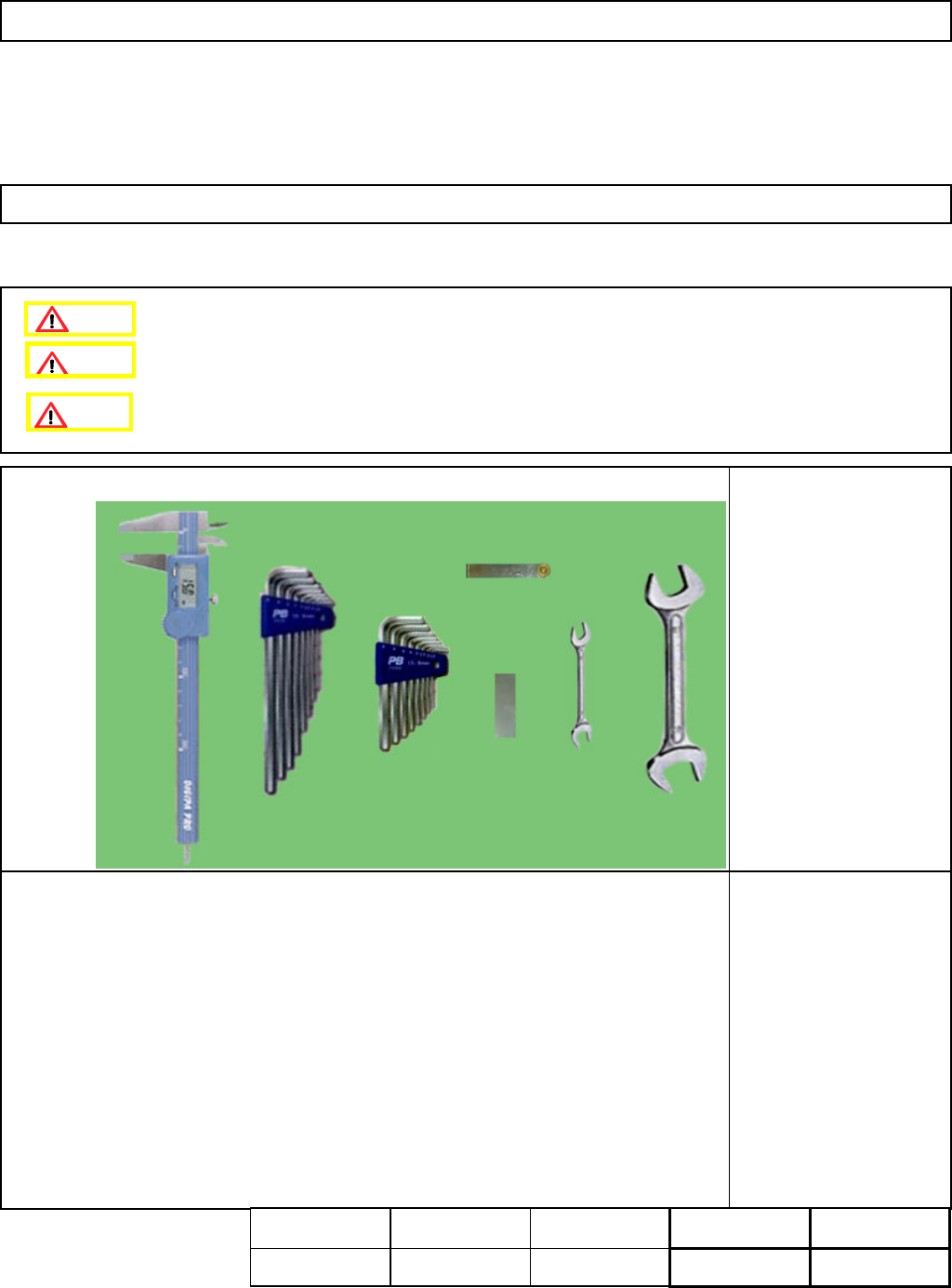

・Tools
Allen key 3 mm
Allen key 4 mm
Allen key 8 mm
7-mm wrench
24-mm wrench
Calipers
Shim
・Jig
None
Cutting Unit
5-9-3　　　 　　 Fulcrum Bearing Replacement
i
This section describes the procedures for replacing the fulcrum bearings.
Assembly
A
d
j
ustment
40min.
Teaching
min.
Total　Time Weight　of
Part
Removal
Disassembl
y
40min.
80min.
35kgs
Caution
Dange
r
Warning
EJM8A-E-SMA050903-A01-00
Page　5-9-3-1
