Machinery Part Replacement Remarks Item 12-Nozzle Head Teaching A ll steps above should be taken for all sta g es ( AF , AR , BF and BR ) . 13 EJM8A-E-SMA051108-A01-00 Page 5-11-8-5
Machinery Part Replacement
Remarks
Item
12-Nozzle Head Teaching

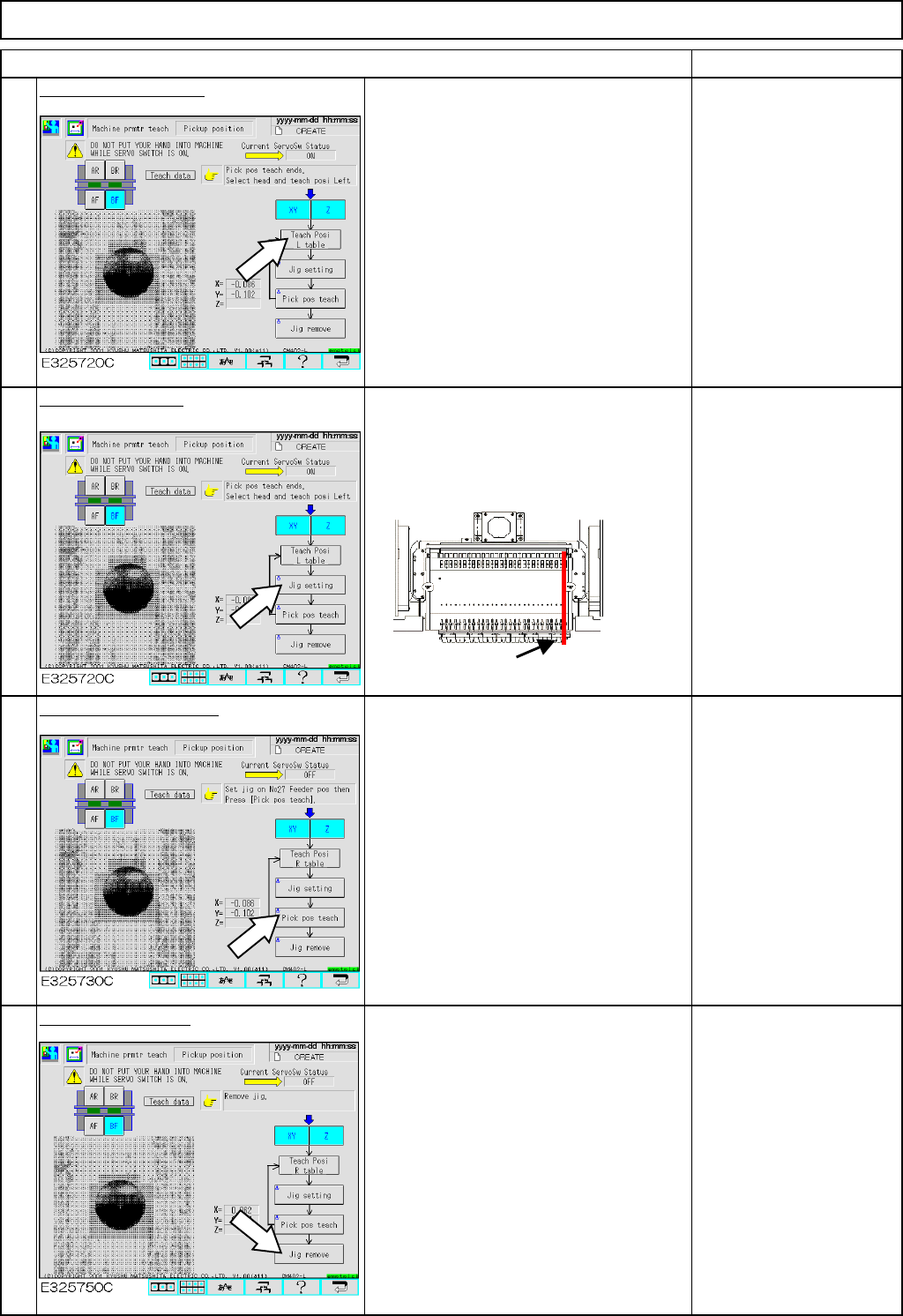

Select the right table.
Press [Jig setting].
Put the pickup-position-adjusting jig on
the number 27 position of the feeder
change cart.
Press [Pick pos teach].
11
The board camera recognizes the 1-mm
hole of the pickup-position-adjusting jig
automatically. The 130S nozzle on the
number 3 nozzle position moves down to
the jig and measures the height of the
upper surface of the jig.
* The offset difference among the tables
should be within 0.15 mm when teaching
is finished.
Press [Jig remove].
12
9
10
Pickup-position-adjusting jig
EJM8A-E-SMA051108-A01-00
Page 5-11-8-4
Machinery Part Replacement
Remarks
Item
12-Nozzle Head Teaching
A
ll steps above should be taken for all
sta
g
es
(
AF
,
AR
,
BF and BR
)
.
13
EJM8A-E-SMA051108-A01-00
Page 5-11-8-5
This section describes the procedures for determining the light intensity.
Tools
5-11-9 Light Intensity
Machinery Part Replacement 12-Nozzle Head Teaching
Jig
FM-0934
Light-intensity-teaching jig
None
Shadow-light-intensity-teaching jig
(Same as 8 nozzles)
Direct-light-intensity-teaching jig
(Same as 8 nozzles)
Caution
Dange
r
Warning
EJM8A-E-SMA051109-A01-00
Page 5-11-9-1
