1.7.4 Permanent Set If a number of production programs are being used, there are cases when frequently used devices are fixed in order to eliminate several steps in the changeover process when changing programs. When pro…

Function Key Menu

+PAGE : Press to display next screen

-PAGE : Press to display previous screen

▲ : Press to move cursor up one device

▼ : Press to move cursor down one device

ESC : Press to avoid checking all devices that have not been checked yet.

However, if Proper data item 74: ESC Permission is not set to "Permit" this

key cannot be used.

The following methods can be used to register completion of device check.

1. Move the cursor to the appropriate page using the function keys and press the CR

key.

2. Input the device number.

[Example] device number 101

Input [1] [0] [1] and press the CR key to complete the check. The color of the display

will change to green. However, if the device number being input is not displayed on

the screen then only the screen will change. Device check completion is not

registered. The device number must be input again and the CR key pressed to register

that the check has been completed.

3. Press the [ESC] key.

This method allows the user to skip checking all devices that have not been checked.

However, if Proper data item 74: ESC Permission is not set to "Permit" this key cannot

be used.

+PAGE -PAGE ▲▼ESC

CP643S2031

RETURN

Part 2 Chapter 1 Basic Operation

Edition 1.1 2-1-48 CP643E System Reference

1.7.4 Permanent Set

If a number of production programs are being used, there are cases when frequently

used devices are fixed in order to eliminate several steps in the changeover process when

changing programs. When programs are changed, if this method is used, a comparison

is made between the device comments stored in present machine memory and the device

comment of the program that has changed. For any devices in common, device check is

omitted if the device has been checked already. Devices set in such a manner are

referred to as permanently set devices.

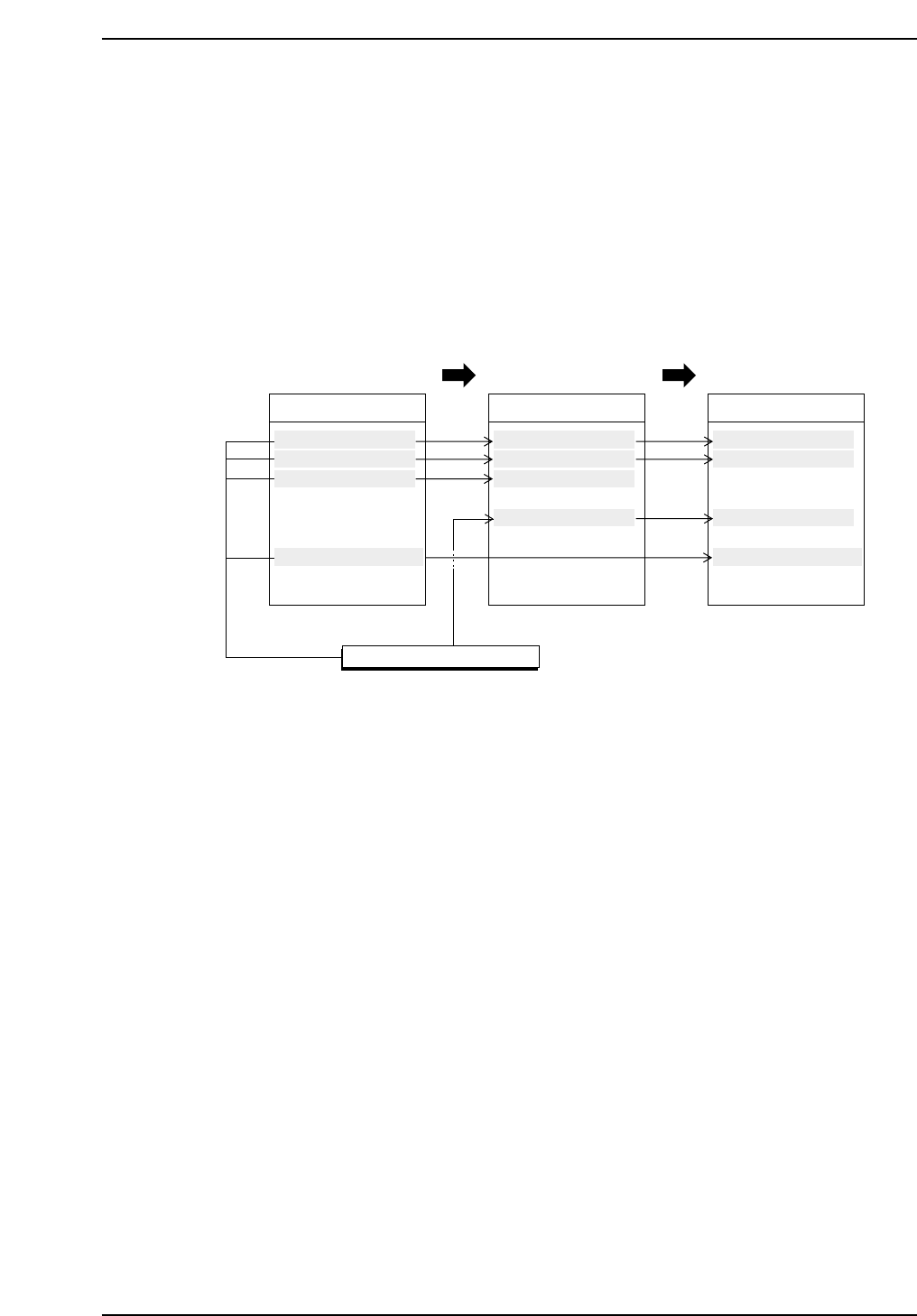

For example, consider the display below where production programs are carried out in

A → B → C order.

When changing from production program A to program B

If D1~D3 are used in both programs then once these devices have been checked they are

considered permanently set devices. These devices are displayed in green on the device

check screen.

Once a device check is completed on D7 it is considered a permanently set device. Since

D7 is not used in production program B a device check is not carried out. Permanently

set devices such as D7 that are not used in the current program display in blue on the

screen.

When changing from production program B to program C

D1 and D2 are used in both programs and have already been checked. These devices

have been judged as permanently set devices and are displayed in green on the device

check screen.

The device being used in D3 has changed and thus a device check is carried out. This

device is displayed in yellow on the device check screen until a check is carried out.

D7 has already been checked and determined as a permanently set device and thus it

displays in green.

Device_Comment

D1 RECT3216120

D2 RECT1608040

D3 MINI1220120

D4 ALEC4343570

D5 RECT2012040

D6 RNT45032040

D7 SQFP03610100

··········

Production program A

Device_Comment

D1 RECT3216120

D2 RECT1608040

D3 MINI1220120

D4 ALEC4343570

D5 RECT2012040

D6 RNT45032040

··········

Production program B

Device_Comment

D1 RECT3216120

D2 RECT1608040

D3 MINI1220120

D4 ALEC4343570

D5 RECT2012040

D6 RNT45032040

D7 SQFP03610100

··········

Production program C

Permanently Set Devices

CP643S2032

Part 2 Chapter 1 Basic Operation

Edition 1.1 2-1-49 CP643E System Reference

1.7.5 Mode for Checking All Devices Used

When a production program changes as a result of changeover, device check can now be

carried out on all the devices that are used.

If one of the following conditions applies then device check will be carried out on all of

the devices that are used.

1. Program change on the machine

2. Production program change using the handy terminal

3. Next production program changed using the handy terminal

(Pre device check in the AB mode)

4. Program transmitted to the foreground (including partial transmission)

5. Automatic changeover using HELPS

6. Reserve or report program set using HELPS (Pre device check in the AB mode)

7. When in the AB mode if the next production program (reserve program) is

retransmitted to the background

8. Change from the joint mode to the AA · AB mode (production table is T2)

9. Change from the AA · AB mode (production table is T2) to the joint mode

10. Production table changed in the AB mode

[Conditions 8, 9, and 10 are all initiated from a command on the machine (handy

terminal)]

The device check status will be changed to the following.

No option set Option set

Different device comment Un-Set Un-Set

Parts out warning Tape E Tape E

Parts out Parts E Parts E

Vision processing error Vision Vision

Pickup miss Pickup Pickup

Parts out at next device Next D Next D

Other than the above OK Un-Set

Proper data setting

A Proper data setting is required to enable the device check described

above.

11. Machine_Status_A : (The ? is either a 0 or 1.)

???? ???? ?X?? ????

X : 1 Check carried out on all devices used at the time of changeover

X : 0 Standard device check carried out

When 64 is added: When performing changeover, carry out a check of all the devices

used.
