Output3 MX250 Address 0xef0340 LED No. No. Display Description A00 Y040 A01 Y041 OTVL CUT ON Overtravel control cancel A02 Y042 FIDU LAMP ON Fiducial lamp on A03 Y043 RINGBLOW ON Ringblow functional A04 Y044 D1 SET LIGHT…
Output2 MX250 Address 0xef0320
LED No. No. Display Description
A00 Y020 PICKUP SOL ON Station 1 pickup solenoid off
A01 Y021 PICKUP SOL OFF Station 1 pickup solenoid on
A02 Y022 PQ ROT SOL ON Station 3 pretheta rotation solenoid off
A03 Y023 PQ ROT SOL OFF Station 3 pretheta rotation solenoid on
A04 Y024 PQ ROT. 90DEG Station 3 pretheta rotation cylinder advance
A05 Y025 PQ ROT. 270DEG Station 3 pretheta rotation cylinder retract
A06 Y026 TAPE FEED SOL ON Station 1 feed cylinder solenoid on
A07 Y027 TAPE FEED SOL OFF Station 1 feed cylinder solenoid off
A08 Y028 PLACE SOL ON Station 11 placing solenoid off
A09 Y029 PLACE SOL OFF Station 11 placing solenoid on
A0A Y02A NOZ SOL ON Station 18 nozzle switch cam solenoid off
A0B Y02B NOZ SOL OFF Station 18 nozzle switch cam solenoid on
A0C Y02C PRQ ROT. SOL ON Station 13 PRQ rotation cam solenoid off
A0D Y02D PRQ ROT. SOL OFF Station 13 PRQ rotation cam solenoid on
A0E Y02E PRQ ROT. 90DEG Station 13 PRQ rotation cylinder advance
A0F Y02F PRQ ROT. 270DEG Station 13 PRQ rotation cylinder retract
B00 Y030 FQ SOL ON Station 10 FQ rotation solenoid off
B01 Y031 FQ SOL OFF Station 10 FQ rotation solenoid on
B02 Y032 F_LIGHT OPEN Front light shutter open
B03 Y033 F_LIGHT SHUT Front light shutter closed
B04 Y034 TAPE FEEDER FWD Tape feeding cylinder advance
B05 Y035 (Reserved)
B06 Y036 (Reserved)
B07 Y037 VACUUM BACKUP Vacuum for backup pin generated
B08 Y038 GAIN CHANGE D1 D1-axis servo gain switcher
(Low mode: 6M)
B09 Y039 GAIN CHANGE D2 D2-axis servo gain switcher
(Low mode: 6M)
B0A Y03A BULK FEED Bulk feeder ON/OFF
B0B Y03B (Reserved)
B0C Y03C (Reserved)
B0D Y03D (Reserved)
B0E Y03E (Reserved)
B0F Y03F (Reserved)
Part 6 Chapter 1 Standard I/O
Edition 1.0 6-1-6 CP643E System Reference
Output3 MX250 Address 0xef0340
LED No. No. Display Description
A00 Y040
A01 Y041 OTVL CUT ON Overtravel control cancel
A02 Y042 FIDU LAMP ON Fiducial lamp on
A03 Y043 RINGBLOW ON Ringblow functional
A04 Y044 D1 SET LIGHT Device table 1 parts set completed
A05 Y045 D1 SET FLASH Device table 1 parts set incomplete
A06 Y046 D2 SET LIGHT Device table 2 parts set completed
A07 Y047 D2 SET FLASH Device table 2 parts set incomplete
A08 Y048 RED LIGHT Signal tower (red lamp)
A09 Y049 YELLOW LIGHT Signal tower (yellow lamp)
A0A Y04A BLUE LIGHT Signal tower (blue lamp)
A0B Y04B RED FLASH Signal tower (red flash)
A0C Y04C YELLOW FLASH Signal tower (yellow flash)
A0D Y04D BLUE FLASH Signal tower (blue flash)
A0E Y04E (Reserved)
A0F Y04F KEEP POWER ON Maintaining power
B00 Y050 M-LFTR CLAMP Main lifter board clamp
B01 Y051 M-LFTR UNCLAMP Main lifter board unclamp
B02 Y052 M-LFT M-OT INV Main lifter middle overtravel invalid
B03 Y053 M-LFT REDU PRS Main lifter board clamp pressure reduced
B04 Y054 (Reserved)
B05 Y055 (Reserved)
B06 Y056 (Reserved)
B07 Y057 (Reserved)
B08 Y058 (Reserved)
B09 Y059 (Reserved)
B0A Y05A (Reserved)
B0B Y05B (Reserved)
B0C Y05C (Reserved)
B0D Y05D (Reserved)
B0E Y05E (Reserved)
B0F Y05F (Reserved)
Part 6 Chapter 1 Standard I/O
Edition 1.0 6-1-7 CP643E System Reference

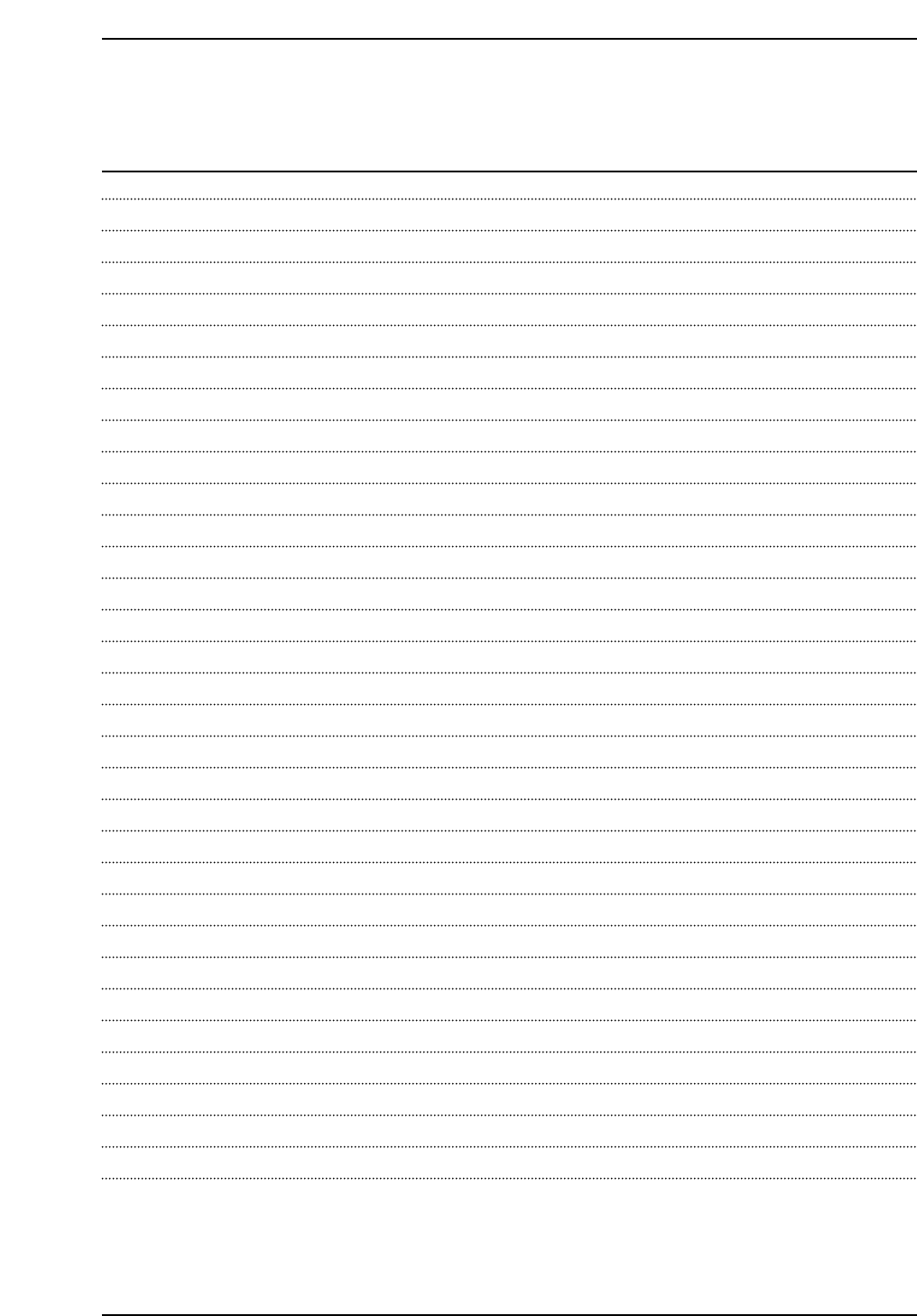

Notes:
Part 6 Chapter 1 Standard I/O
Edition 1.0 6-1-8 CP643E System Reference
