9. Specify an “Xon/Xoff” setting at the “Flow Control” item. 10. Click [OK] to begin the hyper terminal connection. 11. Use the machine control keys as described below. • For a software (S/W) trace output Execute the fol…

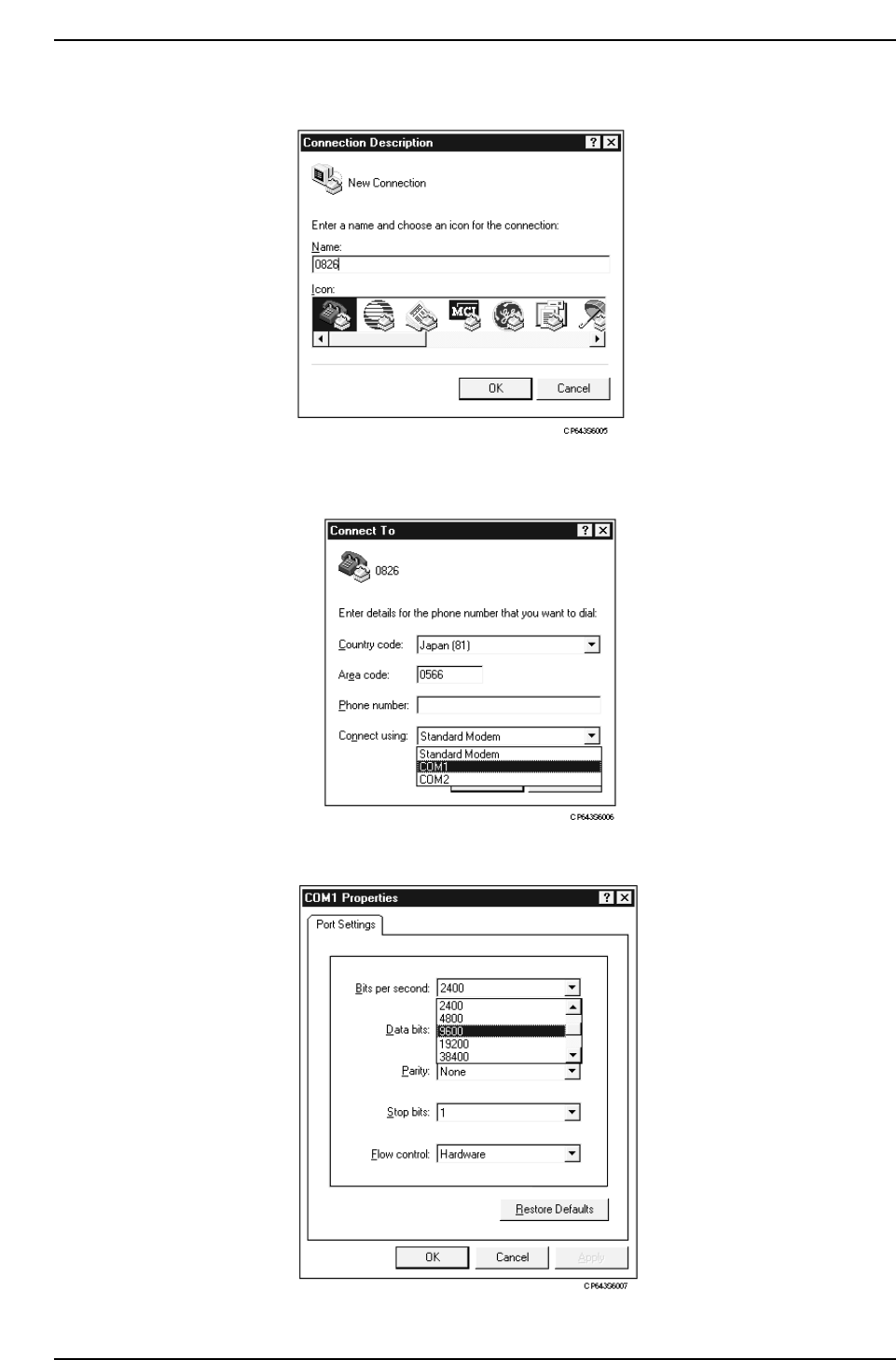

6. Enter the name of the trace data, then click [OK].

7. Select the COM port which was verified at step 3. above, then click [OK]. The “COM?

Properties” screen then displays.

8. Specify a “9600” setting at the “Bit/Sec” item (baud rate).

Part 5 Chapter 5 Troubleshooting

Edition 1.0 5-5-4 CP643E System Reference

9. Specify an “Xon/Xoff” setting at the “Flow Control” item.

10. Click [OK] to begin the hyper terminal connection.

11. Use the machine control keys as described below.

• For a software (S/W) trace output

Execute the following command sequence: [SET] - [MANUAL] - [MEMORY] -

[ETC.MODE] - [OUT PUT UNIT] - Ten-key input of [1] + [CR] - [ETC MODE] -

[ETC MODE] - [Trace] - [TRACE LIST2] - [OPTION] - [Print OUT] -

[PRINT READY].

• For a servo trace output

Execute the following command sequence: [SET] - [MANUAL] - [MEMORY] –

[SERVO]

1) To obtain common-area data from a specified servo board, continue with the

following inputs:

[COMMON AREA] - Enter board No. - [PRINT] - [PRINT READY]

2) To obtain axis-area data from a specified servo board, continue with the following

inputs:

[AXIS AREA] - Enter board No. - Enter axis No. - [PRINT] - [PRINT READY]

Note: What is an S/W trace?

Stored in the CPU board’s memory, a S/W trace is a record of all system operations. It lists

in chronological order all machine operations and external signal inputs/outputs which have

occurred.

What is a servo trace?

A servo trace is a record of servo system operations only. Because the timing is critical

when obtaining a servo trace, please contact your Fuji representative for assistance.

By using the above commands, the trace data is output to the hyper terminal window.

Part 5 Chapter 5 Troubleshooting

Edition 1.0 5-5-5 CP643E System Reference

12. After the output is completed, save the trace data in a text format.

1) Click [EDIT], then click [SAVE ALL (s)].

2) Click [EDIT], then click [COPY] (or Ctrl + C).

Part 5 Chapter 5 Troubleshooting

Edition 1.0 5-5-6 CP643E System Reference
