Area B: The operation modes are displayed here. • P Mode: This item indicates whether the machine is currently in Product, Simulate, or Idle or Idle 2 operation mode. • Recovery: This item indicates which of the three re…
1.3.2 First Display Area
The display on the monitor differs depending on whether or
not the user is in automatic operation mode.
(1) Display During Automatic Operation Mode
Area A: This area displays sequence information.
The following examples show how the First Display Area might appear.
Caution: The number of the next device from which parts were picked displays in the case that the
target device was part of a next device loop. In Changeover or Device Change mode,
when Device Table 2 (71-140: 51 ~ 100 for the CP-643ME) is the original table, the
device positions will be displayed as 71 ~ 140 (CP-643ME: 51 ~ 100) .
Display
ST11.N
ST11.N Skip
ST11.N
ST11.N
Meaning
This is the placing number at station 11. The device
number is also displayed.
In this sequence this nozzle is being skipped.
Fiducial marks are being read.
Block skip marks are being read.
CP643S1020
1D 35
D Er
1 Fidu
1 Blok
ST11. N
Ending one board production
NEXT PROD: TEST PROGRAM 1
CP643S1019
1D 35
STATUS
P Mode
Recovery
T Mode
: Product
: 3 times
: Joint
AB
C
D
CP643S1018
Part 1 Chapter 1 Machine Overview
Edition 1.1 1-1-18 CP643E System Reference
Area B: The operation modes are displayed here.
• P Mode: This item indicates whether the machine is currently in Product, Simulate, or
Idle or Idle 2 operation mode.
• Recovery: This item indicates which of the three recovery modes (E Pass, E Stop, or N
times) the machine is currently using.
• T Mode: This item indicates which of the device table modes are in operation.
When original table is designated, the sign " ** " will appear on its side.
Display
Joint
2A 1A **
2B 1A **
(2A1B)
Meaning
Joint Mode: The two tables move synchronously.
Device Change Mode: One device table is used as the spare
table for the other table.
Changeover Mode: Only one table operates and each table
operates for a separate program.
CP643S1023
Display
Times
Error Stop
Error Pass
Meaning
The number of times that recovery is repeated can be set.
Refer to Part 3, Chapter 3, "Command Descriptions" for
a more detailed explanation.
When an error occurs, the machine stops and recovery is
carried out when the machine is started again.
When an error occurs, the machine does not stop and no
recovery is carried out.
CP643S1022
Display
Product
Simulate
Idle
Idle 2
Meaning
The machine is in normal production mode.
The machine carries out a simulation of normal production.
Boards are loaded, and only the X-, Y-, D1- and D2-axes move
as they do during production for the selected production program.
The machine does not feed boards or perform vision
processing. Otherwise, it is the same as Product mode.
While in this mode there should be no parts on the device table.
In addition to the idling operation, in-/out-carrier operation and
board transfer actions between the XY-table and the carriers are
performed. (Actual board exchanges do not occur.)
When in this mode, there should be no parts on the device table.
CP643S1021
Part 1 Chapter 1 Machine Overview
Edition 1.1 1-1-19 CP643E System Reference

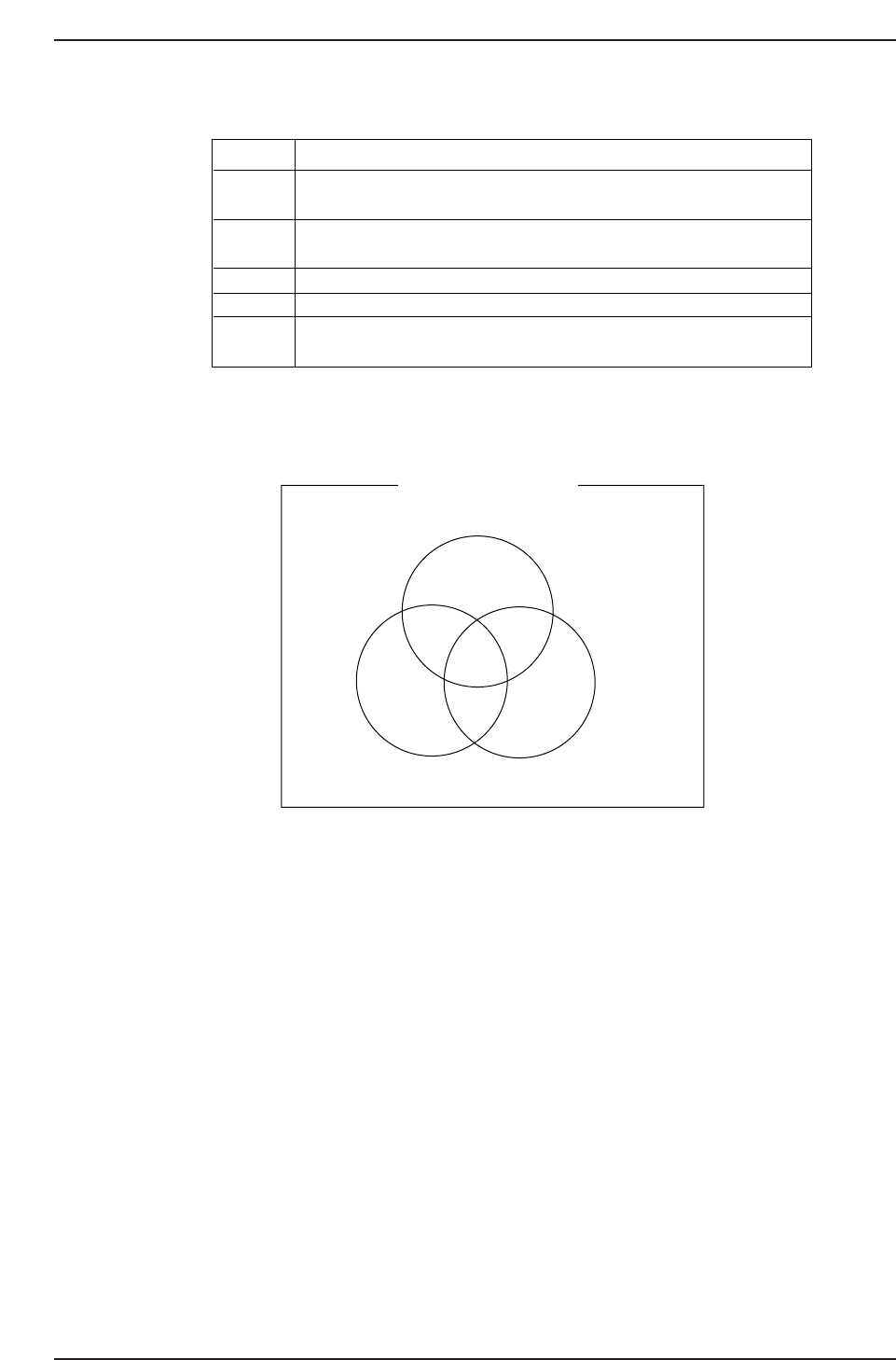

The color of the display has the following meanings.
The relationships between the displays above are shown in the Venn diagram below.
If the device check function is not used, the setting of parts can only be canceled or
completed using the [PARTS SET] [CANCEL/COMPLETE] switch.
Refer to “Part 2, Chapter 1, 1.7 Device Check”, for details about the device check function
and the parts set cancel/complete operation.
Table display Color
Red
Red
Blue
Yellow
Green
Purple
White
White
Production Table Reservation
Part set complete
Device check complete
CP643S1025
Display
Green
Yellow
White
Purple
Blue
Meaning
Original table with device check and the parts set
operation complete
Device check and the parts set operation complete on the
table that is not the original table
Device check completed, parts set SW is not complete
Parts set complete, device check not complete on original table
Parts set complete, device check not complete on table that is
not the original table
CP643S1024
Part 1 Chapter 1 Machine Overview
Edition 1.1 1-1-20 CP643E System Reference
