(3) Adjustable Rail Engagement Sensor The following laser type sensor is used on the CP-643E/643ME as the main conveyor’s adjustable rail engagement sensor. Item name: Laser type fiber sensor Model: FS-L71 Wavelength: 67…

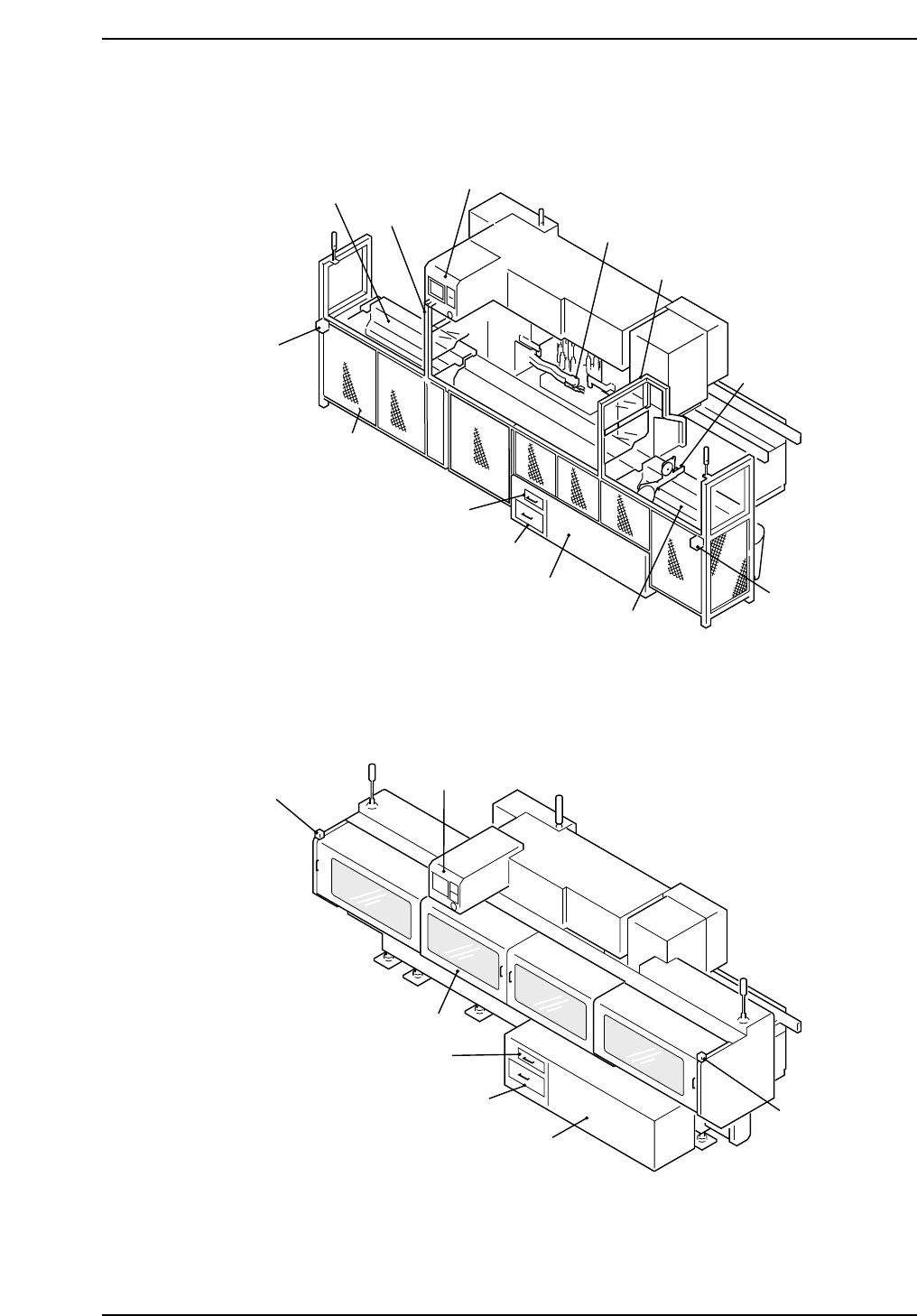

(2) Rear View of the Machine
<Models with Fence>
<Models with Rear Cover>
Filter
Waste tape box
Operation box 2
Noise reduction box
Rear cover
CP643S1003
Parts set
complete switch
Parts set
complete switch
Noise reduction box
Filter
Waste tape box
Rear fence
Shutter 1
Operation box 2
Shutter 2
Device table 2
Feeder
Waste tape cutter
Device table 1
CP643S1002
Parts set
complete switch
Parts set
complete switch
Part 1 Chapter 1 Machine Overview
Edition 1.1 1-1-5 CP643E System Reference

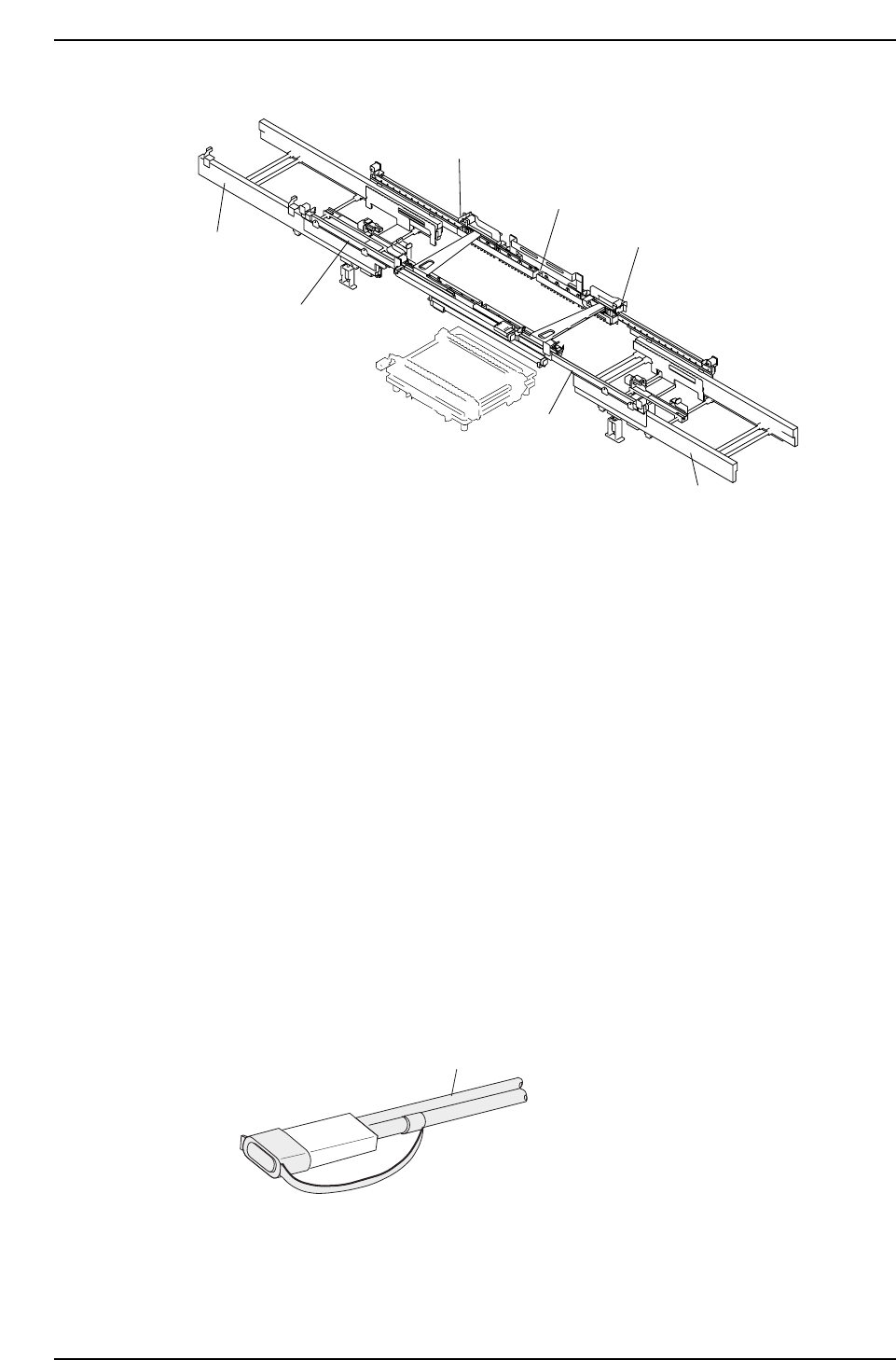

(3) Adjustable Rail Engagement Sensor
The following laser type sensor is used on the CP-643E/643ME as the main conveyor’s
adjustable rail engagement sensor.
Item name: Laser type fiber sensor
Model: FS-L71
Wavelength: 670 mm
Max. output: 3 mW
Class: 2
The following safety measures are taken:
• Laser emission indicator lamp
The amplifier is equipped with an LED lamp which indicates when a laser beam is being
emitted. The operator can see that this LED is on even when wearing protective goggles.
• Laser beam shield
A laser beam shield which can be attached to the fiber unit is supplied with FS-L series
sensors. Be sure to attach this shield when the operator must work in front of the fiber
unit where there is a risk of eye injury caused by the laser beam.
• Stopping the laser emission
Laser beam emission is stopped when the fiber unit is disconnected from the amplifier
unit.
Fiber unit
Laser beam shield attached
CP643S1005
CP643S1004
Adjustable rail engagement sensor 1
Adjustable rail engagement sensor 2
Adjustable rail engagement
sensor 3
Out-conveyor
Out-carrier
In-conveyor
In-carrier
Part 1 Chapter 1 Machine Overview
Edition 1.1 1-1-6 CP643E System Reference

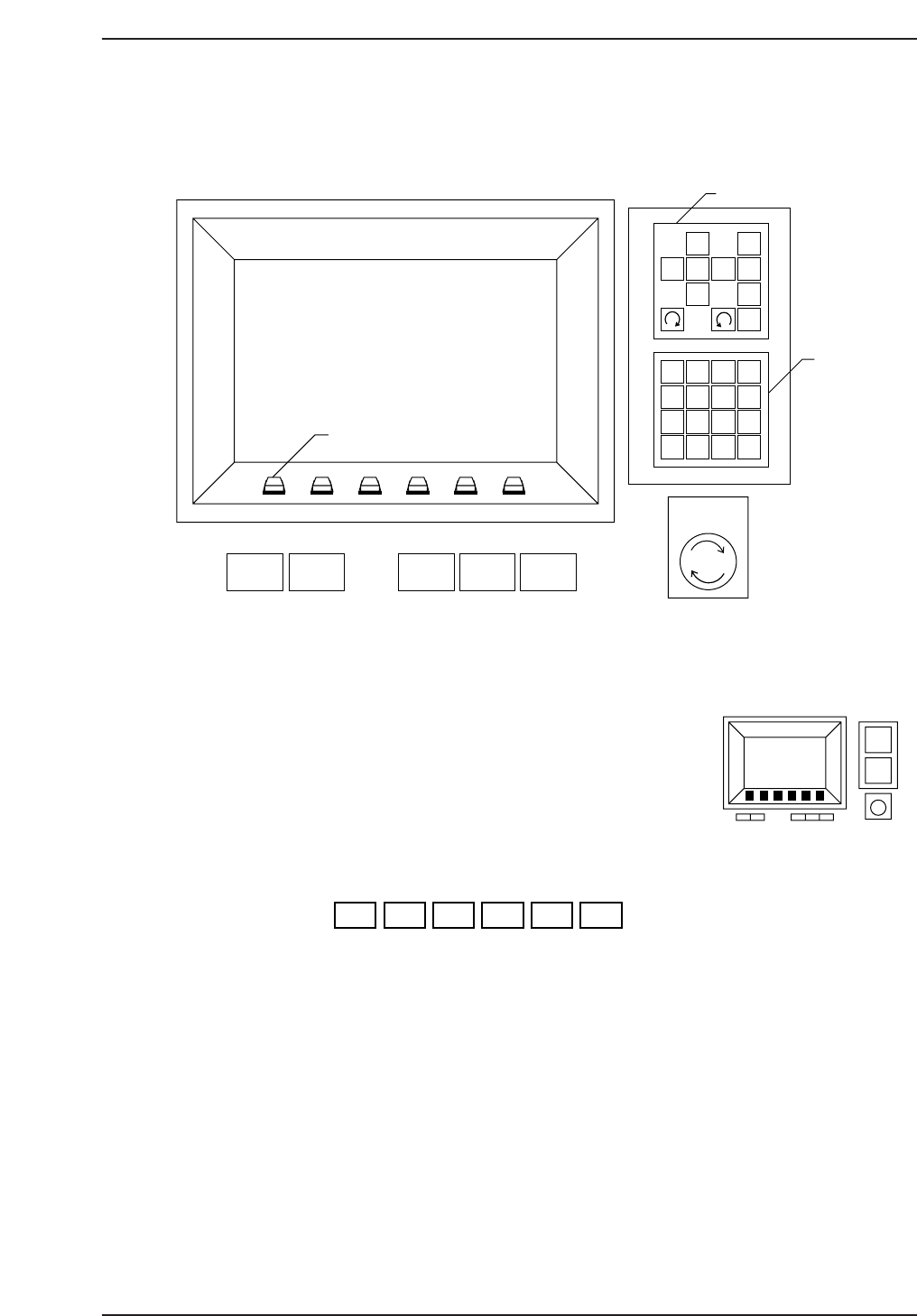

1.2.2 Operation of the Keys
This section explains the keys and buttons used to operate the CP-643E series machines.
(1) The Function Keys
The function keys (F1 through F6) are pressed to select
commands. Each function key corresponds to a command
in the function key menu portion of the machine display.
To execute a command, press the corresponding function key.
F1 F2 F3 F4 F5 F6
CP643S1008
CP643S1007
1
2
3
4
56
7
8
9
G
#
–
F
1
2
3
4
B
S
C
R
0
↑
←
↓
→
POWER
OFF
CYCLE
STOP
POWER
ON
START RESET
Inching Keys
Numerical
Keypad
EMERGENCY
STOP
Function Keys
✽
CP643S1006
Part 1 Chapter 1 Machine Overview
Edition 1.1 1-1-7 CP643E System Reference
