5 -37 EPD8008100 Operation Chapter 5 5 Creating the PCB data 3.4.3 QFP components QFP components are registered with the parameters sho wn below . QFP component parameters 27514-D8-00 6. SHAPE INFO. Body Size X Body Size…

100%1 / 307
5
-36
EPD8008100
Operation
Chapter 5
5
Creating the PCB data
6. SHAPE INFO. parameters
Set these parameters after specifying the VISION INFO. parameters. If
“Alignment Type” is undefined, the following parameters are not dis-
played.
61. Body Size X, Body Size Y
Enter the correct dimensions including the leads, measured with a vernier
caliper or micrometer.
62. Body Size Z
Enter the correct thickness measured with a vernier caliper or micrometer.
63. Ruler Offset
Refer to the description in “3.4.1 Mini-mold transistors/SOT”.
64. Ruler Width
Refer to the description in “3.4.1 Mini-mold transistors/SOT”.
65. LeadNumber
Enter the number of leads existing on one side in either E or W direction
66. ReflectLL
Enter the projected length of leads which reflect light during recognition.
Use the default setting in most cases.
67. LeadWidth
Enter the correct lead width.
68. LeadPitch
Enter the correct lead pitch (lead-to-lead spacing).
SHAPE INFO. parameters for SOP components
23513-C0-00
N
S
E
W
B
C
A
A : Body Size X
B : Body Size Y
C : Body Size Z
D : Reflect LL
E : LeadPitch
F : LeadWidth
Bottom view
N
S
W
E
D
E
F
5
-37
EPD8008100
Operation
Chapter 5
5
Creating the PCB data
3.4.3 QFP components
QFP components are registered with the parameters shown below.
QFP component parameters
27514-D8-00
6. SHAPE INFO.
Body Size X
Body Size Y
Body Size Z
Ruler Offset
Ruler Width
Lead Number
Lead Number
ReflectLL
LeadWidth
LeadPitch
Bumper Mask
:
:
:
:
:
:
:
:
:
:
:
18.70
24.70
2.90
3
2
20
30
1.20
0.30
0.65
5. VISION INFO.
Alignment Group
Alignment Type
AlignmentModule
Light Selection
Lighting Level
Comp. Threshold
Comp. Tolerance
Search Area mm
Datum Angle
Comp. Intensity
MulriCam. Marker
:
:
:
:
:
:
:
:
:
:
:
IC
QFP
Fore&Back
Main + Coax
6/8
Normal
NotUse
35
30
5.00
0
1 .BASIC INFO.
Database No.
Comp. Package
Feeder Type
Required Nozzle
Feeder Set No.
Pos. Definition
Feeder Pos_X mm
:
:
:
:
:
:
:
Tape
44mmEmboss
ForQFP20mm74
Teaching
767
5
-48.00
2 .OPTION INFO.
FixCmpRef.
AIt.Cmp
Use feeder opt.
Comp. Group No.
Correct Pickpos
:
:
:
:
:
Yes
Not Use
0
0
0
3. PICK AND MOUNT INFO.
Pick Angle deg
Pick Timer
Mount Timer
Mnt Height
Pick Sequence
Mount Action
Mount Speed
PickupSpeed
XY Speed
Vacuum Check
Pick Vacuum
Mount Vacuum
Conv. Y Speed
:
:
:
:
:
:
:
:
:
:
:
:
:
4. DUMP INFO.
Dump Way
Retry Times
:
:
Dump POS
2
s
s
mm
%
%
%
%
%
0
0.30
0.20
Normal
QFP
30
100
100
SPECIAL CHK
FAST
0.2
10
10
mm
mm
mm
N
E
mm
mm
mm
mm
0.00
1
2
3
4
5
6
41
42
43
44
45
46
47
48
49
50
51
11
12
13
14
15
31
32
61
62
63
64
64
65
66
67
68
21
22
23
24
25
26
27
28
n
NOTE
When setting the parameters shown in the sub-windows above, use the number keys to set
the parameters aligned on the right, while using the [INS], [DEL] or [Space] key to set
the parameters aligned on the left. However, there are some parameters which should be
set or optimized with the Adjust Assistant commands described later in “3.7” in this
chapter.
The displayed parameters differ slightly depending on the <3/1/A1 OPTION CONFIG>
settings.
Reference
For QFP size that can be recognized and mounted with the YV100XT, refer to “2.4
Mountable component size” in Chapter 2.
5
-38
EPD8008100
Operation
Chapter 5
5
Creating the PCB data
1. BASIC INFO. parameters
1. Comp. Package
Refer to the description in “3.3.1 Standard chip components”.
2. Feeder Type
Refer to the description in “3.3.1 Standard chip components”.
3. Required Nozzle
Select the optimum nozzle that matches the component size from among
the nozzle types for QFP components. (See “Nozzle table” listed in
Supplement in this manual.)
4. Feeder Set No.
Refer to the description in “3.3.1 Standard chip components”.
5. Pos. Definition
Refer to the description in “3.3.1 Standard chip components”.
6. Feeder Pos_X
Refer to the description in “3.3.1 Standard chip components”.
2. OPTION INFO. parameters
For descriptions of the following OPTION INFO. parameters, refer to
“3.3.1 Standard chip components” in this chapter.
11. FixCmpRef.
12. Alt. Comp.
13. Use feeder opt.
14. Comp. Group No.
15. Correct Pickpos.
3. PICK & MOUNT INFO. parameters
21. Pick Angle deg
This parameter specifies the angle through which the mounter head rotates
to pick up a component on the feeder. This setting determines the orienta-
tion of the component (recognition reference) when it is recognized and
displayed on the vision monitor. Normally, set this parameter to 0° for
horizontally long components in the loading position, and set to 90° for
vertically long components. Select the correct pickup angle referring to the
table below.

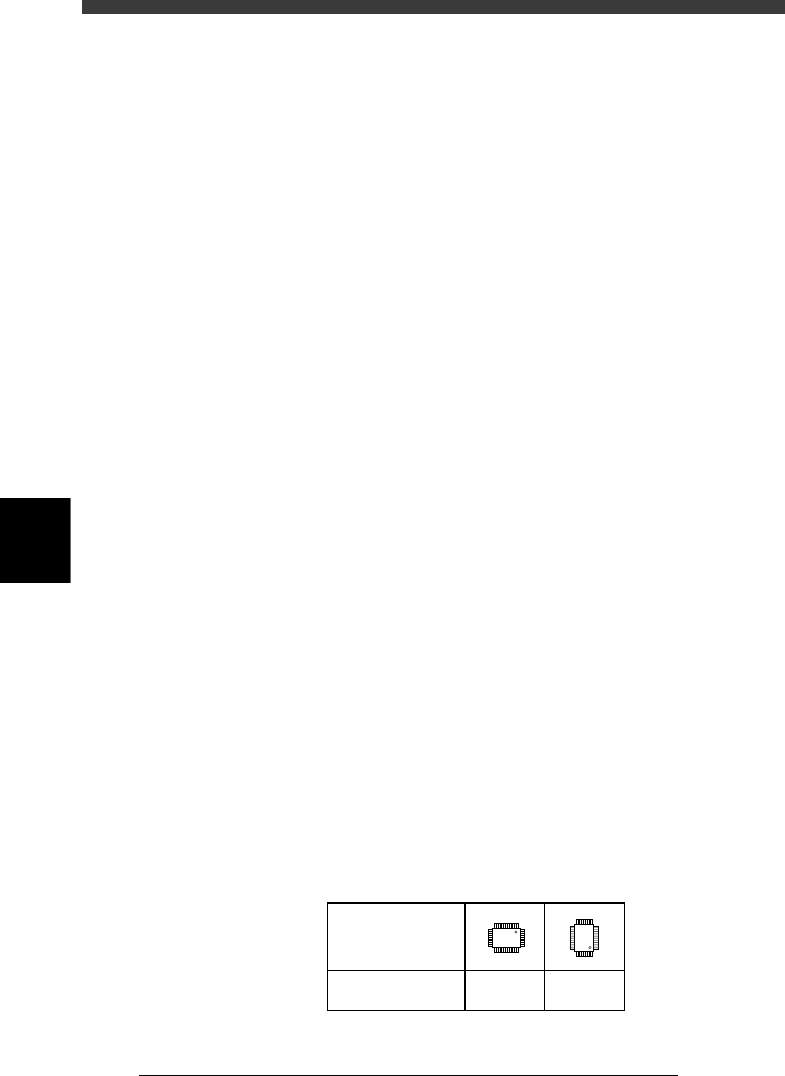

QFP pickup angle
25508-C0-00
0 deg. 90 deg.
Loading position
Pickup angle
NS
E
W
N
S
WE
