5
-99
EPD8013110
Operation
Chapter 5
5
Creating the PCB data
6.2.3 Setting the PCB origin for multi-block PCB
In the case of multi-block PCBs, the PCB origin should be set to the same
position as the block repeat position of the 1st block.

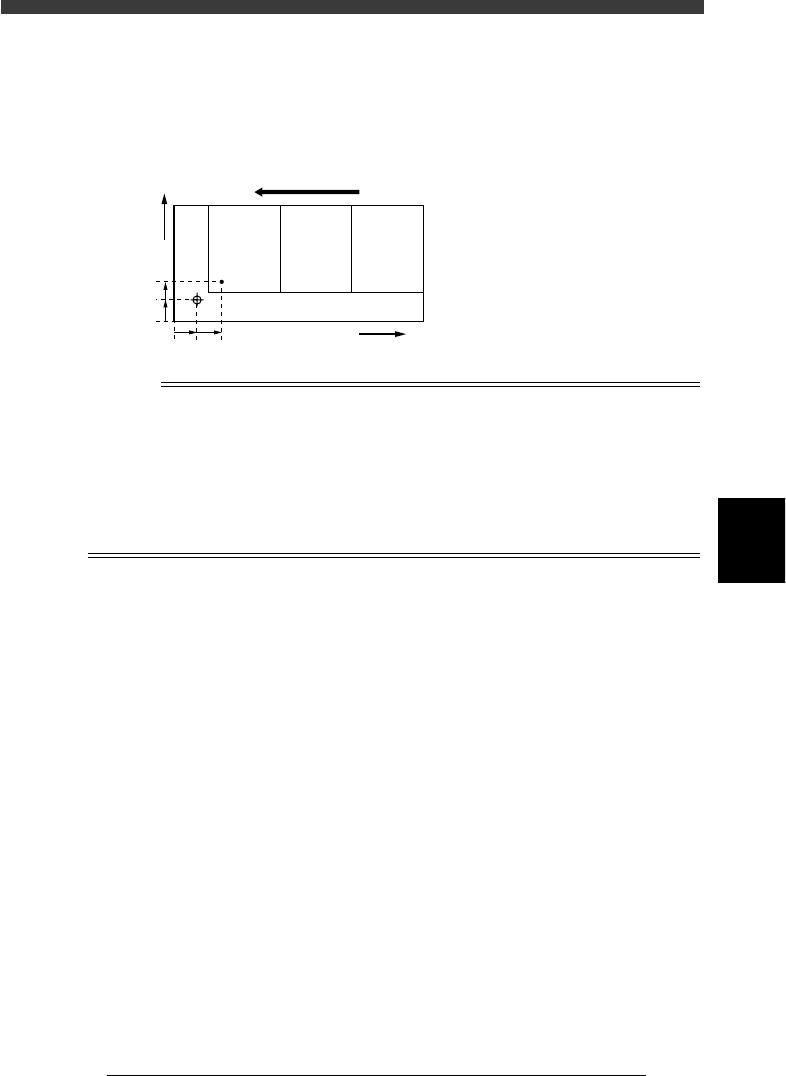

PCB origin position for multi-block PCB
23545-C0-00
5mm
3mm
5mm 5mm
X
Y
No.1 No.2 No.3
Direction of PCB flow
When setting the PCB origin at the
block repeat point in the 1st block
in right-to-left flow as shown at left,
enter “X=5.00” and Y=3.00.
Reference
If you are not sure the correct coordinates of the PCB origin, the following procedure will
prove convenient.
1. Set the teaching conditions by selecting the teaching table (A or B table), “Camera” as
the teaching unit and “NotUse” for fiducial correction.
2. Manipulate the YPU joystick to move the camera so that the center of the
PCB origin is positioned in the center of the vision monitor.
3. When the position is determined, press the [F10] key, and the teaching
position is now entered.
5
-100
EPD8013110
Operation
Chapter 5
5
Creating the PCB data
7. Creating the mount information
The mount information specifies the data on mounting position coordi-
nates, component numbers to be mounted and other information related to
mounting.
Flow chart for creating the mount information
23546-C0-00
Enter
land pattern name
Open Mount Info.
Enter
component number
Teach
mounting position
Enter XY data
Enter R data
Check head No.
Set fiducial mark
Chapter 6
☞
5
☞
Enter XY data
by teaching?
Is PCB clamped?
Set badmark
Set to "Exec"
Clamp PCB
YES
NO
YES
NO
Chapter 6
☞
7.3
☞
5
-101
EPD8013110
Operation
Chapter 5
5
Creating the PCB data
VIOS structure for Mount Info.
23547-C0-00
A1 MAIN WINDOW
A2 SUB WINDOW
A3 VIEW DATABASE NO.
A4
VISION ALIGNMENT DIC.
A5
A6
A7 FIND NEXT
A8
A9
A0 RETURN TO EDIT
B1 ADJUST ASSISTANT
B2 DATABASE UTILITY
B3
B4
DRAW THE SHAPE (CMP)
B5
B6 SET PALLET
B7 CONVEYOR UNITS
B8
B9
B0
TEACH, TRACE CONDITION
A/DISPLAY
B/UTILITY
C/EDIT_TOOL
D/FILE
PCB Info.
Mount Info.
Component Info.
Mark Info.
Blk Repeat Info.
Local Fidu.Info.
LocalBadMrkInfo.
1/OPERATION/M 2/DATA/M 3/MAINTE/M 4/SHELL/M 0/EXIT
1/EDIT_DATA
2/DATA_
GENERATOR
3/DATABASE 4/MANUAL 0/EXIT
