6
-6
EPD8013110
Operation
Chapter 6
6
Using various functions

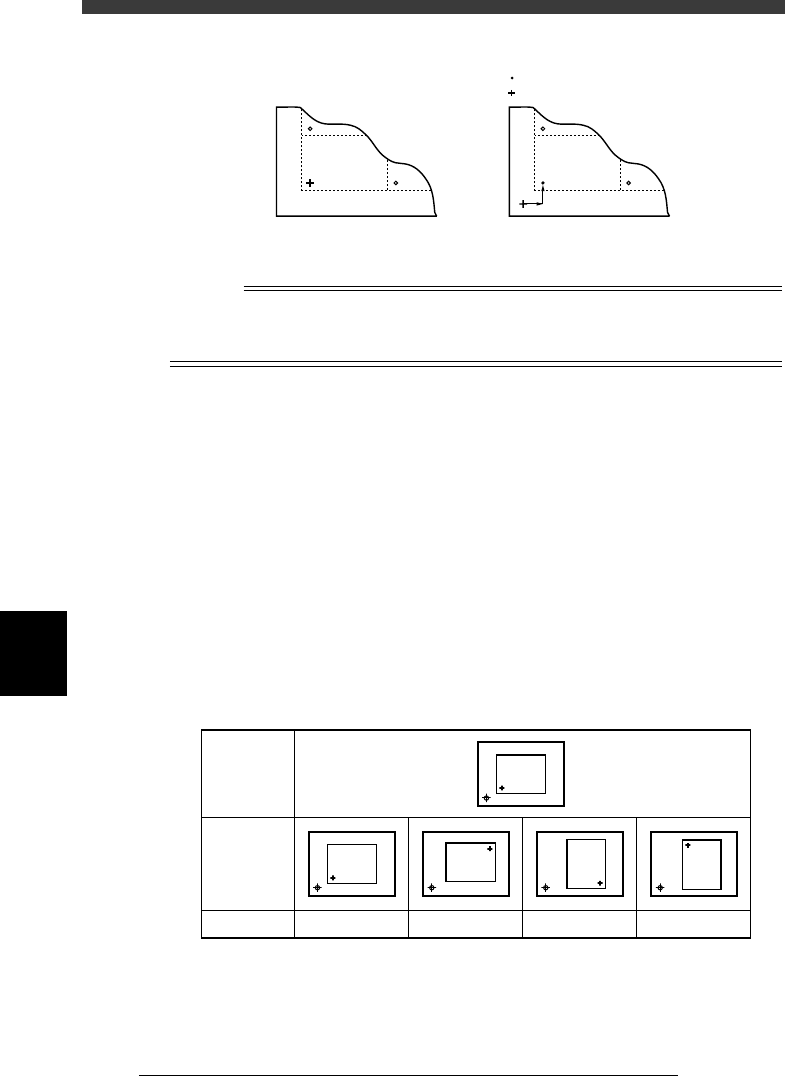

XY data
23603-C0-00
X
Y
Block repeat No.1
PCB origin
PCB origin is at a position
other than block repeat No.1
PCB origin is at the same
position as block repeat No.1
Reference
For details on the PCB origin, refer to “6. Creating the PCB information” in Chapter 5.
You can use teaching to enter the XY data. Refer to “12.2 Teaching” in Chapter 5 for the
teaching procedure.
3. In the R column, enter the rotation angle of each block with respect to
the reference block. Be sure to enter “0.00” in the R column of the
reference block.
4. Set the “Skip?” column to “Exec” or “Skip”.
Set to “Exec” for the block on which you want to mount components,
and set to “Skip” when you do not want to mount.
4 Register the necessary data on all other blocks in the No.2
and lower lines.
1. Type a comment.
2. Enter the XY data on the origin of each block relative to the PCB origin.
You can also perform teaching input. (See “12.2” in Chapter 5.)
3. In the R column, enter the rotation angle of each block with respect to
the reference block.
Block repeat R data setting
25601-C0-00
Block
direction
R data
Reference
block
direction
Block
0 deg.
Block
Block
180 deg.
Block
90 deg.
Block
-90 deg.
4. Set the “Skip?” column to “Exec” or “Skip”.
Set to “Exec” for the block on which you want to mount components,
and set to “Skip” when you do not want to mount.
6
-7
EPD8013110
Operation
Chapter 6
6
Using various functions
5 Save the data.
Press the [ESC] key, then select <2/1/D8 SAVE PCB DATA> and press the
[ENTER] key.
6 Complete the PCB information.
If the BLOCK Badmark column in the PCB information is not yet specified,
set it here. Refer to “6. Using the badmark” in this chapter for details on
how to set.
7 Enter the mount information.
While referring to “7. Creating the mount information” in Chapter 5, enter
the reference block (block repeat No.1) mount data. In the XY columns,
enter the coordinate data at the center of the mounting position relative to
block repeat No.1. You can also perform teaching input. (See “12.2” in
Chapter 5.)
After the mount information has been entered, complete the PCB data just
as with normal PCBs, referring to Chapter 5.
c
CAUTION
Always set block repeat data AFTER setting the PCB Origin in the PCB information but
BEFORE setting the mount information.
6
-8
EPD8013110
Operation
Chapter 6
6
Using various functions

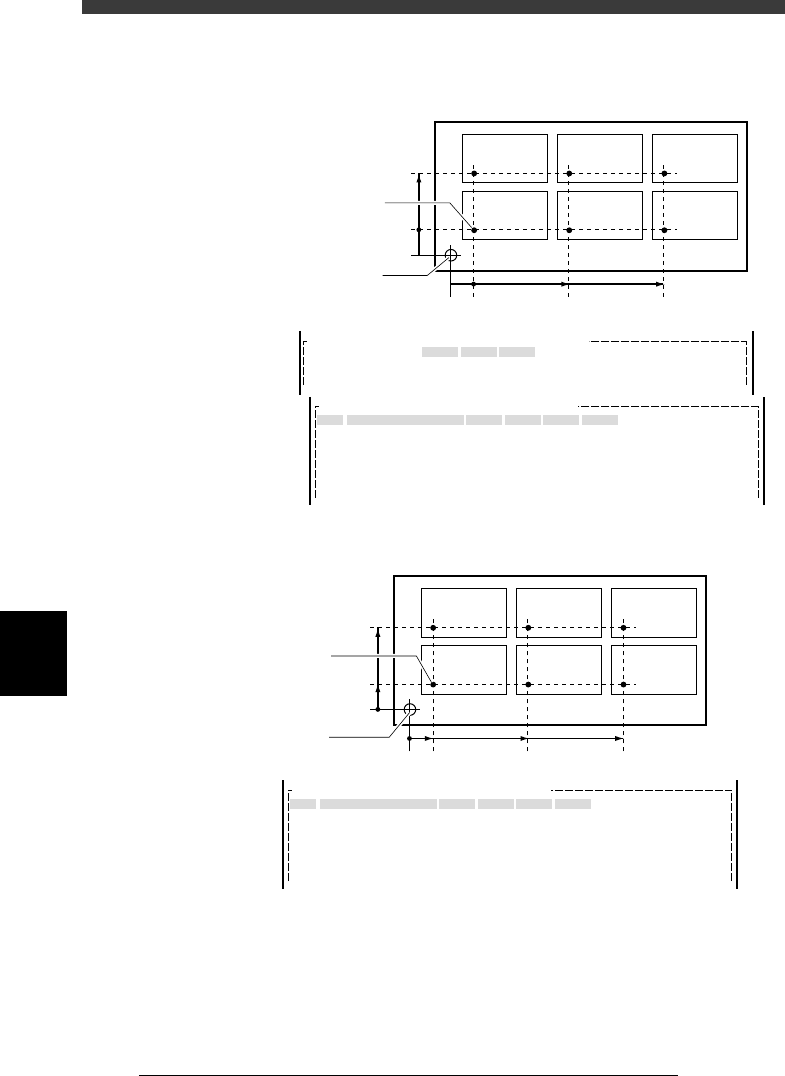

The illustrations below show examples for block repeat settings.
When the PCB origin is at the same position as block repeat No.1
27602-C0-00
-5
-5
0
0
40
50 100
BLOCK
1
BLOCK
2
BLOCK
3
BLOCK
4
BLOCK
5
BLOCK
6
No.
1
2
3
4
5
6
X
0.00
50.00
100.00
0.00
50.00
100.00
Y
0.00
0.00
0.00
40.00
40.00
40.00
Block Comment
BLOCK_1
BLOCK_2
BLOCK_3
BLOCK_4
BLOCK_5
BLOCK_6
Skip?
Exec
Exec
Exec
Exec
Exec
Exec
R
0.00
0.00
0.00
0.00
0.00
0.00
OBJ : Blk Repeat Info.PCB :
MARK
X/X1
5.00
Y/Y1
5.00
OBJ :PCB Info.PCB :
PCB Origin
PCB origin = block repeat No.1
Locate pin position
When the PCB origin is at the same position other than block repeat No.1
27603-C0-00
100
0
15
55
60 110
BLOCK
1
BLOCK
2
BLOCK
3
BLOCK
4
BLOCK
5
BLOCK
6
No.
1
2
3
4
5
6
X
0.00
50.00
100.00
0.00
50.00
100.00
Y
0.00
0.00
0.00
40.00
40.00
40.00
Block Comment
BLOCK_1
BLOCK_2
BLOCK_3
BLOCK_4
BLOCK_5
BLOCK_6
Skip?
Exec
Exec
Exec
Exec
Exec
Exec
R
0.00
0.00
0.00
0.00
0.00
0.00
OBJ : Blk Repeat Info.PCB :
Block repeat No.1
PCB origin
