5 -70 EPD8013110 Operation Chapter 5 5 Creating the PCB data 7 Perform teaching for the pickup position. Referring to the procedure below , perform teaching for the coordinates of the pickup position for a component. 1. …
5
-69
EPD8013110
Operation
Chapter 5
5
Creating the PCB data
3.8.2 When not optimizing the feeder set
positions
If you want to set the stick feeder at a particular position and do not want
to perform data optimization (automatic search for optimum feeder set
positions), follow these steps.
1 Set the stick feeder on the feeder plate.
Install the stick feeder with components loaded, onto the feeder plate at
the same position as is set in actual PCB production.
Reference
For details on loading components into a stick feeder or setting a stick feeder on the
feeder plate, refer to the feeder user’s manual.
2 Select the component data.
Move the cursor to the data line of the component which is supplied by
the stick feeder.
3 Set the “Comp. Package” parameter in the BASIC INFO.
window to “Stick”.
1. Press the [TAB] key to move the cursor into the BASIC INFO. sub-
window on the Component Info. screen. If the BASIC INFO. sub-
window is not displayed, press the [F4] key to switch the sub-window
display.
2. Align the cursor with “Comp. Package” and press the [INS], [DEL] or
[SPACE] key to set this parameter to “Stick”.
4 Set the “Feeder Type” parameter.
Set this parameter according to the stick feeder type you will use. See Step
4 in the preceding section for detailed information.
5 Set the Feeder Set No. in the BASIC INFO. sub-window.
Enter the number of the feeder set position at which the stick feeder
knockpins are inserted into the feeder plate.
6 Set the Pos. Definition parameter .
Set this parameter to “Automatic” when not using a multi-stick feeder, and
advance to Step 8. When using a multi-stick feeder, set this parameter to
“Teaching” and proceed to Step 7.
5
-70
EPD8013110
Operation
Chapter 5
5
Creating the PCB data
7 Perform teaching for the pickup position.
Referring to the procedure below, perform teaching for the coordinates of
the pickup position for a component.
1. Move the cursor to “Feeder Pos_X mm”.
2. Manipulate the YPU joystick to move the camera directly above the
component to be picked up.
Making sure that the cross cursor on the vision monitor is positioned at
the center of the component, press the [F10] key twice to perform
teaching.
The teaching position coordinates relative to the machine origin have
now been entered.The teaching conditions should be set as follows:
Teaching unit : Select “camera”
Speed : Select a slow speed (SPEED=20 to 40).
Fiducial : Select “NotUse”.
8 Set the Use feeder opt. parameter in the OPTION INFO.
sub-window to “No”.
Use the [INS], [DEL] or [SPACE] key to set this parameter to “No”.
n
NOTE
When the stick feeder needs to be installed at a particular position, you cannot make off-
line settings. Be sure to use teaching to enter the correct pickup point.
5
-71
EPD8013110
Operation
Chapter 5
5
Creating the PCB data
3.9 Registration location of component
data
Component data can be registered in the “Component Info.”, “Component
Database” and “STATIC COMPONENTS” information. To create PCB
data more efficiently, it is important to register the component data in the
appropriate location by considering how the component is to be used. Refer
to the following flow chart when determining the registration location.

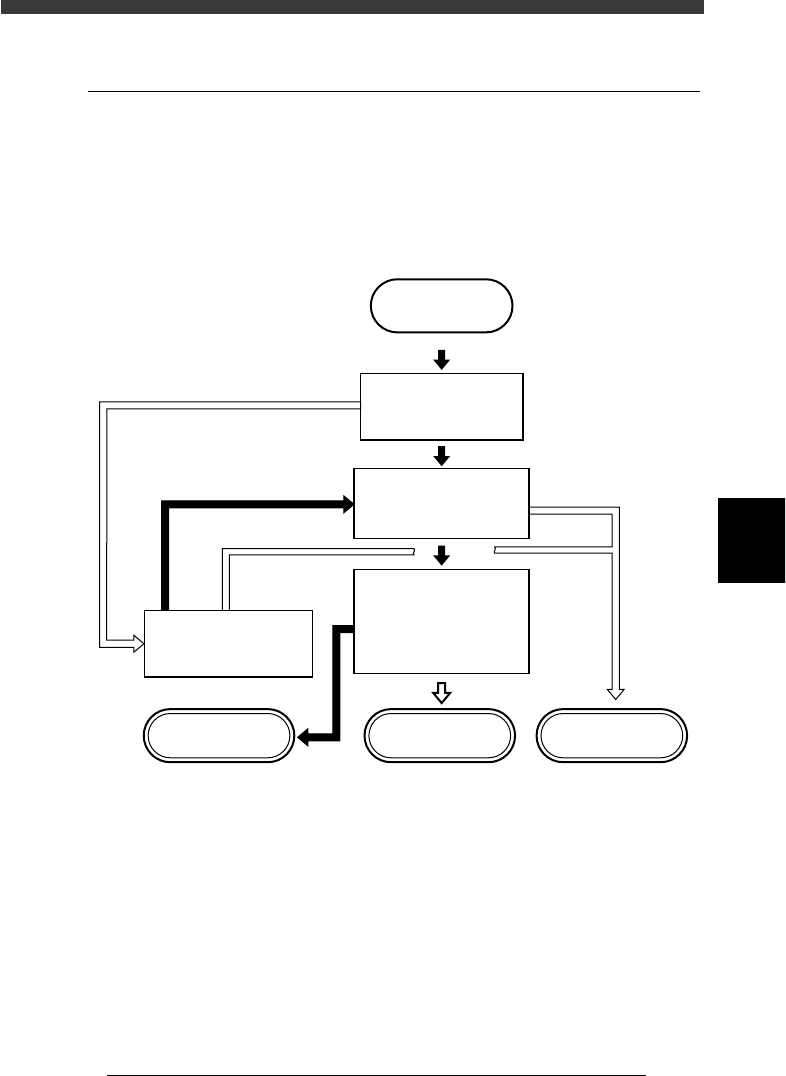

Flow chart for determining component registration location
23527-C0-00
START
Is the same type of
component registered
in YAMAHA database?
Do you use this component
in different PCB
production?
Do you want to save this
data along with various
parameter settings?
Do you want to change
component setup ?
STATIC_COMPONENT
information
Component database Component Info.
YES
YES
YES
NO
NO
NO
NO
YES
