4 -7 EPD8013110 Operation Chapter 4 4 Daily operation 3.1 T urning the power ON 1 T urn the main power ON. T urn on the main power switch at the front lower right of the machine, by turning it to the right. The machine b…
4
-6
EPD8013110
Operation
Chapter 4
4
Daily operation
4
3. Starting the machine
This section describes the starting operations from power ON through
return-to-origin. You must perform the following operations before begin-
ning any work such as creation of new PCB data and PCB production.
Basic operation flow chart
23403-C0-00
Servo-motor
ON
Safety check
Main power
supply ON
1/OPERATION/M
1/RUNNING
D2 INIT. SERVO ORIGIN
(Return to origin)
4
-7
EPD8013110
Operation
Chapter 4
4
Daily operation
3.1 Turning the power ON
1
Turn the main power ON.

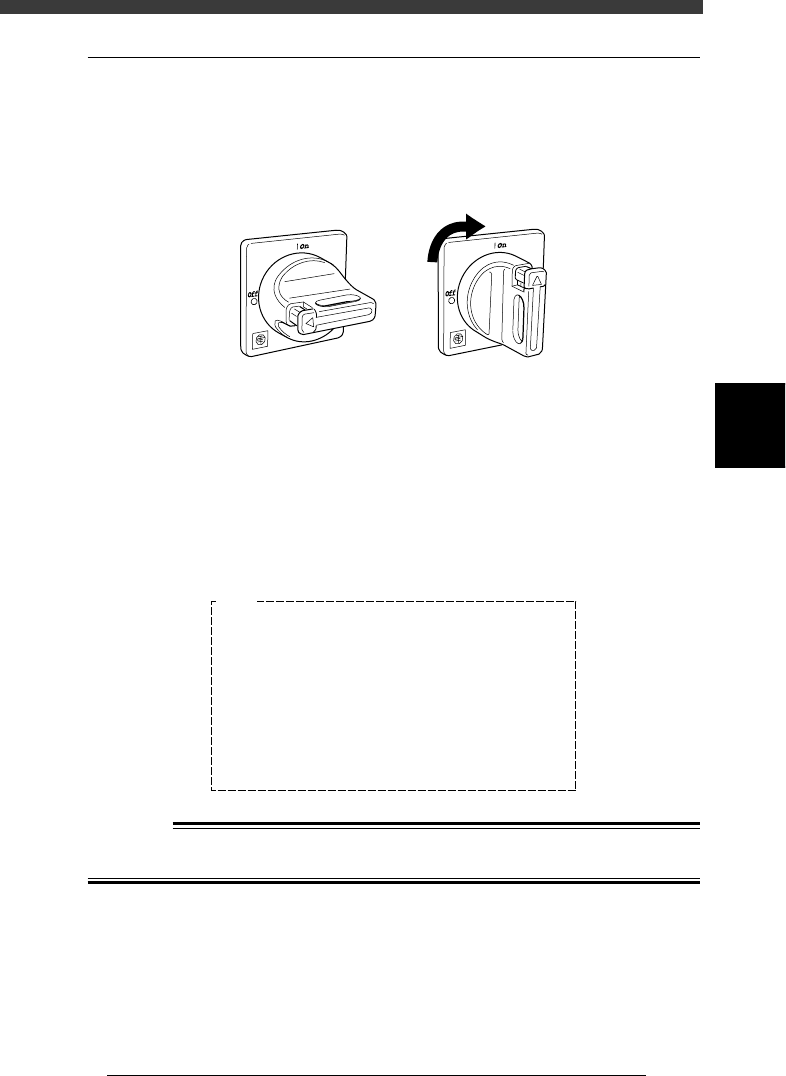

Turn on the main power switch at the front lower right of the machine, by
turning it to the right. The machine begins to load the program necessary
for machine operation.
Main power switch
21401-C0-00
ONOFF
2
Follow the instruction on the daily check items displayed
on the operation monitor.
The daily check items are displayed on the operation monitor after the
initial processing. Check each item as instructed and then press the
[ENTER] key. If maintenance is required, refer to Chapter 2 in the mounter
service manual.
Daily check items displayed on the operation monitor
27401-C0-00
E1045
<<Daily Examination>>
>NOZZLE TIP
>LEAF SPRING
>NOZZLE HOLDER
>LASER WINDOW
>CAMERA LENS
>FEEDER
>FEEDER PLATE
Please refer to the manuals in detail.
Ensure SAFETY and hit [ENTER] key.
<<Check>>
Break, Solder
Spring func.
Spring func.
Spring func.
Cleaning
Cleaning
Shutter
Cleaning
<<Predicted Error>>
Pick-up, Recognition
Pick-up, Comp. damage
Placement, Nozzle change
Pick-up, Comp. damage
Recognition
Recognition
Feeding, Pick-up
Placement, Pick-up
w
WARNING
BE SURE TO KEEP THE EMERGENCY STOP BUTTON PRESSED DURING
INSPECTION.
4
-8
EPD8013110
Operation
Chapter 4
4
Daily operation
4
3
Turn the servo ON.
When the daily check item screen disappears and the VIOS main menu
screen is displayed, release the emergency stop button and press the
[READY] button on the YPU or operation panel. The message “EMER-
GENCY STOP” disappears, and each axis is servo-controlled.
VIOS main menu display
27402-C0-00
<<<APPLICATION>>> 1/OPERATION/M 2/DATA/M 3/MAINTE/M 4/SHELL/M 0/EXIT
DATA[non ]
RUNNING
PRD.DATA
PRD.HISTORY
MANUAL
:Production, Warming up
:PCB data modification
:Production history
:Manual operation
<<<OPERATION MANAGER>>>
supports daily production.
MODE
