1 -7 EPD8013110 Operation Chapter 1 1 Par t names and functions T ype A nozzles T ype A nozzles (T ypes 71A to 74A and 76A) can be attached to all heads of standard 8 in-line head assemblies or Heads 1, 3, 5 and 7 of FNC…
1
-6
EPD8013110
Operation
Chapter 1
1
Part names and functions
2.2 Nozzle types
To ensure stable component pickup, the correct nozzle that matches the
component must be used. The table below shows typical nozzles which can
be attached to each head.
Reference
To check the component types that can be picked up by each nozzle, refer to “Nozzle
table” listed in the supplement at the end of this manual.
On the standard YV180X, five types of nozzles (Types 71A to 74A and
76A) can be chosen and attached to all heads (Heads 1 to 8).
On the YV180X head assembly with optional FNC (flying nozzle change)
functions, Heads 2, 4, 6 and 8 accept FNC nozzles (Types 71F, 72F, 73F)
for flying nozzle change.
Nozzle types for YV180X
25101-D8-00
Nozzle Type
Head No.
Standard
Head Assembly
Typical Components
Type 71A
Type 71F
(FNC)
Type 72A
Type 72F
(FNC)
Type 73A
Type 73F
(FNC)
Type 74A
Type 76A
1005 size chip components, etc.
1608 to 3216 size components,
mini-mold transistors, etc.
3245 to 7353 size components,
5 to 15mm SOP, etc.
15 to 20mm SOP,
10×10 to 25×25mm QFP, BGA, etc.
Melf component
(cylindrical chip) only
1 to 8
-
1 to 8
-
1 to 8
-
1 to 8
1 to 8
1, 3, 5, 7
2, 4, 6, 8
1, 3, 5, 7
2, 4, 6, 8
1, 3, 5, 7
2, 4, 6, 8
1, 3, 5, 7
2, 4, 6, 8
FNC Head
Assembly
1
-7
EPD8013110
Operation
Chapter 1
1
Part names and functions
Type A nozzles
Type A nozzles (Types 71A to 74A and 76A) can be attached to all heads
of standard 8 in-line head assemblies or Heads 1, 3, 5 and 7 of FNC head
assemblies.
To attach a Type A nozzle, insert the nozzle between the nozzle holder leaf
springs while aligning the nozzle grip piece with the leaf springs. To
remove the nozzle from the nozzle holder, gently pull it downwards.
Standard Type A nozzles
30042016-00
Type 76AType 74AType 73AType 72AType 71A
Attaching/detaching Type A nozzle
30042012-A0
Nozzl
e
Leaf spring
Nozzle grip piece
w
WARNING
WHEN ATTACHING OR DETACHING A “TYPE A” NOZZLE, ALWAYS MAKE
SURE THAT THE MACHINE IS TURNED OFF OR IN EMERGENCY STOP.
1
-8
EPD8013110
Operation
Chapter 1
1
Part names and functions

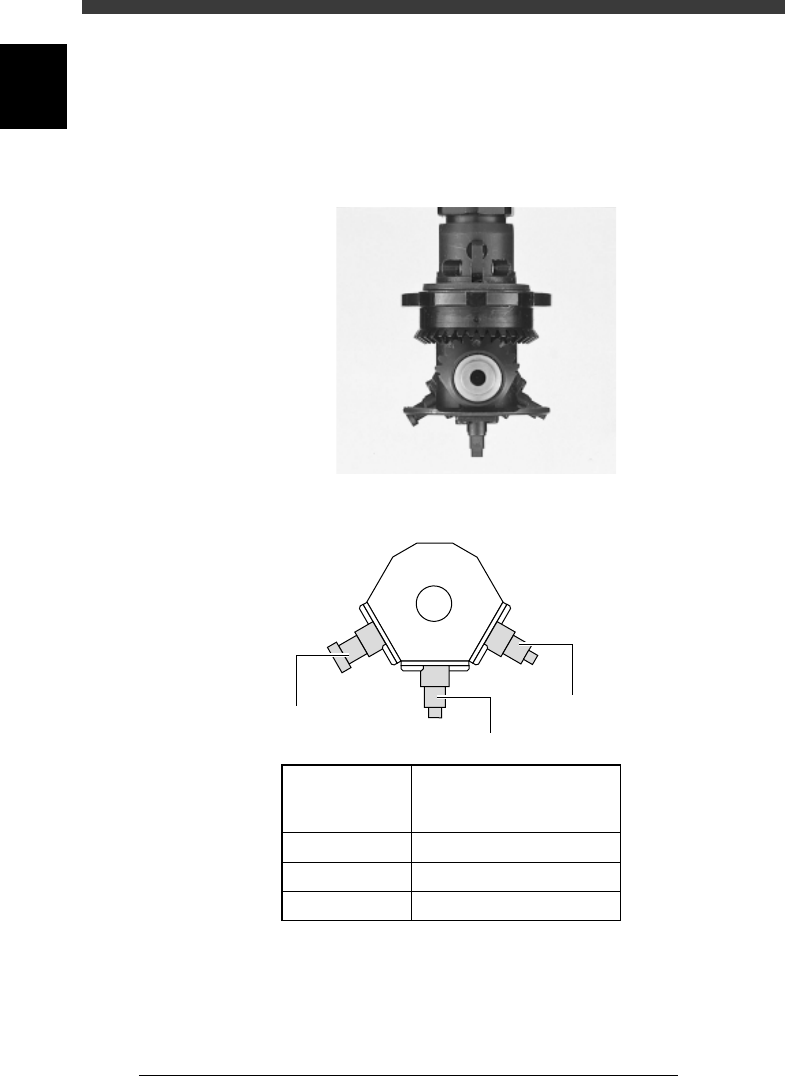

Type F nozzles (Flying nozzles)
Heads 2, 4, 6 and 8 of FNC head assemblies have a flying nozzle changer
that performs automatic nozzle change at high speeds. Type F nozzles
(Types 71F, 72F and 73F) are specifically used with this flying nozzle
changer.
Flying nozzle changer (viewed from the gear side)
28102-D8-00
FNC nozzles
23103-D8-00
Type 72F
Type 73F
Type 71F
2
1
3
1 to 3 : Index holder No.
Index holder No.
1
2
3
Standard nozzles
attached to FNC head
Type 71F
Type 72F
Type 73F
