5
-55
EPD8008100
Operation
Chapter 5
5
Creating the PCB data
1. BASIC INFO. parameters
1. Comp. Package
Refer to the description in “3.3.1 Standard chip components” or “3.8
Setting the stick feeder component data” when stick feeders are used.
2. Feeder Type
Refer to the description in “3.3.1 Standard chip components” or “3.8
Setting the stick feeder component data” when stick feeders are used.
3. Required Nozzle
If using a custom nozzle (available from YAMAHA as option) designed for
the connector, select the corresponding type from among “Sp. Nozzles A to
F”. In other cases, select the optimum nozzle that matches the connector
size from among the nozzle types for SOP components.
4. Feeder Set No.
Enter the feeder set number of the position at which the feeder is installed.
This parameter setting is unnecessary when the Use feeder opt. parameter
is set to “Yes.”
5. Pos. Definition
Set to “Automatic” when the Comp. Package parameter is set to “Tape”.
When you are using a stick feeder, refer to “3.8 Setting the stick feeder
component data” in this chapter.
6. Feeder Pos_X
Enter the position at which the head picks up the component from the
feeder. These parameters are skipped when the Pos. Definition parameter
is set to “Automatic”. For more details, refer to “3.8 Setting the stick
feeder component data” in this chapter.
2. OPTION INFO. parameters
For descriptions of the following OPTION INFO. parameters, refer to
“3.3.1 Standard chip components” in this chapter.
11. FixCmpRef.
12. Alt. Comp.
13. Use feeder opt.
14. Comp. Group No.
15. Correct Pickpos.
3. PICK & MOUNT INFO. parameters
21. Pick Angle deg
This parameter specifies the angle through which the mounter head rotates
to pick up a component on the feeder. This setting determines the orienta-
tion of the component (recognition reference) when it is recognized and
displayed on the vision monitor. The pickup angle of connectors must be
specified so that their leads face the E direction. Select the correct pickup
angle according to the loading position of the component as shown in the
table below.
5
-56
EPD8008100
Operation
Chapter 5
5
Creating the PCB data

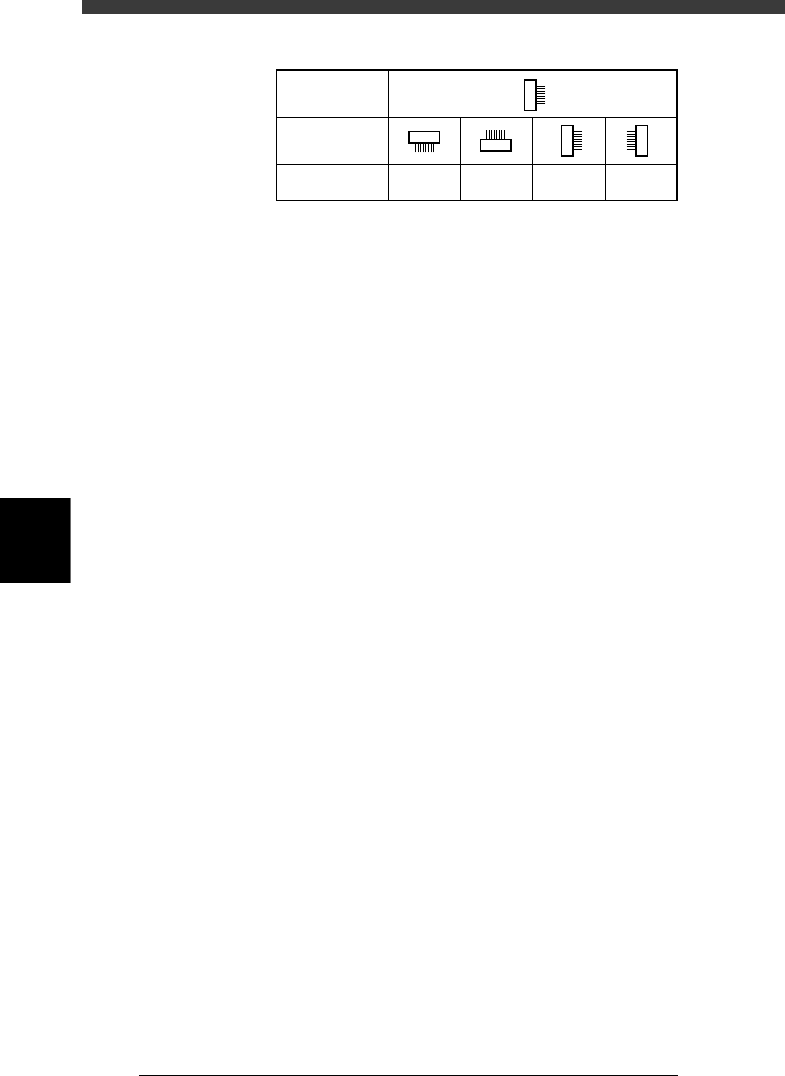

Connector pickup angle
25509-C0-00
0 deg. 180 deg. 90 deg. -90 deg.
Loading
position
Recognition
reference
Pickup angle
22. Pick Timer, Mount Timer
Refer to “3.4.2 SOP components” in this chapter.
For descriptions of the following PICK & MOUNT INFO. parameters,
refer to “3.3.1 Standard chip components” in this chapter.
23. Pick Height, Mount Height
24 Pick Sequence
25. Mount Action
26. Vacuum Check
27. Pick Vacuum, Mount Vacuum
28. Conv. Y Speed
4. DUMP INFO. parameters
31. Dump Way
Set to “Dump POS”. Refer to the Discard point parameter explained in the
mounter service manual.
32. Retry Times
See the description of “3.3.1 Standard chip components”.
5. VISION INFO. parameters
41. Alignment Group
Set to “Connector”.
42. Alignment Type
Set to “Con-E”.
For descriptions of the following VISION INFO. parameters, refer to
“3.3.1 Standard chip components”.
43. AlignmentModule
44. Light Selection
45. Lighting Level
46. Comp. Threshold
47. Comp. Tolerance
48. Search Area
49. Datum Angle
5
-57
EPD8008100
Operation
Chapter 5
5
Creating the PCB data
50. Comp. Intensity
51. MultiCam Marker
6. SHAPE INFO. parameters
Set these parameters after specifying the VISION INFO. parameters. If
“Alignment Type” is undefined, the following parameters are not dis-
played.
61. Body Size X, Body Size Y
Enter the correct dimensions including the leads, measured with a vernier
caliper or micrometer.
62. Body Size Z
Enter the correct thickness measured with a vernier caliper or micrometer.
63. Ruler Offset
Refer to the description in “3.4.1 Mini-mold transistors/SOT”.
62. Ruler Width
Refer to the description in “3.4.1 Mini-mold transistors/SOT”.
63. LeadNumber
Enter the number of leads existing on one side in either E or W direction.
64. ReflectLL
Enter the projected length of leads which reflect light during recognition.
Use the default setting in most cases.
65. LeadWidth
Enter the correct lead width.
66. LeadPitch
Enter the correct lead pitch (lead-to-lead spacing).

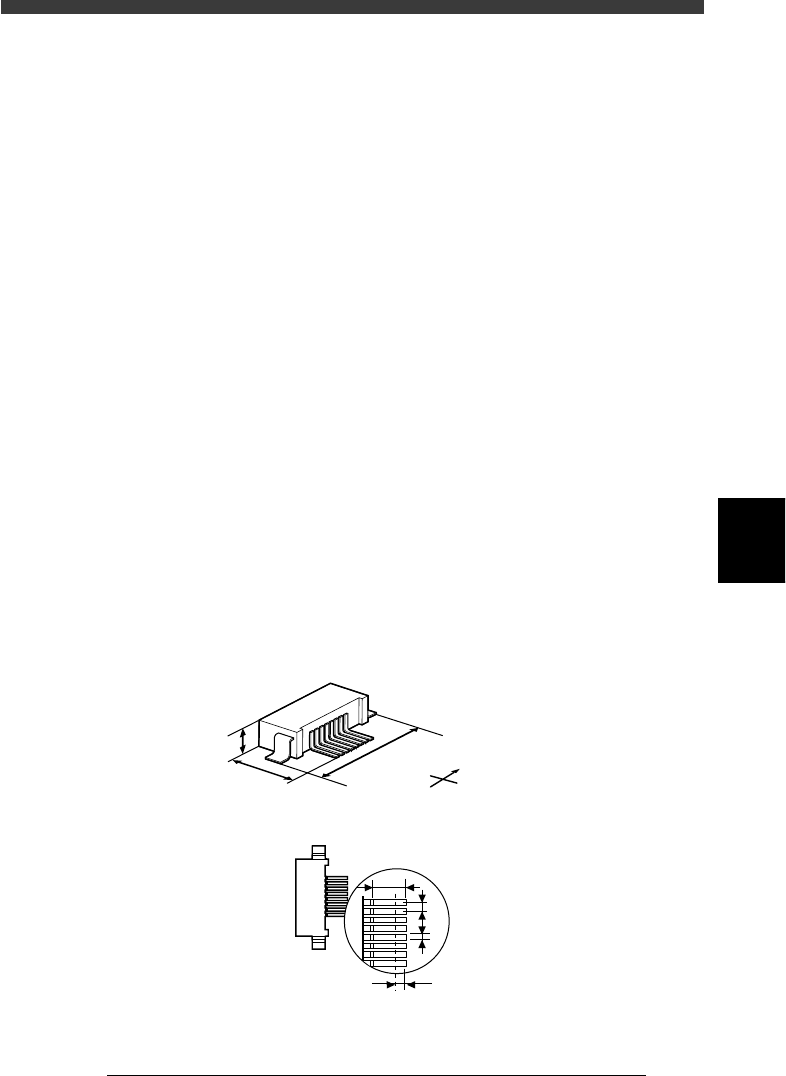

SHAPE INFO. parameters for connectors
23517-C0-00
S
N
W
E
B
C
A
E
F
G
A : Body Size X
B : Body Size Y
C : Body Size Z
D : Ruler Offset
E : Reflect LL
F : LeadPitch
G : LeadWidth
Bottom view
D
