4.1 Inspection Check List

SERVICE MANUAL

RH5

4.1−19

DA3SEC−80−020−B0

3. Drawing out the filter case

Draw out the filter from Panadac 791.

=NOTE=

Be careful not to get the filter case caught in the flat cable.

Flat cable

Filter case

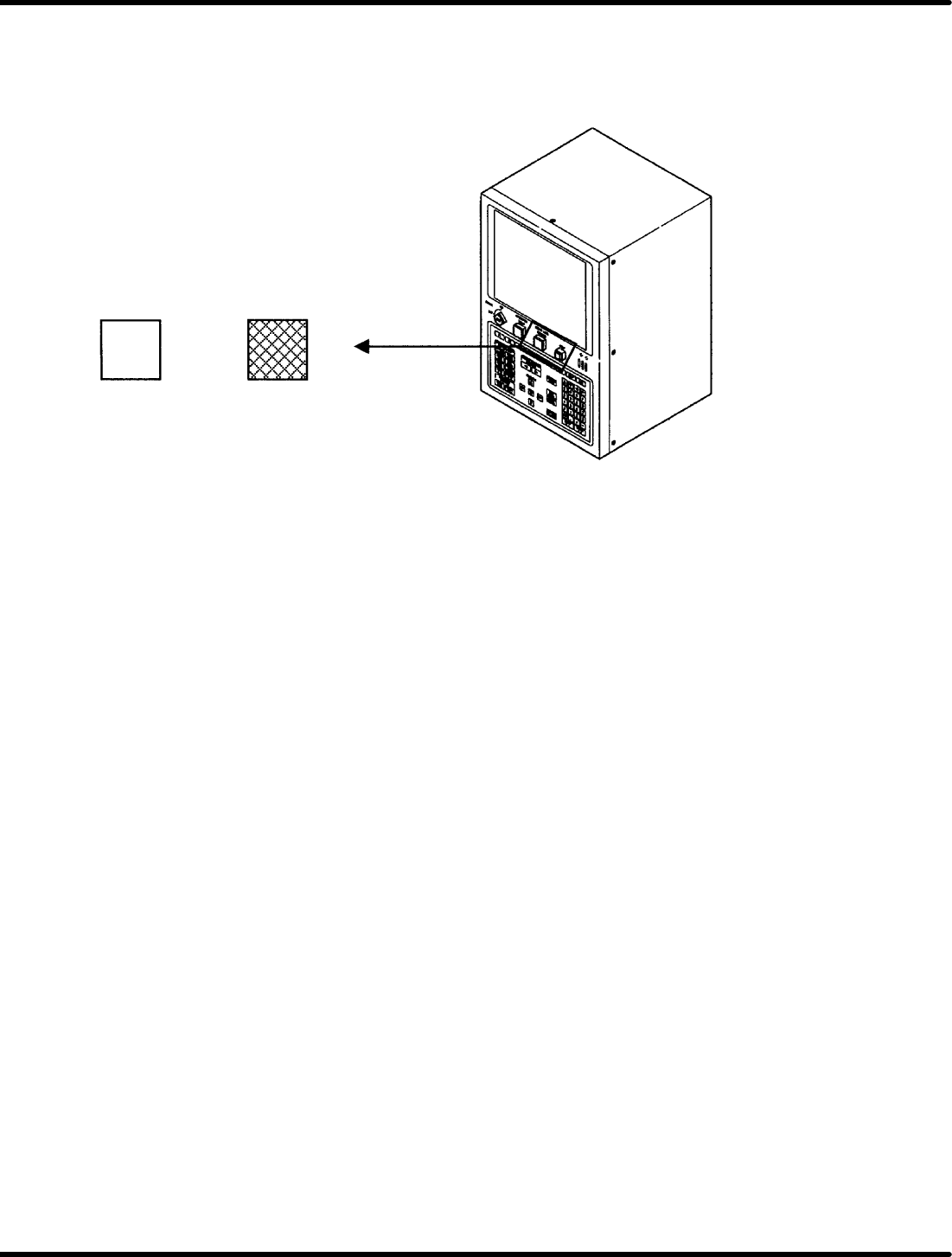

Drawing out the Filter Case

4. Cleaning the filter

Take out the filter from the filter case and remove any adhered dust using a vacuum cleaner.

=CHECK=

Replace the filter if it is considerably dirty or deteriorated.

5. Setting the filter

Set the filter to the case and the front cover.

Filter case

Hexagon socket

head cap bolt

Front cover

Filter holder

Filter

Setting the Filter

6. Setting the filter case

Set the filter case to the Panadac 791.

=CHECK=

Be careful not to get the filter case caught in the flat cable.

Flat cable

Filter case

Setting the Filter Case

RH5

4.1 Inspection Check List

SERVICE MANUAL

4.1−20

DA3SEC−80−020−B0

7. Attaching the front cover

Attach the front cover by securing the four cross−recessed machine screws.

8. Turning the power ON

Turn ON the main switch

OPERATION READY

ON OFF

Main Supply
