2.4 Control Configuration SERVICE MANUAL RH5 2.4−1 DA3SEC−82−130−B0 2.4 Control Configuration DA3SEC−82−130−B0 Sentence No. 2.4.1 Panadac−791 Board Configuration Use and connector arrangement of respective boards are as …
RH5
2.3 Sensor Layout
SERVICE MANUAL
2.3−6
DA3SEC−82−070−B0
= MEMO =
2.4 Control Configuration
SERVICE MANUAL
RH5
2.4−1
DA3SEC−82−130−B0
2.4 Control Configuration
DA3SEC−82−130−B0
Sentence No.

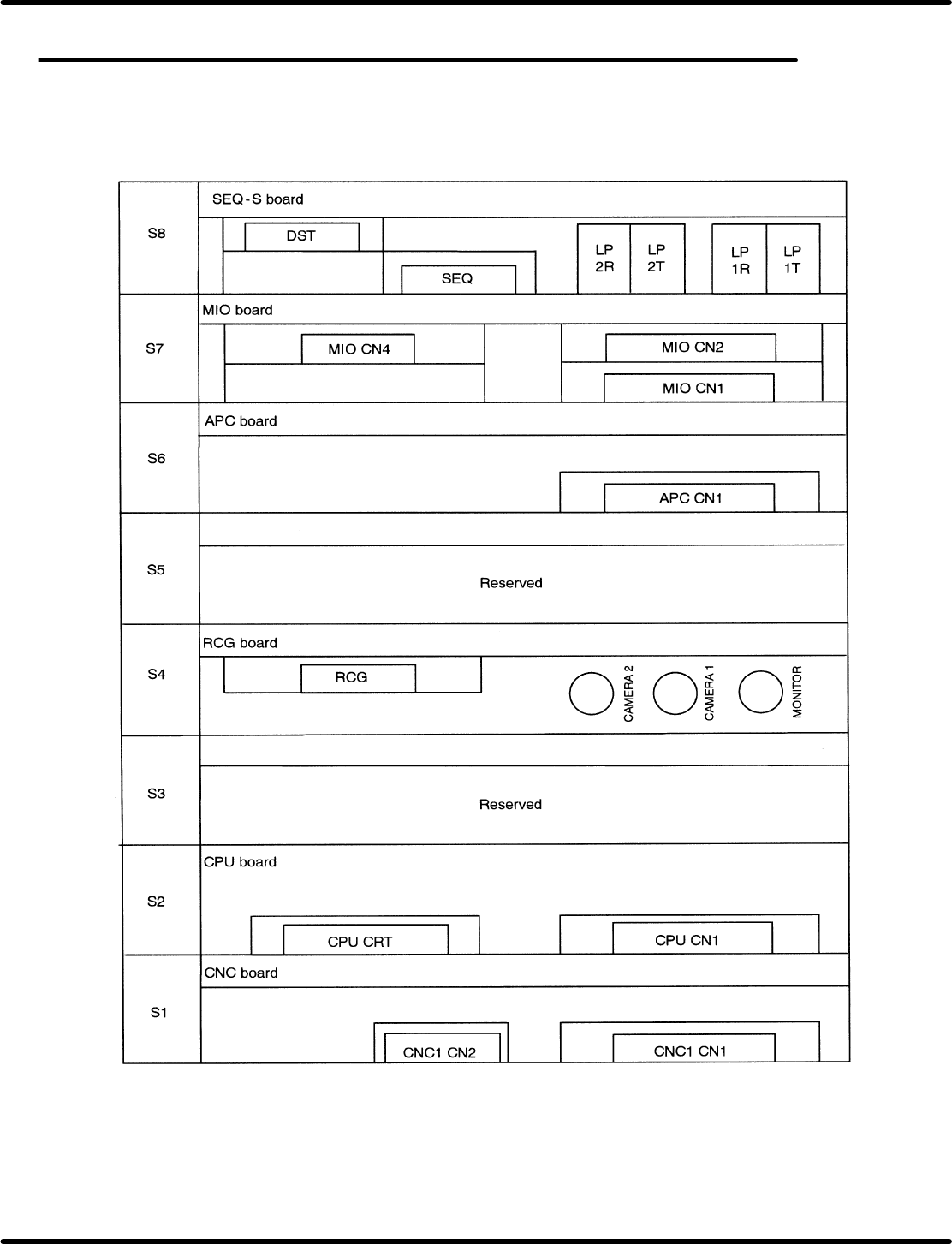

2.4.1 Panadac−791 Board Configuration
Use and connector arrangement of respective boards are as follows:
=REFERENCE=
Arrangements of S2 through S8 can be changed.
RH5
2.4 Control Configuration
SERVICE MANUAL
2.4−2
DA3SEC−82−130−B0
No. Part Name
1 CNC−4S (I) card
2 CPU−286E (I)−12 card
3 RCG (I) card
4 MIO E (I) card
5 SEQ−SE (I) card
