4.1 Inspection Check List SERVICE MANUAL RH5 4.1−13 DA3SEC−80−020−B0 4.1.1 1 Anvil Unit (Bottom) Oil tank Oiling Part number Oiling point Oil type Oil volume Period Lubrication method (1) Oil tank Machine oil Moder− ate …
RH5
4.1 Inspection Check List
SERVICE MANUAL
4.1−12
DA3SEC−80−020−B0
4.1.10 Anvil Unit (Top)
U Fixed/movable blade
(1) Pin pivot
(2) Oiling hole
(1) Pin pivot
Guide pin
Inspection
Period Inspection item
x Make sure that spiral cord is not damaged.
Daily x Make sure that cut & clinch claw is not worn or damaged.
x Make sure that lead guide pin is not worn or damaged.
Oiling
Part
number
Oiling point Oil type
Oil
volume
Period Lubrication method
(1) Pin pivot
Machine
Moder−
ate
x In
j
ect moderate amount o
f
(2) Oiling hole
Machine
oil
a
t
e
amount
Inject
moderate
amount
of
machine oil into the oiling hole.
Fixed blade
Daily
x Apply machine oil into the dust
cover with the camshaft stopped
at 200 to 320q in manual
operation.
Movable
blade
x Make sure that lubricant does not
come in contact.
4.1 Inspection Check List
SERVICE MANUAL
RH5
4.1−13
DA3SEC−80−020−B0

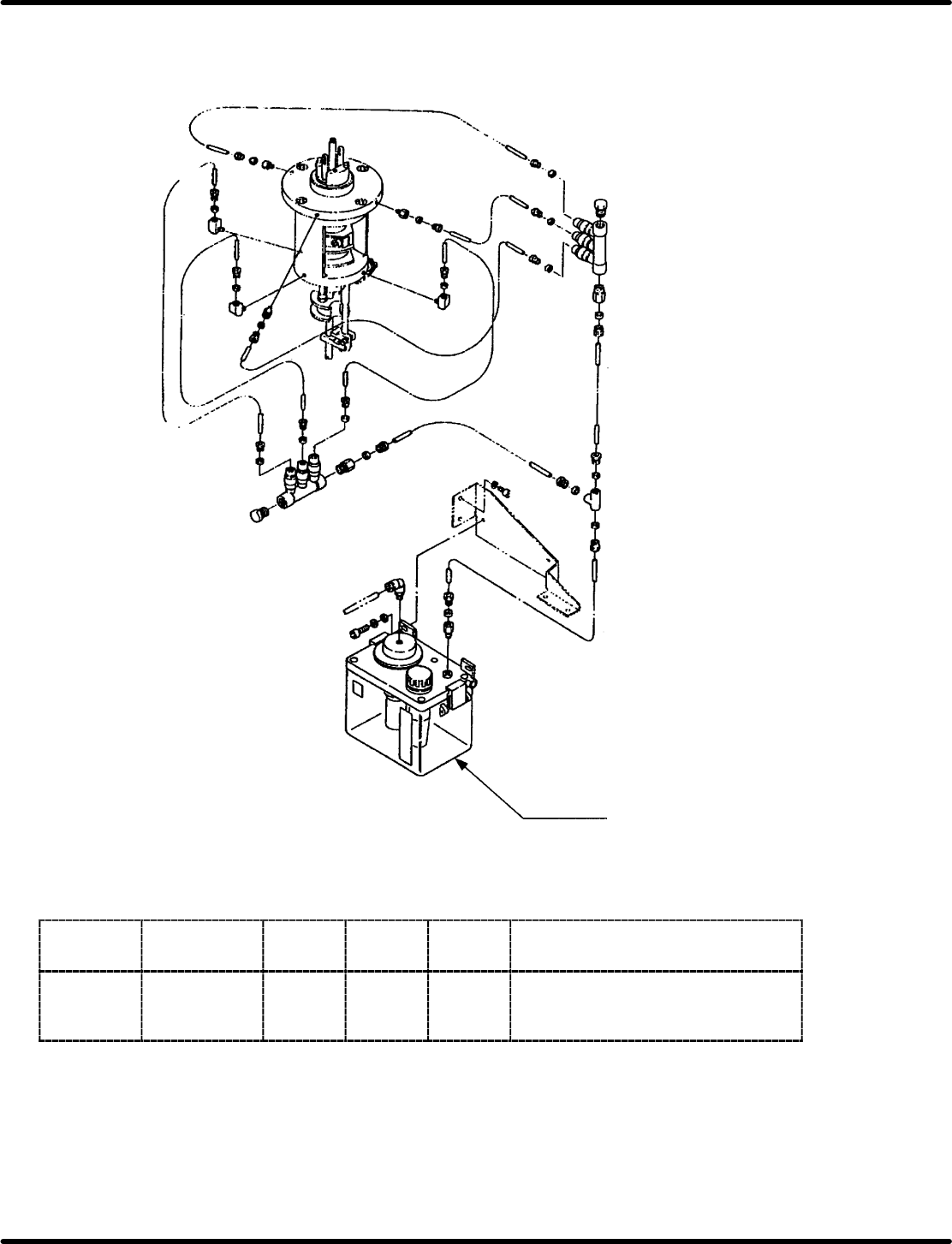

4.1.11 Anvil Unit (Bottom)
Oil tank
Oiling
Part
number
Oiling point Oil type
Oil
volume
Period Lubrication method
(1) Oil tank
Machine
oil
Moder−
ate
amount
Monthly
x Inject machine oil if the amount of
oil is below the lower limit
(EMPTY).
RH5
4.1 Inspection Check List
SERVICE MANUAL
4.1−14
DA3SEC−80−020−B0
4.1.12 Cut Waste Bottle and Tape Waste Receptacle
Filter
Red area
Pressure gauge
Air blow
Screw
Filter
Inspection
Period Inspection item
x Dispose of the lead cut waste and tape waste.
Daily
x Clean the filter of the tape waste receptacle using air blow. (Replace it if
damaged.)
x Make sure that the black needle of the pressure gauge is out of the red area.
If it is within the red area, clean up the anvil and hose to eliminate any clogging.
Weekly
x Clean the filter of the cut waste bottle using air blow. (Replace it if damaged.)
