RH5
8.6 Checking Slow Down, Origin, Limit and Safety Limit Sensors
SERVICE MANUAL
8.6−2
DA3SEC−85−500−A0
(Displayed example)
a. Only when origin sensor is turned ON: “40” appears in (1).
b. Only when slow down sensor is turned ON.: “08” appears in (1).
c. Only when + limit is turned ON: “20” appears in (1).
d. Only when − limit is turned ON: “10” appears in (1).
e. Only when + safety limit is turned ON: “01” appears in (2).
f. Only when − safety limit is turned ON: “04” appears in (2).
(When duplicate data is input:)
When a and b are turned ON: “48” appears in (1).
When a, b and c are turned ON: “68s” appears in (1).
8.7 CNC Board Table Setting
SERVICE MANUAL
RH5
8.7−1
DA3SEC−85−510−B0
8.7 CNC Board Table Setting
DA3SEC−85−510−B0
Sentence No.
Replacing CNC board and changing the setting
1. Turn ON the DIP−SW1 No.1 on the CNC board.
2. Set the CNC board to P−791 to turn ON the power supply.
3. The CNC starts up with NG. Turn OFF the power supply.
4. Turn OFF the DIP−SW1 No.1 on the CNC board.
5. After setting the CNC board to P−791, turn ON the power to the machine to change the CNC settings
automatically within approx. 30 sec.
=CHECK=
When setting the CNC board on the ZR axis side for 2−division machines, set the DIP−SW1 to
“OFF” in step 1 and set to “ON” in step 4 above.
When setting the CNC board other than described models, follow the same steps as described above.
(Be sure to check the double under line columns in each setting table.)
Changing the setting of CNC table only
1. Turn ON the power to the machine.
2. Press “REQ” − “F6” (MORE) − “F2” (MONITORING) on the monitor screen.
3. Press “F3” (MEMORY). (”ADDR” is displayed at the right bottom on the monitor screen.)
4. Input the setting value in ADDR according to the table setting list.
Ex. When “01” of usual max. speed 7901 for X axis 704050H is 02:
5. Input 74050 in ADDR to press “ENTER”.
(The values from 0 to F will be displayed in the same manner as the table setting list.)
6. At present, No. 7 of 74050 is 02, change to 01.
7. Press “F1” (CPU−286) five times.
DATA appears below ADDR.
8. Enter 74057 in ADDR and press “ENTER”.
(The cursor moves to DATA position.)
9. Entrer “01” in DATA to press “ENTER”. (02 of No. 7 is changed to 01 on the monitor)
10. Next, input a command for changing the table.
Input 74042 in ADDR of X axis and press “ENTER”.
11. Enter “80” in DATA to press “ENTER”.
12. Next, input an execution command for changing the table.
Enter 74FFE in ADDR of X axis to press “ENTER”.
13. Enter FF in DATA to press “ENTER”.
14. Wait approx. one minute until the value is automatically updated.
=CHECK=
After setting the table, do not turn OFF the machine until table value is updated.
After changing the settings, turn OFF the machine once and turn it back ON for safety reason to
make sure the setting values are changed.
RH5
8.7 CNC Board Table Setting
SERVICE MANUAL
8.7−2
DA3SEC−85−510−B0

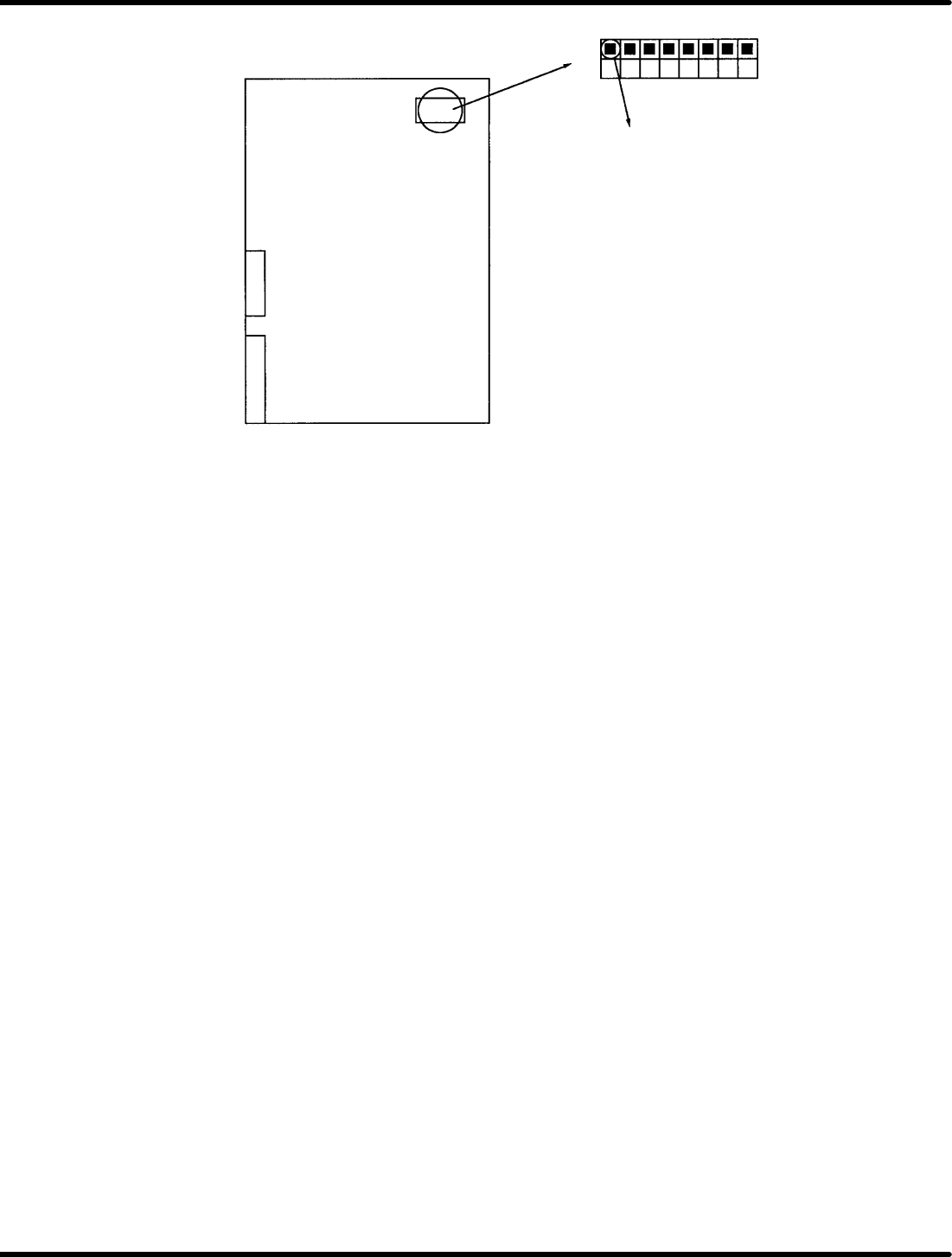

CN2
1 2 3 456 78
OFF
ON
DIP−SW1
1−ON 1st pc.
