RH5 7.3 Digital Operator SERVICE MANUAL 7.3−6 DA3SEC−84−310−A0 Display Procedure Remarks 7 Press MODE/SET key several times to change the display to “b, b” and then press servo lock switch. 8 T urn OFF the power to the m…
7.3 Digital Operator
SERVICE MANUAL
RH5
7.3−5
DA3SEC−84−310−A0

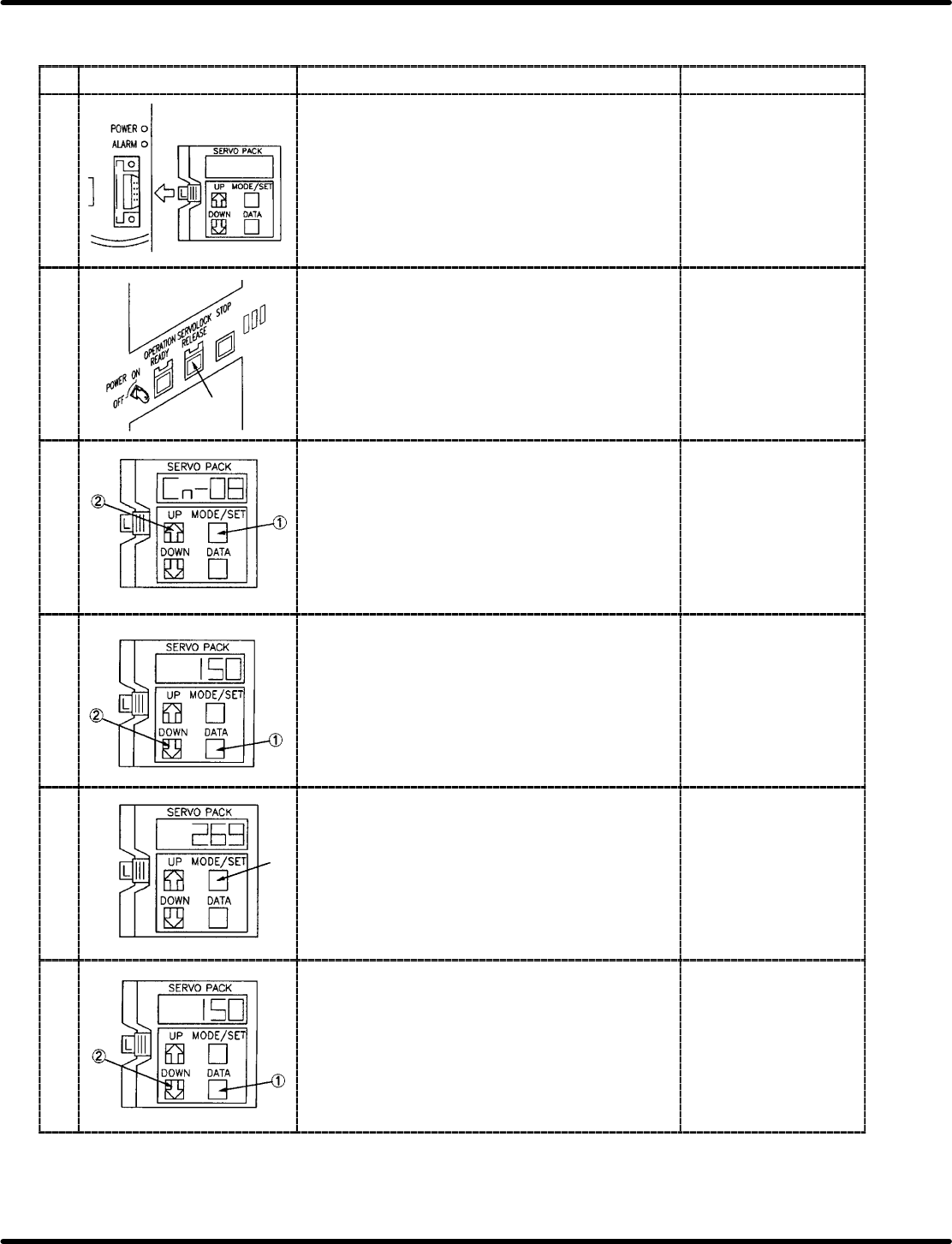

7.3.3 Changing Driver Setting Value (Cn−03 through Cn−23)
Display Procedure Remarks
1 Set the digital operator to the desired driver. x Setting the digital
operator changes the
display to “run”.
2 Press ORG. switch in manual, 1BLOCK mode then
press servo lock switch.
x The display changes
to “b, b”.
3 Press MODE/SET to change the display to Cn−00 and
then press UP key to specify the channel to be input.
x Select channel from
among Cn−03 through
Cn−23.
4 Press DATA key and input the setting value with UP
and DOWN keys.
x Refer to driver setting
list of X/Y/Z/H axis.
5 Press MODE/SET key after inputting the setting value. x Pressing MODE/SET
key flashes the data.
6 Press DATA key to display Cn−00 by DOWN key.
RH5
7.3 Digital Operator
SERVICE MANUAL
7.3−6
DA3SEC−84−310−A0

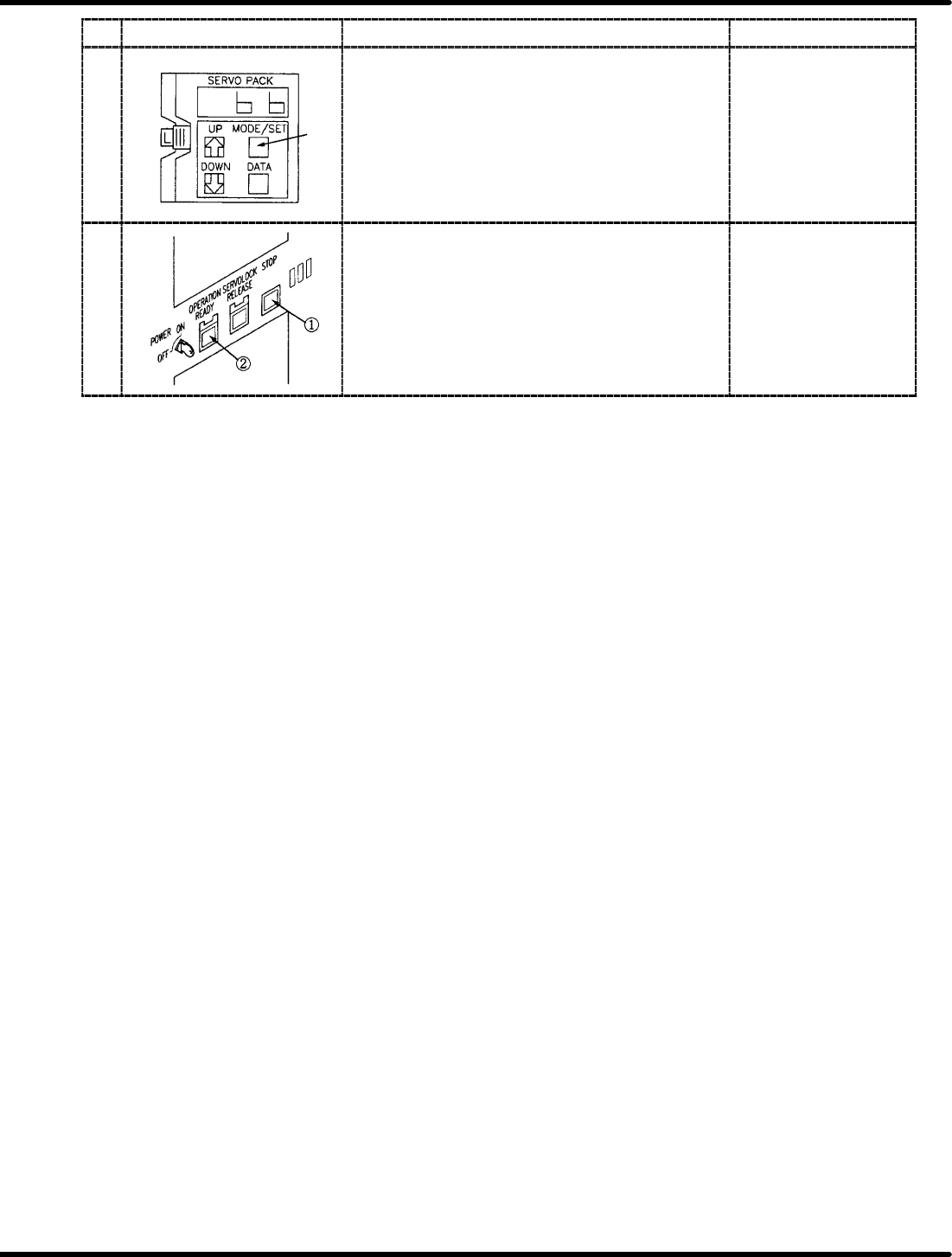

Display Procedure Remarks
7 Press MODE/SET key several times to change the
display to “b, b” and then press servo lock switch.
8 Turn OFF the power to the machine and remove the
digital operator. Then turn the power back ON.
x After turning the power
OFF and then ON, the
setting value have
been changed will be
available.
