Lamp 5.38 B a c k light Replacement on Main Control Panel SERVICE MANUAL RH5 5.38−3 DA3SEC−83−9W0−A0 5. Remove the lamp slowly . 6. Insert a new lamp with the light−emitting surface facing to the front of the machine. At…
Lamp connector
Inverter board
Inverter board
LCD unit
Lamp lock claw
RH5
5.38 Backlight Replacement on Main Control Panel
SERVICE MANUAL
5.38−2
DA3SEC−83−9W0−A0

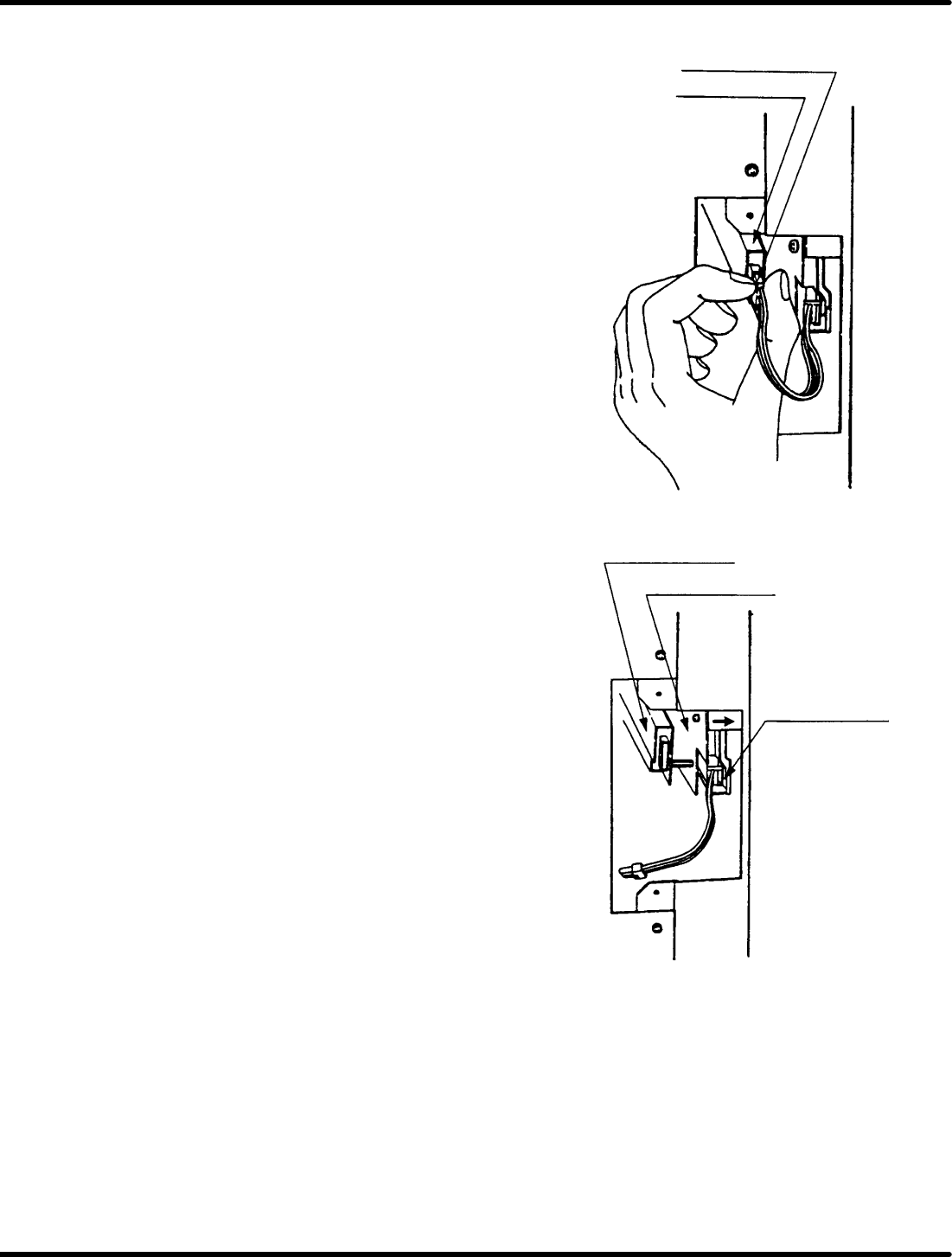

3. Draw out the lamp connector connected to
the inverter board slowly.
4. Flip the lamp lock claw to the direction
indicated by arrow to release the lamp and
then remove it.
Lamp
5.38 Backlight Replacement on Main Control Panel
SERVICE MANUAL
RH5
5.38−3
DA3SEC−83−9W0−A0

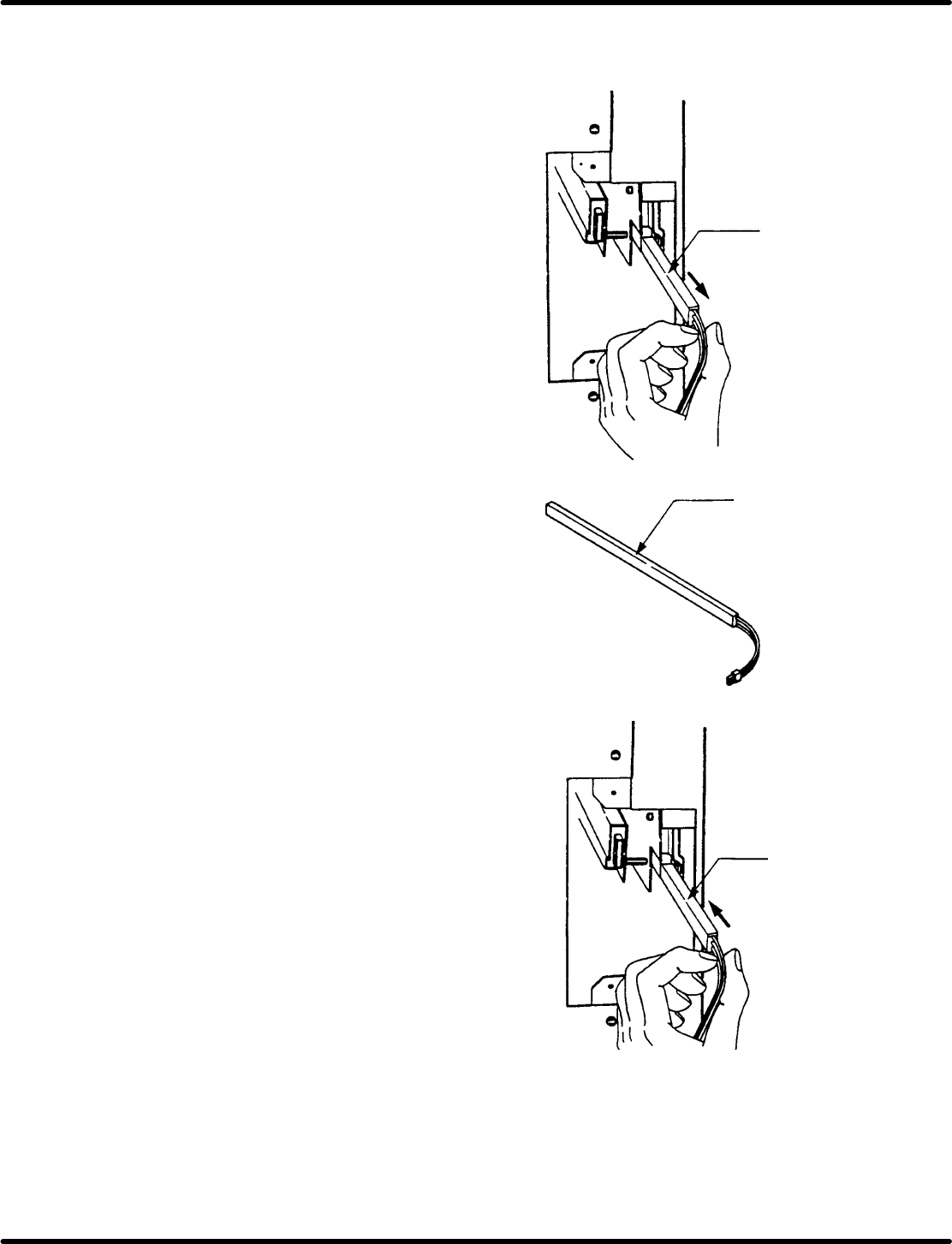

5. Remove the lamp slowly.
6. Insert a new lamp with the light−emitting
surface facing to the front of the machine.
At this time, ensure that the lamp is inserted
completely until the lamp lock screw is
snapped on.
Lamp connector
Inverter board
M3 flat head machine screw
Lamp replacement lid
RH5
5.38 Backlight Replacement on Main Control Panel
SERVICE MANUAL
5.38−4
DA3SEC−83−9W0−A0
7. Insert the lamp connector into the inverter
board firmly.
8. Reattach the lamp replacement lid into
position with the screws.
M3 flat head machine screw (x 3)
