2.1 1 Cam Follower Arrangement SERVICE MANUAL RH5 2.1 1−1 DA3SEC−82−320−A0 2.1 1 Cam Follower Arrangement DA3SEC−82−320−A0 Sentence No. Upper drive
RH5
2.10 Drive Lever Arrangement
SERVICE MANUAL
2.10−2
DA3SEC−82−310−A0
Lower drive
No. Name Qty
1 For insertion pusher 1
2 For head swivel 1
3 For feeding 1
4 For cutter 1
5 For cutter 1
6 For transfer 1
7 For head up/down 1
8 For head up/down 1
9 For anvil up/down 1
10 For cut & clinch 1
11 For guide pin up/down 1
12 For anvil swivel 1

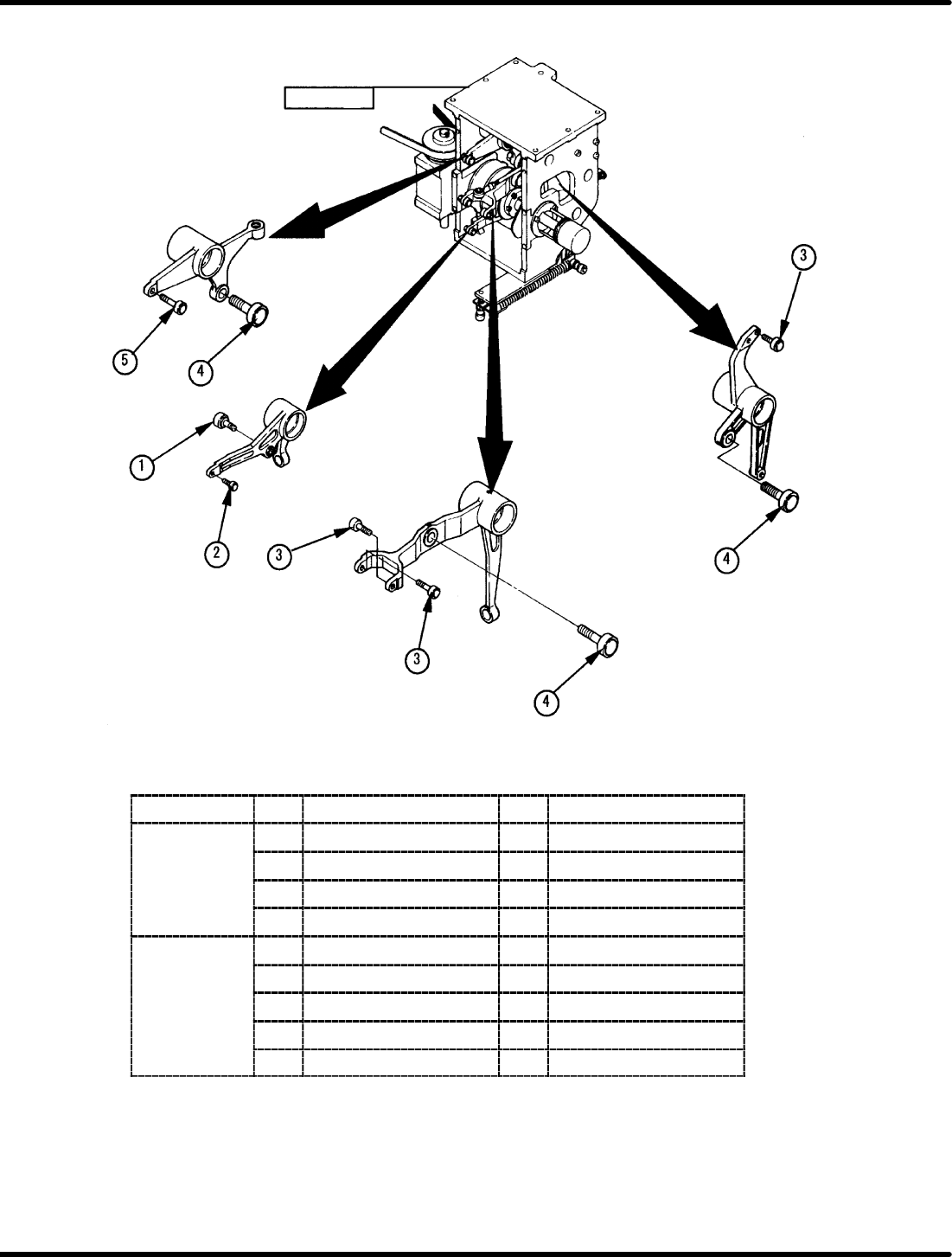

2.11 Cam Follower Arrangement
SERVICE MANUAL
RH5
2.11−1
DA3SEC−82−320−A0

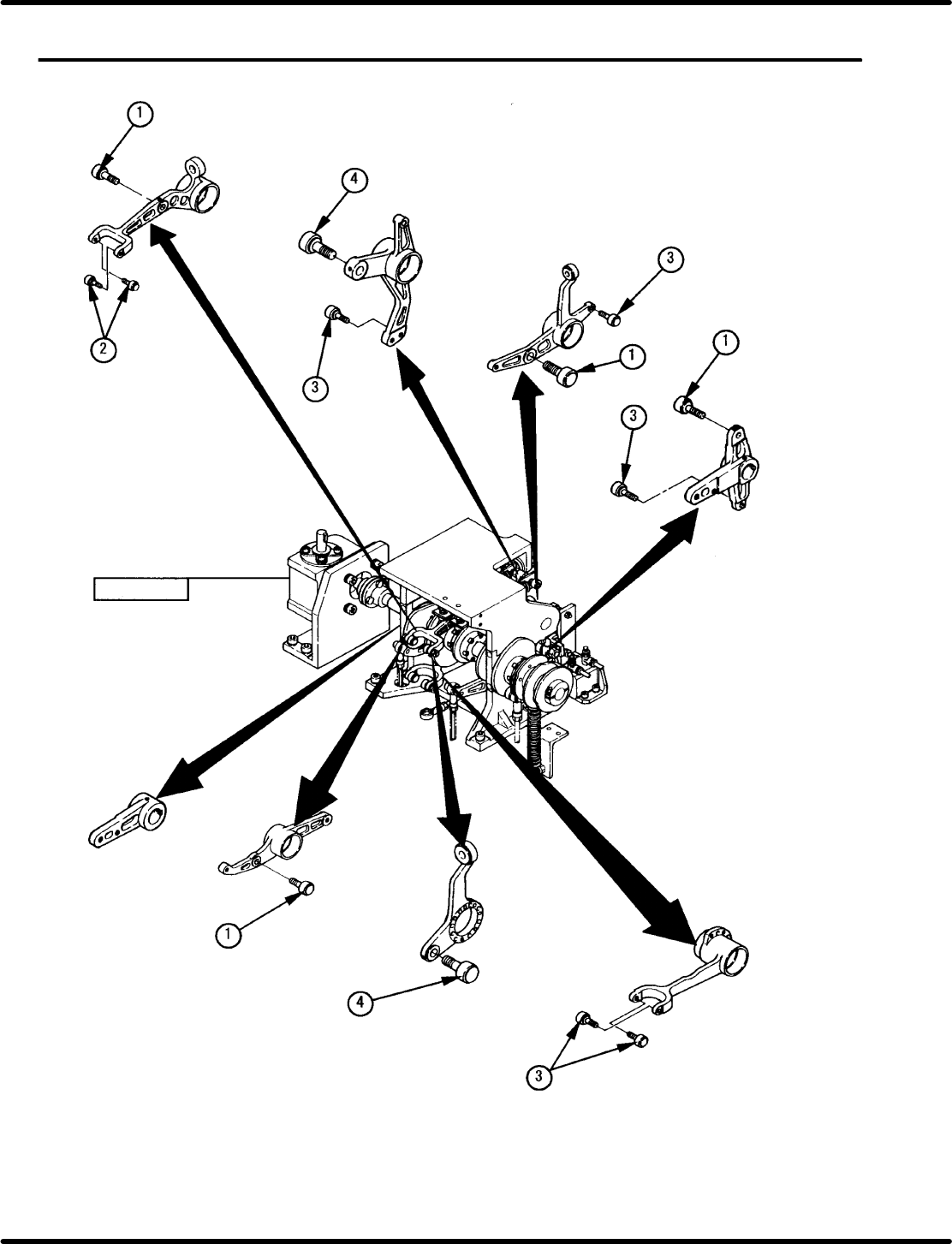

2.11 Cam Follower Arrangement
DA3SEC−82−320−A0
Sentence No.
Upper drive
RH5
2.11 Cam Follower Arrangement
SERVICE MANUAL
2.11−2
DA3SEC−82−320−A0
Lower drive
Unit Arrangement
Unit Name No. Name Qty Remarks
Upper drive 1 Cam follower 4 CFN12R−A
2 Cam follower 2 CFN 6R−A
3 Cam follower 5 CFN 8R−A
4 Cam follower 2 CFN18R−A
Lower drive 1 Cam follower 1 CFN12R−A
2 Cam follower 1 CFN 6R−A
3 Cam follower 3 CFN 8R−A
4 Cam follower 3 CN18R−A
5 Cam follower 1 CFN10R−A
