RH5 5.8 Insertion Head Insertion Chuck 90 q Swing Check and Adjustment SERVICE MANUAL 5.8−2 DA3SEC−83−8QO−A0 Adjusting 90 G swing (At parts handover) 1. Loosen bolt A (x 2) on the transfer position stopper (insertion chu…
5.8 Insertion Head Insertion Chuck 90q Swing Check and Adjustment
SERVICE MANUAL
RH5
5.8−1
DA3SEC−83−8QO−A0
5.8 Insertion Head Insertion Chuck 90G Swing Check
and Adjustment
DA3SEC−83−8QO−A0
Sentence No.
When to perform
x When parts leads do not readily slip
into the guide chuck.
x When insertion errors occur
frequently.
x Allen wrench
x Box wrench
x Lever−operated dial gauge
Required tools

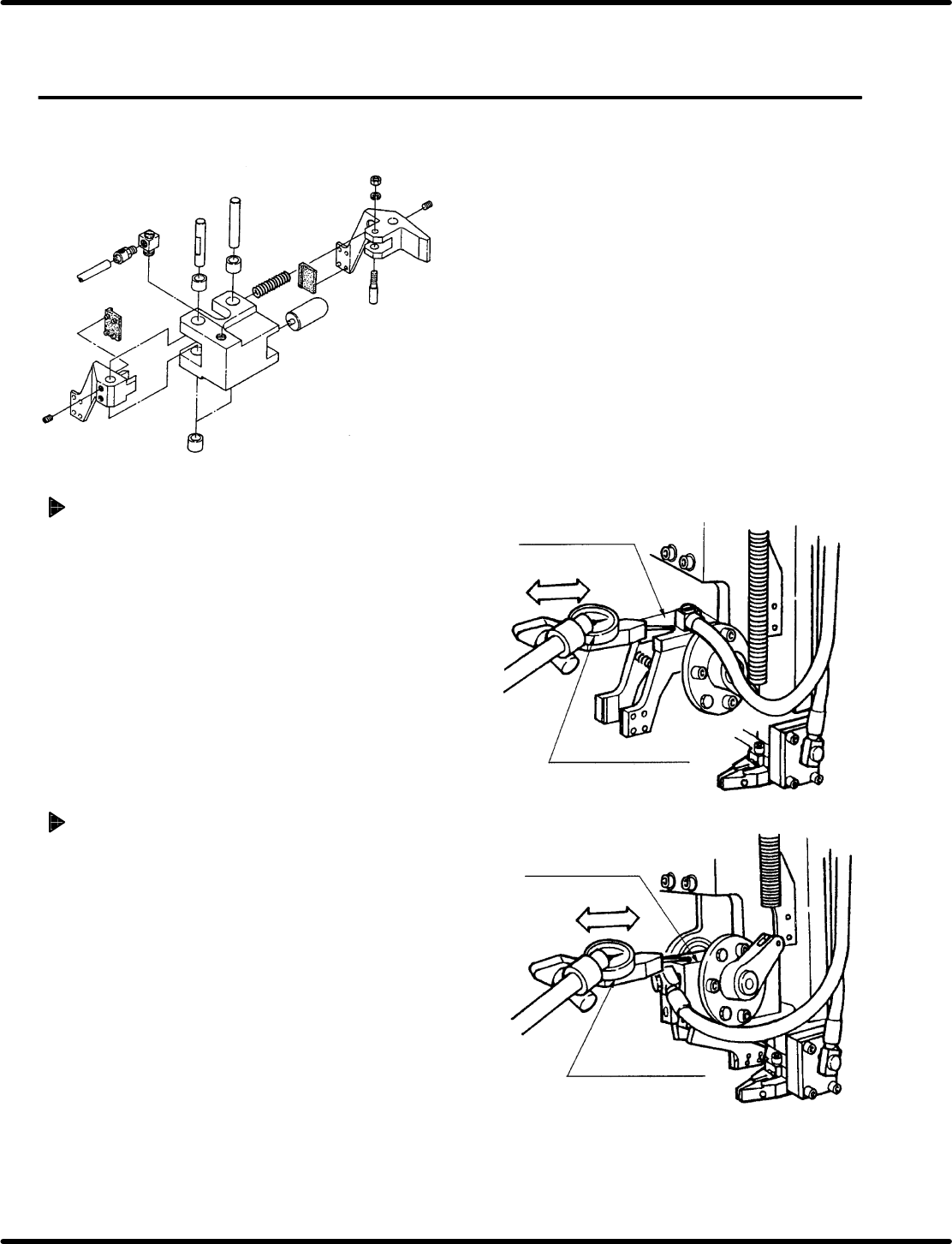

90G swing check (At parts handover)
1. T urn the hand wheel until the cam shaft is at the 0q
position on the digital sequence timer .
2. Attach the lever−operated dial gauge toe the guide
rail (fixed side ) on the X− Y table.
3. Set the measuring needle on the top surface of
the insertion chuck.
4. Move the X−Y table in the X direction by hand
checking insertion chuck parallelism against the
guide rail is within 0.05/15 − 20 mm.
210G swing check (During insertion)
1. T urn the hand wheel until the cam shaft is at the
210q position on the digital sequence timer.
2. Move the X−Y table in the X direction by hand
checking insertion chuck parallelism against the
guide rail is within 0.05/15 − 20 mm.
Lever−operated dial
gauge
X direction
The top of insertion
chuck
The rear of insertion
chuck
X direction
Lever−operated dial
gauge
Parallelism:
0.05/15 − 20 mm
Parallelism:
0.05/15 − 20 mm
RH5
5.8 Insertion Head Insertion Chuck 90q Swing Check and Adjustment
SERVICE MANUAL
5.8−2
DA3SEC−83−8QO−A0
Adjusting 90G swing (At parts
handover)
1. Loosen bolt A (x 2) on the transfer position
stopper (insertion chuck).
2. Turn the hand wheel and set the transfer position
stopper flush against the insertion chuck so that
the parallelism will be within 0.05/15−20 mm at
0q position on the digital sequence timer. Then
retighten bolts A (x 2) to secure the parts.
=CHECK=
Set the transfer position stopper flush against
the insertion chuck such that no gap results
between parts.
Adjusting 210G swing (During
insertion)
1. Loosen bolts B (x 2) on the insertion head lower
stopper.
2. Tighten the Y lock and turn the hand wheel ad
set the lower stopper flush against the insertion
chuck so that the parallelism will be within
0.05/15 − 20 mm at the 210q position on the
digital sequence timer. Then, retighten bolts A (x
2) to secure the parts.
=CHECK=
x Make sure the lower stopper is flush against the
insertion chuck.
x Do not position the lower stopper too close to
the rack. (Contacting parts will block the
insertion chuck from turning.)
3. After making adjustment, check 210q swing
again.
Transfer position
stopper
Insertion
chuck
Bolt A
Transfer
position
stopper
Lower
stopper
No gap
Bolt B
Insertion
chuck
A gap No gap
(NG) (OK)
5.9 Insertion Head Insertion Chuck 90q Swing Check and Adjustment
SERVICE MANUAL
RH5
5.9−1
DA3SEC−83−8RO−A0
5.9 Insertion Head Insertion Chuck 90G Swing Check
and Adjustment
DA3SEC−83−8RO−A0
Sentence No.
When to perform
x When cut parts arrive slanted at the
transfer chuck.
x When parts from the transfer chuck
arrive slanted at the insertion chuck.
x When insertion errors occur
frequently.
x Allen wrench
x Box wrench
x Lever−operated dial gauge
Required tools
90G swing check (At parts handover)
1. Turn the hand wheel until reaching the 90q
position on the digital sequence timer.
2. Attach the lever−operated dial gauge to the guide
rail (fixed side) on the X−Y table.
3. Set the measuring needle on the top surface of
the transfer chuck.
4. Move the X−Y table in the Y direction by hand
checking transfer chuck parallelism against the
guide rail is within 0.05/15 − 20 mm.
0G swing check (During cutting)
1. Turn the hand wheel again until reaching the 0q
position on the digital sequence timer.
2. Set the measuring needle on the rear surface of
the transfer chuck.
3. Move the X−Y table in the Y direction by hand
checking transfer chuck parallelism against the
guide rail is within 0.5/15 − 20 mm.
Lever−operated dial gauge
Y direction
Transfer chuck
Y direction
Lever−operated dial
gauge
Parallelism:
0.05/15 − 20 mm
Parallelism:
0.05/15 − 20 mm
