− Measuring in progress −
− Measuring completed −
5.32 Setting Offset Values
SERVICE MANUAL
RH5
5.32−11
DA3SEC−83−9Q0−A0

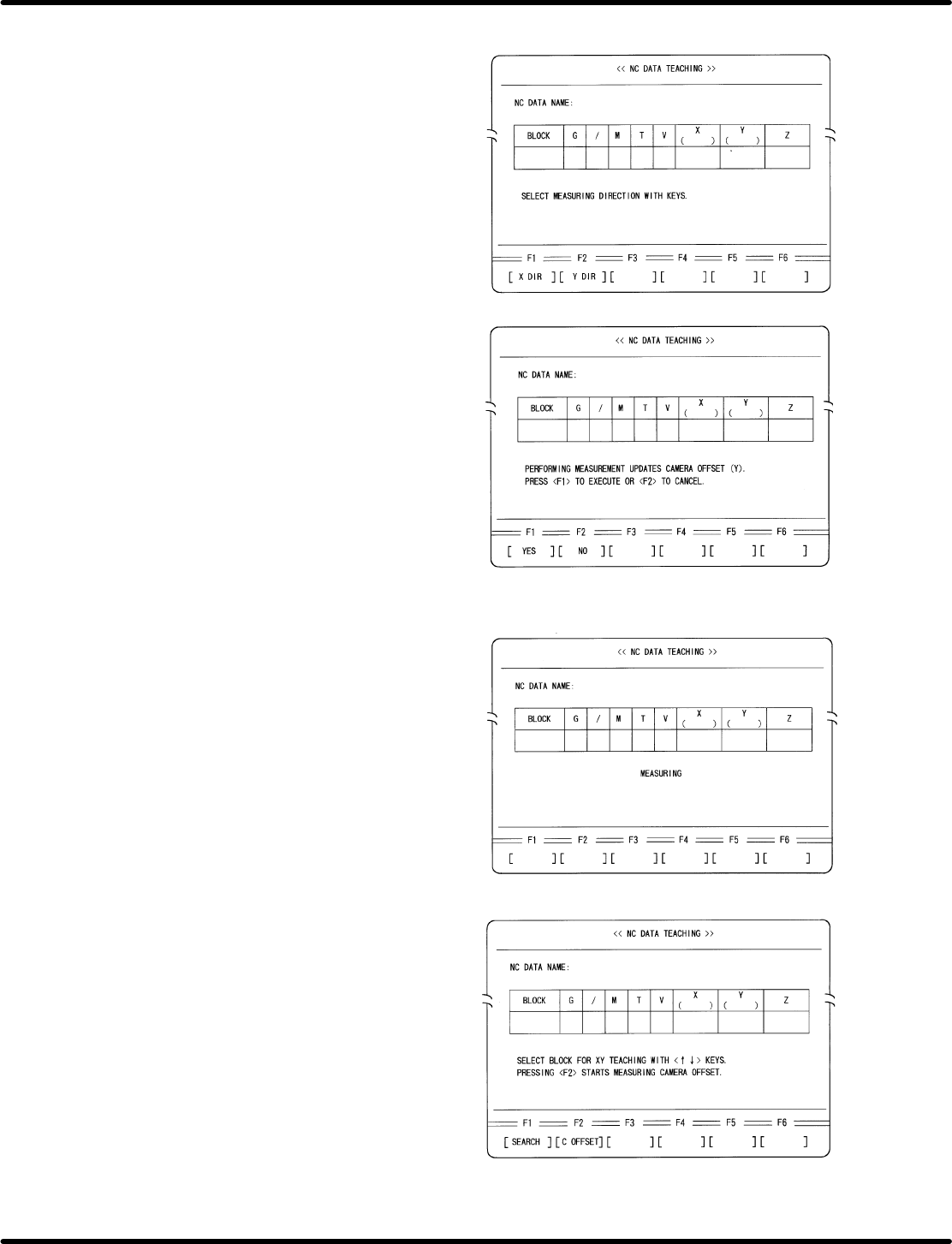

6. Select Automatic Camera Offset Measuring.
x Press F2 (C OFFSET).
7. Select the measuring direction.
x Press F2 (Y DIR).
8. Execute measuring.
x Press F1.
=REFERENCE=
After measuring is completed, camera
offset (Y) will be automatically overwritten.
Change V4
to V104
RH5
5.32 Setting Offset Values
SERVICE MANUAL
5.32−12
DA3SEC−83−9Q0−A0

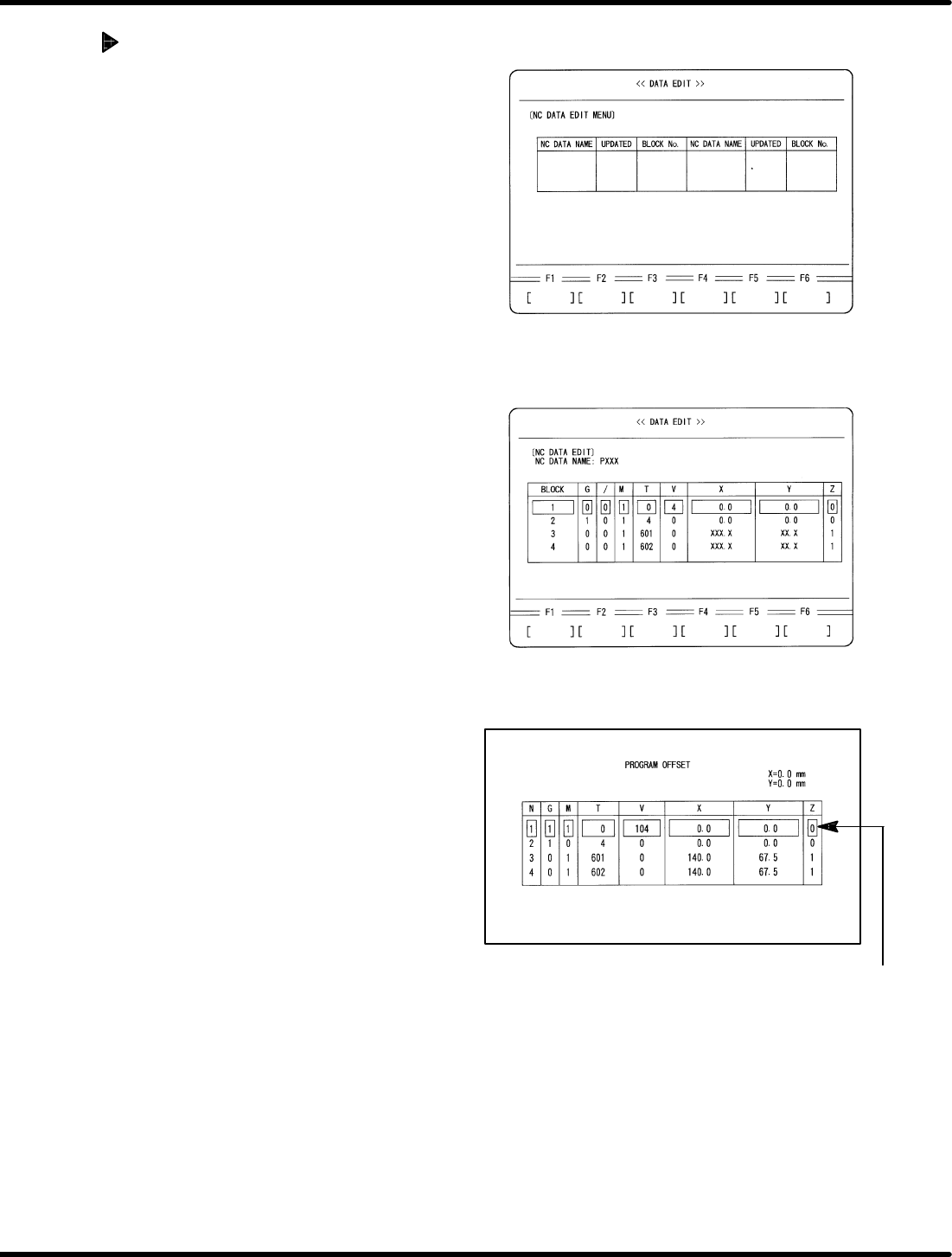

Checking Recognition
Operation
1. Call up the NC data edit screen.
x Press ESC twice.
x Press REQ.
x Press F2 (DATA EDIT).
x Press F1 (NC DATA).
x Press F2 (DATA EDIT).
2. Select an NC data for recognition
adjustment.
x Move the cursor to the name of NC data
for recognition adjustment.
x Press ENTER.
x Press F1 (YES).
3. Change V command of the 1st block in
the selected NC data.
x Change V command in the 1st block
from 4 to 104 as shown left.
5.32 Setting Offset Values
SERVICE MANUAL
RH5
5.32−13
DA3SEC−83−9Q0−A0
4. Cancel insertion.
x Press ESC three times.
x Press F6 (MORE).
x Press F1 (MACHINE INITIAL DATA).
x Press F6 (MORE) twice.
x Press F2 (SELF−CORRECTION
CANCEL).
x Set the following data:
3. 1 HOLE/ALL HOLES MEASURE−
MENT: OFF
5. INSERT CANCEL
5. Perform recognition in AUTO mode
(Overwrite NC data)
x Press ESC twice.
x Press F6 (MORE).
x Press AUTO.
x Press EOP.
x Press START.
6. Change to MANUAL mode, choose teaching
mode and select the NC data created for
adjustment.
x Press MANU.
x Press 1 BLK.
x Press F3 (NC DATA TEACHING).
x Move the cursor to the name of NC data for
recognition adjustment using npkeys.
x Press ENTER.
x Press F1 (YES).
