RH5 3.1 Outline of Installation SERVICE MANUAL 3.1−4 DA3SEC−1 1−010−A0 3.1.3 Installation Install the machine even with the ground by using a spirit level. =CHECK= If the machine has not been installed level with the gro…
3.1 Outline of Installation
SERVICE MANUAL
RH5
3.1−3
DA3SEC−11−010−A0
2,025
(NM−8245A,B,C)
3,296 (NM−8244A, NM−8245A)
4,146 (NM−8244B, NM−8245B)
5,160 (NM−8244C, NM−8245C)
(NM−8244A,B,C)
1,860
3,296 (NM−8244A, NM−8245A)
4,146 (NM−8244B, NM−8245B)
5,160 (NM−8244C, NM−8245C)
(NM−8244A,B,C)
1,950
(NM−8245A,B,C)
1,900
RH5
3.1 Outline of Installation
SERVICE MANUAL
3.1−4
DA3SEC−11−010−A0
3.1.3 Installation
Install the machine even with the ground by using a spirit level.
=CHECK=
If the machine has not been installed level with the ground, the expected functions cannot be
attained.
Install the machine on the location where the following conditions can be met:
x The humidity is in the range of 20−90% with no dew formation.
x No considerable vibration
x Free from dust and/or soot
x Capable of sustaining the mass of the machine
x No influence of electric nozzle is received.
x No inflammable or corrosive gas is around.
Spirit level
3.1 Outline of Installation
SERVICE MANUAL
RH5
3.1−5
DA3SEC−11−010−A0

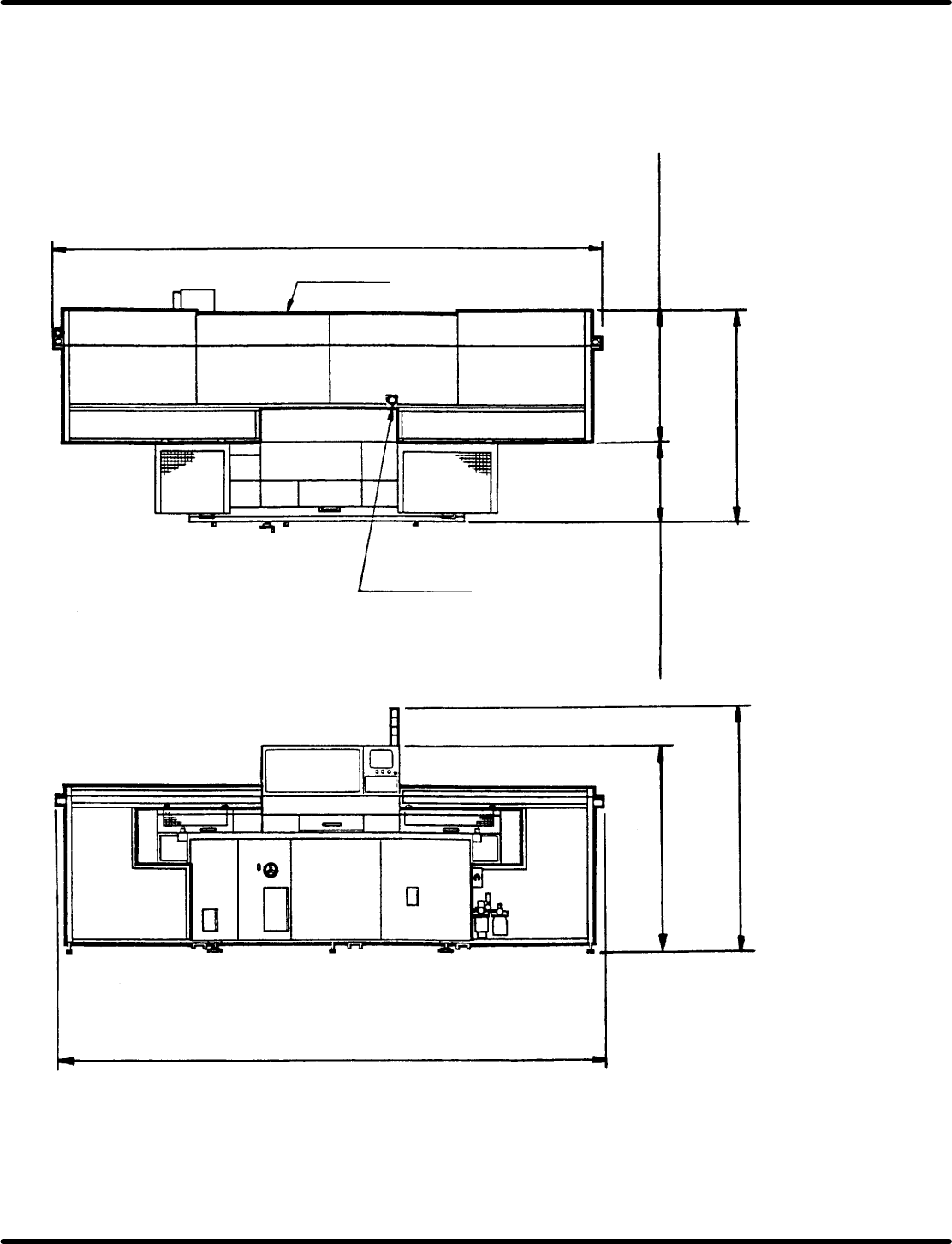

3.1.4 Safeguards and Warning Lamps
Be sure to install the safeguards and warning lamps.
=REFERENCE=
Refer to ’SAFETY’ for safety interlock arrangement.
Safeguard
Warning lamp
(NM−8244A,B,C)
(NM−8245A,B,C)
3,296 (NM−8244A, NM−8245A)
4,146 (NM−8244B, NM−8245B)
5,160 (NM−8244C, NM−8245C)
1,860 (NM−8244A,B,C)
2,025 (NM−8245A,B,C)
3,296 (NM−8244A, NM−8245A)
4,146 (NM−8244B, NM−8245B)
5,160 (NM−8244C, NM−8245C)
(NM−8244A,B,C)
(NM−8245A,B,C)
660
797
1,200: M
1,228: LL
1,650 (NM−8244A,B,C)
1,600 (NM−8245A,B,C)
1,950 (NM−8244A,B,C)
1,900 (NM−8245A,B,C)
