RH5
8.3 List of Jumper Switch Settings
SERVICE MANUAL
8.3−10
DA3SEC−85−540−B0
Jumper switch settings

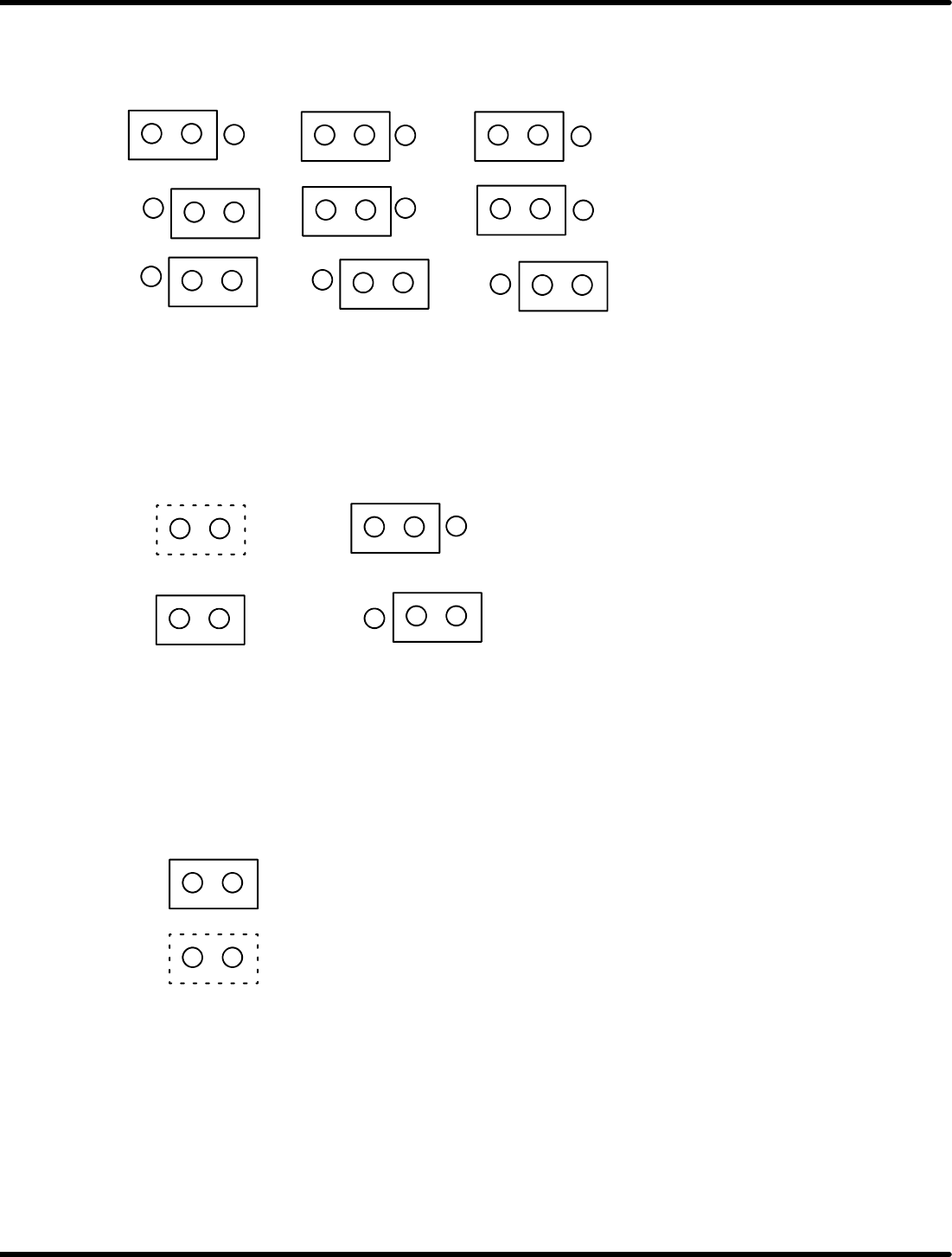

(1) Memory (program ROM) capacity
JP1
JP2
JP3
Memory capacity
256 K
512 KB
1MB
=REFERENCE=
Factory setting: 1 MB

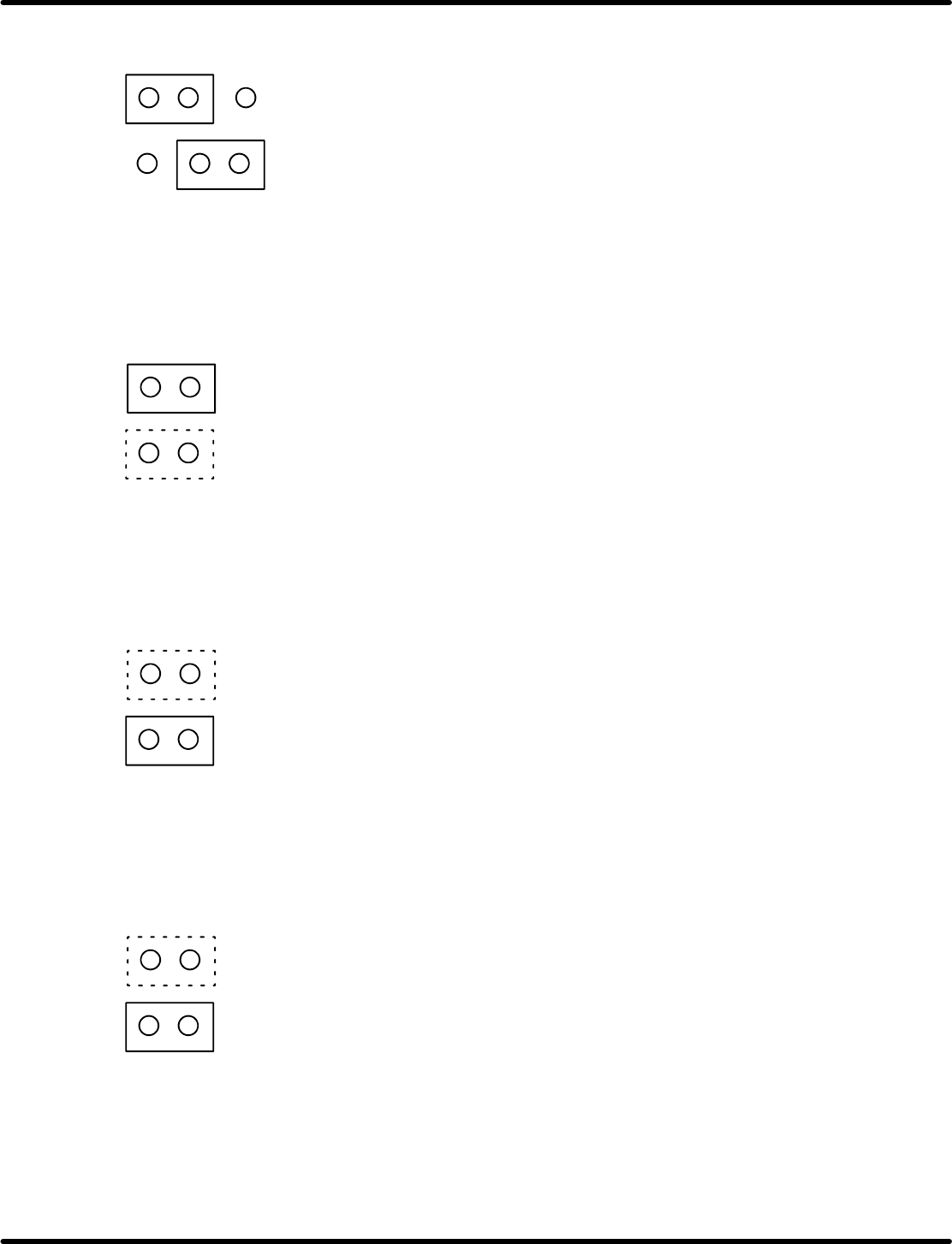

(2) Watchdog timer ON/OFF
JP4
JP7
Watchdog timer ON
Watchdog timer OFF
(For testing)
=REFERENCE=
x Factory setting: ON
x The program shall be changed with the watchdog timer being OFF.
(3) Character font
JP5
Short: 2 x 2 byte character
Open: 1 byte character
=REFERENCE=
x Factory setting: 2 x 2 byte character
x The program shall be changed with 1 byte character being used.
8.3 List of Jumper Switch Settings
SERVICE MANUAL
RH5
8.3−11
DA3SEC−85−540−B0
(4) Character generator ROM capacity
JP6
Memory capacity
128 KB
256 KB
=REFERENCE=
Factory setting: 128 KB
(5) Pulse motor pulse output logic (When sub−board aboard)
JP5
Open: Pulse output active ‘H’
Short: Pulse output active ‘L’
=REFERENCE=
Factory setting: Pulse output active ‘L’
(6) Pulse motor direction output logic (When sub−board aboard)
JP9
Open: ‘L’ level is in the + direction
Short: ‘H’ level is in the + direction
=REFERENCE=
Factory setting: ‘L’ level in the + direction
(7) Pulse motor ORG input logic (When sub−board aboard)
JP6
Open: ORG−D1 ‘H’ level is ON.
Short: ORG−D1 ‘L’ level is ON.
=REFERENCE=
Factory setting: ‘L’ level is in the + direction
RH5
8.3 List of Jumper Switch Settings
SERVICE MANUAL
8.3−12
DA3SEC−85−540−B0

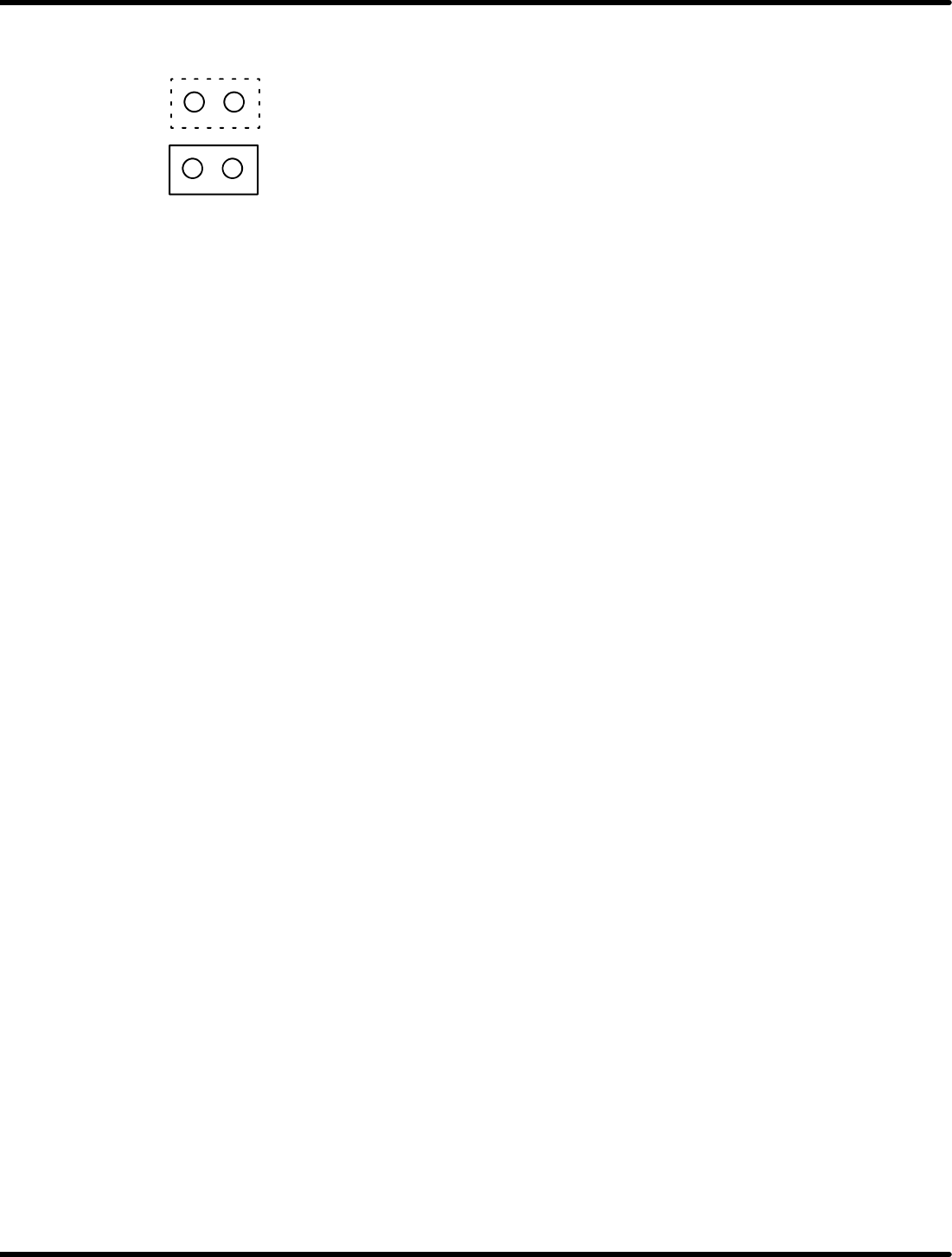

(8) Pulse motor general−purpose input logic (When sub−board aboard)
JP7
Open: INS signal ‘H’ level
Short: INS signal ‘L’ level
=REFERENCE=
Factory setting: ‘H’ level
