1.4 Lubrication Oil SERVICE MANUAL RH5 1.4−3 DA3SEC−81−070−B0 9. Attachment U type Part No.: N938YYYY−005 Model: Nozzle U 10. Flexible hose Part No.: N938YYYY−012 Model: SPK−3C, L=280 Applicable model by nozzle LM guide …

RH5

1.4 Lubrication Oil

SERVICE MANUAL

1.4−2

DA3SEC−81−070−B0

1.4.2 Grease Gun Unit

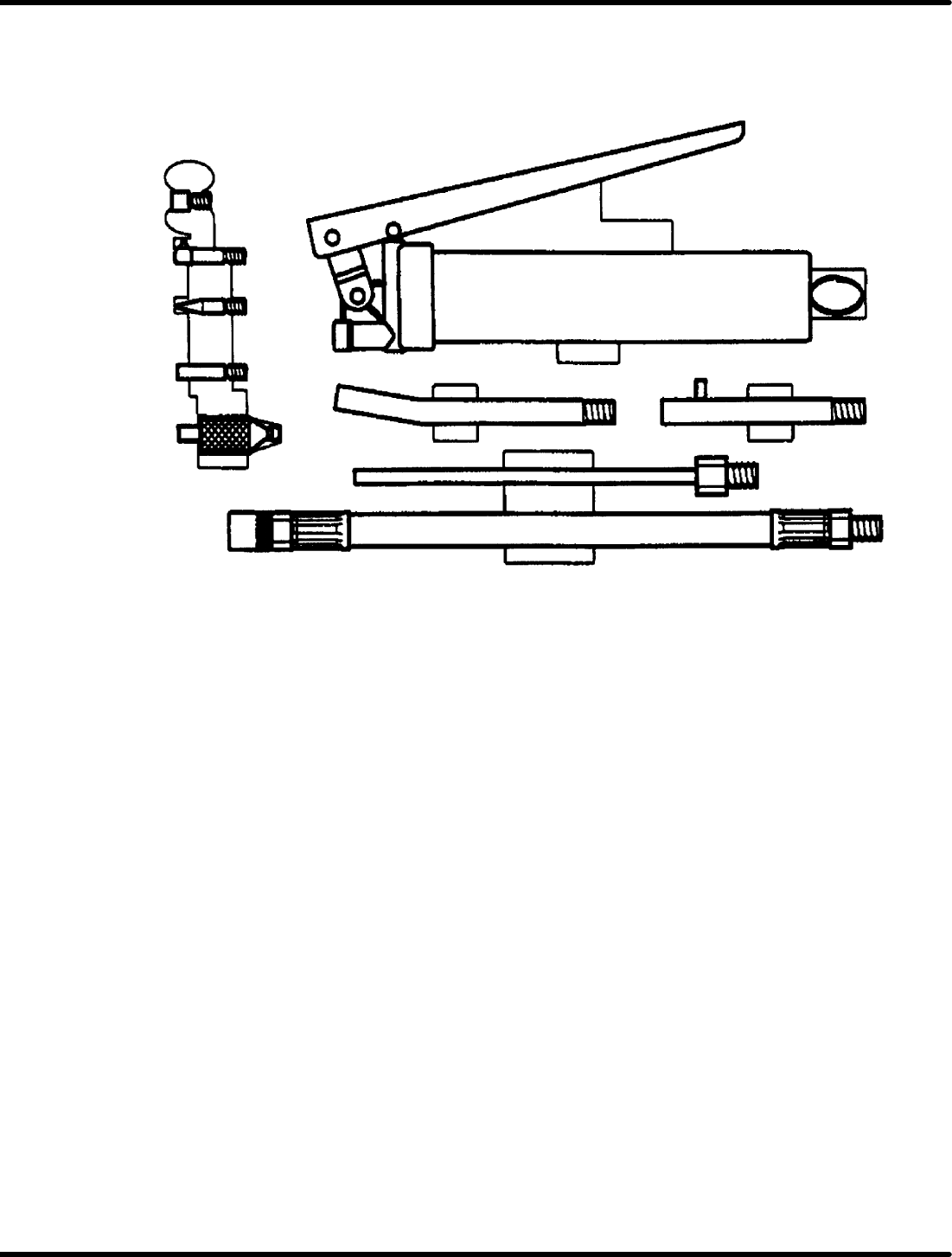

The drawing below shows the configuration of the grease gun unit. (1046601000)

This unit enables you to inject grease approx. 0.5cc per shot.

1. Attachment N2 type

Part No.: N938YYYY−009

Model: Nozzle N2

2. Attachment L type

Part No.: N938YYYY−007

Model: Nozzle L

3. Attachment P type

Part No.: N938YYYY−006

Model: Nozzle P

4. Attachment N1 type

Part No.: N938YYYY−008

Model: Nozzle N1

5. Attachment J type

Part No.: N938YYYY−010

Model: Nipple J

6. Grease pump type

Part No.: N977NAKH−018

Model: NAK HGP NZ1

7. Attachment H type

Part No.: N938YYYY−004

Model: Nozzle H

8. Attachment NL type

Part No.: N938YYYY−011

Model: Nipple NL

1.4 Lubrication Oil

SERVICE MANUAL

RH5

1.4−3

DA3SEC−81−070−B0

9. Attachment U type

Part No.: N938YYYY−005

Model: Nozzle U

10. Flexible hose

Part No.: N938YYYY−012

Model: SPK−3C, L=280

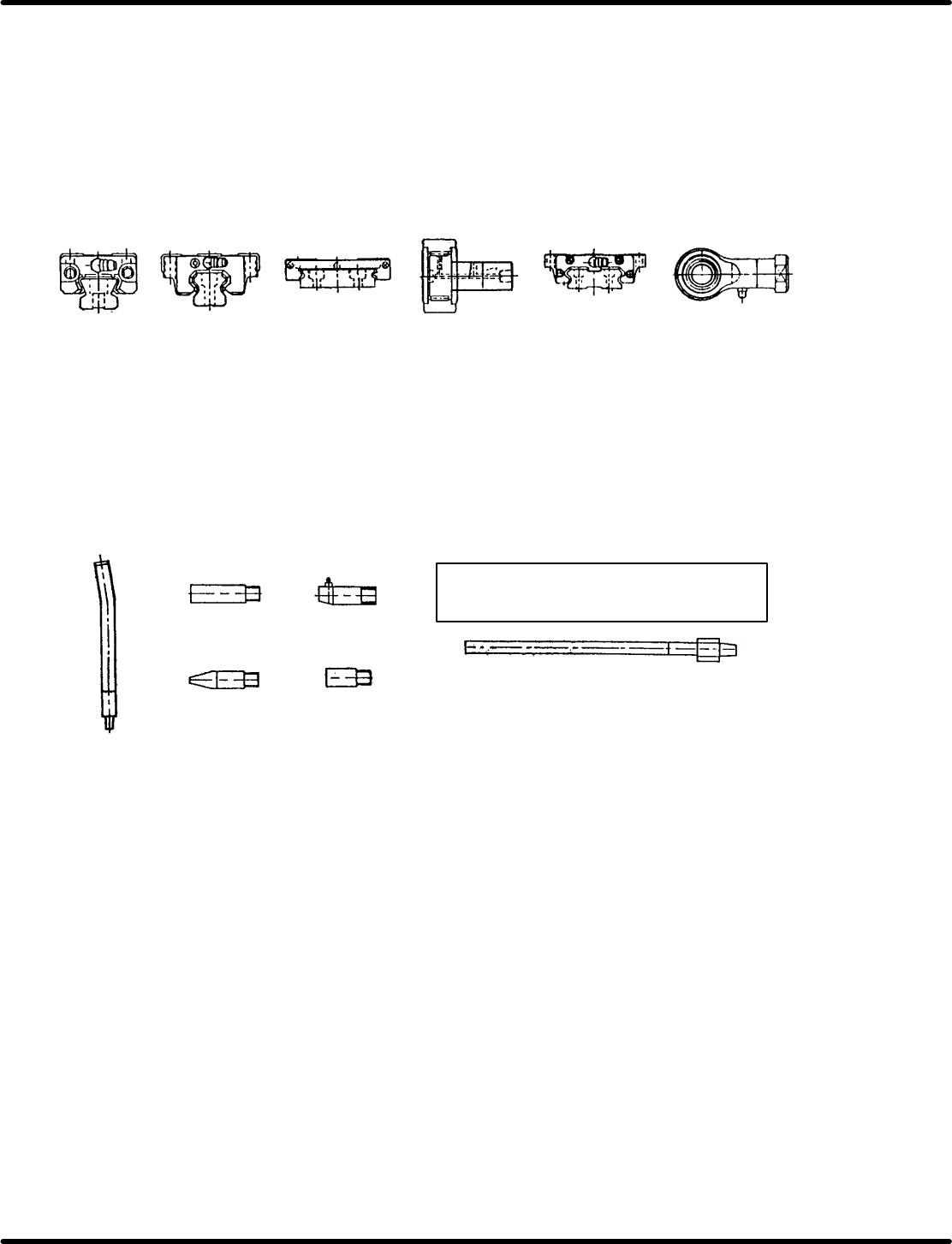

Applicable model by nozzle

LM guide Cam follower LM guide Rod end

SR type HSR type RSR type CF type HRW type PHS type

N Type1 LM guide: Small type

Cam follower: CF type

Rod end: PHS type

N Type2 LM guide: Nozzle units for MVII and MVIIC

P/L Type Applicable to points where oiling is hard to do, track grooves

H Type: LM guide: M6F, PT1/8

Ball screw

H type

N type 1 L type

N type 2P type

U type

AFC GREASE 70g (AFA AFB)

RH5

1.4 Lubrication Oil

SERVICE MANUAL

1.4−4

DA3SEC−81−070−B0
