RH5
5.18 Anvil Cutter Blade Replacement and Adjustment
SERVICE MANUAL
5.18−2
DA3SEC−83−9AO−A0
Moving blade A replacement
1. Remove bolt A (x 4) fixing moving blades A
in place.
2. Set new blades so that the distance from
the fixed blade is between 0.05 and 0.1 mm.
Then, fix them in place with bolt A (x 4).
=REFERENCE=
x Before attaching a new blade remove
the old blade and demagnetize the
body.
x Before determining blade meshing,
remove the spring for the cut and clinch
lever.
x Make size measurements using a gap
gauge.
Moving blade B replacement
1. Remove bolt B (x 2) fixing moving blades B
in place.
2. Set new blades so that the distance from
the fixed blade is between 0.05 and 0.1 mm.
Then, fix them in place with bolt B (x 2).
=REFERENCE=
x Before attaching a new blade, remove
the old blade and demagnetize the
body.
x Before determining blade meshing,
remove the spring for the cut and clinch
lever.
x Make size measurements using a gap
gauge.
Cutting check
1. After replacing the cutter blades, check
each blade for cutting using a I 0.3 steel
wire.
Bolt A
Moving
blade A
Moving
blade B
Moving
blade A
Fixed
blade
Fixed
blade A
Bolt A
0.05 − 0.1 mm
0.05 − 0.1 mm
Moving
blade A
Moving
blade B
Moving
blade A
Fixed
blade A
Bolt B
Spring
Lever
0.05 − 0.1 mm
5.19 Anvil Parallelism Check and Adjustment
SERVICE MANUAL
RH5
5.19−1
DA3SEC−83−9BO−A0
5.19 Anvil Parallelism Check and Adjustment
DA3SEC−83−9BO−A0
Sentence No.
When to perform
x When the guide pin gets caught on the insertion
hole.
x When leads are clinched or bent unevenly.
x Lever−operated dial gauge
x Allen wrench
Required tools
Measuring parallelism (During
insertion in the X direction)
1. T urn the hand wheel until the cam shaft is
approximately at the 210q position on the digital
sequence timer .
2. Attach the lever−operated dial gauge to the guide
rail (fixed side) on the X−Y table. Set the
measuring needle on the side surface (flat
surface) of the anvil dust cover .
3. Move the X−Y table in the X direction by hand and
check the parallelism is between 0.05/25−30 mm.
=REFERENCE=
If sliding the X− Y table by hand, make sure
the table does not slip in the Y direction.
Lever−operated dial
gauge
Dust cover
(Insertion in the
Y direction)
(Insertion in the
X direction)
Parallelism:
0.05/25 − 30 mm
RH5
5.19 Anvil Parallelism Check and Adjustment
SERVICE MANUAL
5.19−2
DA3SEC−83−9BO−A0
Measuring parallelism (During insertion
in the Y direction)
1. T urn ON Y INSERT on the sub−control panel and set
the digital sequence timer to 210q. Then fit the
measuring needle to the dust cover .
2. Move the X−Y table in the Y direction by hand and
check parallelism is between 0.05/25−30 mm.
=REFERENCE=
If sliding the X− Y table by hand, make sure the
table does not slip in the X direction.

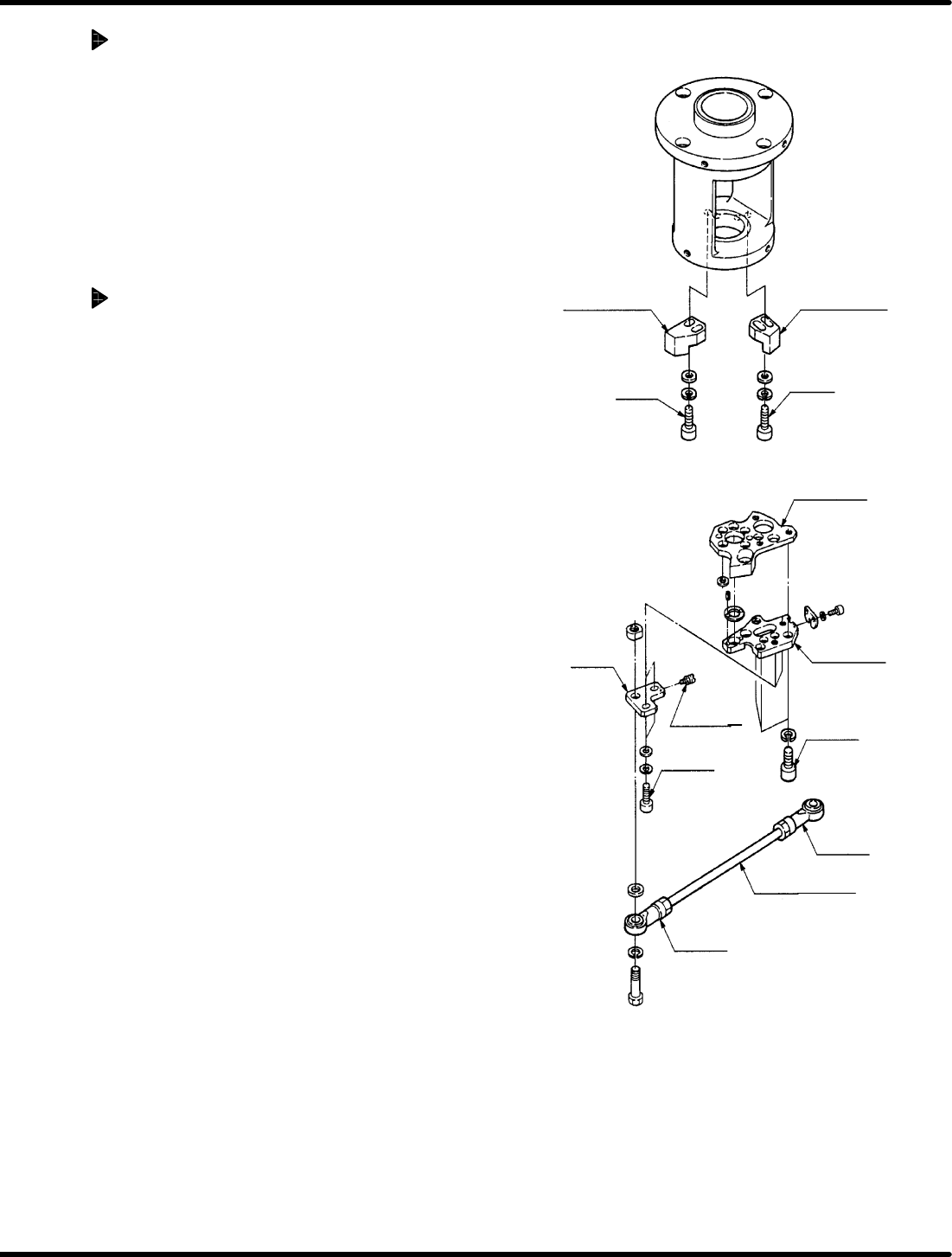

Connecting rod adjustment
1. Loosen bolts A and B (2 each) and disengage the
anvil rotation stoppers (X) and (Y).
2. Check the accuracy is at 210q in both X and Y
directions on the digital sequence timer.
=REFERENCE=
x If the ratio is not obtained, disengage the nuts
A and B of the connecting rod and adjust the
length.
x This adjustment is required only when
exchanging the rod end and connecting rod.
To adjust the accuracy only, skip these steps.
Anvil rotation
stopper (X)
Anvil rotation
stopper (Y)
Bolt B
Bolt A
Stage (3)
Stage (4)
Slider
Adjusting
screw
Bolt C
Nut B
Bolt D
Connecting rod
Nut A
