RH5 7.3 Digital Operator SERVICE MANUAL 7.3−2 DA3SEC−84−310−A0 Display Procedure Remarks 7 Press MODE/SET key to change the display to Cn−03 and then press DOWN key three times to change to 00−00. 8 Press DA T A key to c…
7.3 Digital Operator
SERVICE MANUAL
RH5
7.3−1
DA3SEC−84−310−A0
7.3 Digital Operator
DA3SEC−84−310−A0
Sentence No.

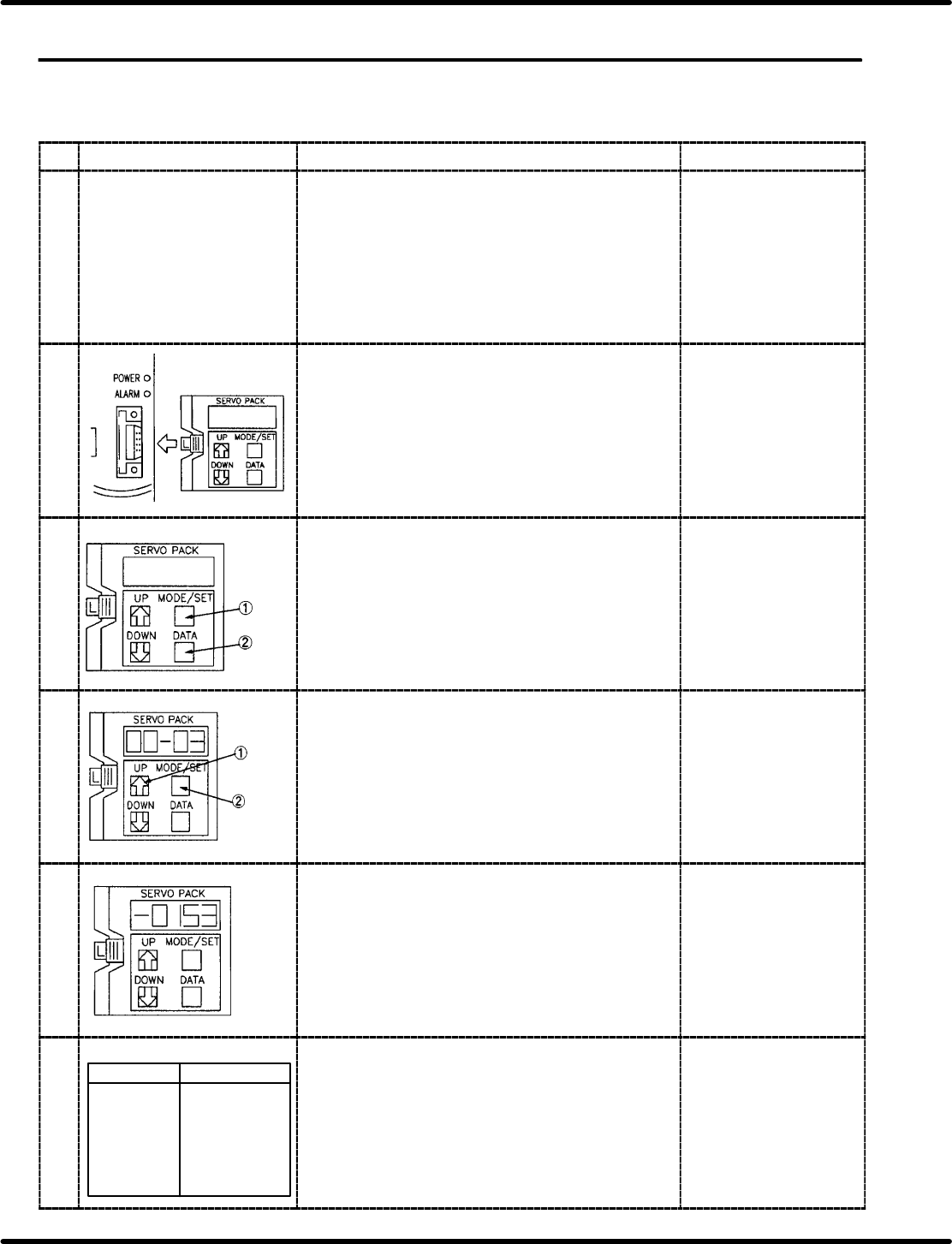

7.3.1 Inputting Offset Value (Cn−00)
Display Procedure Remarks
1 [Menu]
Select the check function
F1: NC axis jog check
F2: NC axis move check
F3: NC data teaching
Press “F1” (NC AXIS JOG CHECK) after pressing
ORG in manual, 1 block mode.
2 Set the digital operator to the desired driver. x Setting the digital
operator changes the
display to “run”.
3 Press MODE/SET key to change the display to Cn−00
and then press DATA key to change to 00−00.
4
Press
three
times.
Press UP key three times to display to 00−03 and
then press MODE/SET for 4−digit numerics.
5 Pressing UP key increases the value and Down key
decreases the value. Using UP and DOWN keys, set
the monitor display to r0.00 mm.
6
[NC axis JOG check]
NC axis Present position
XY table X=+0.00 mm
Y=+0.00 mm
Z axis (casette) 0.00 mm
Loader width
adjustment *****
Unloader width
adjustment *****
Table width
adjustment *****
Press “SEMI” − “1BLOCK” − “RESET” and “START”
and move the X/Y/Z axis. Then press “MANU” −
“1BLOCK” − “ORG.” and “F1” (NC AXIS JOG CHECK)
to make sure each axes indicates r0.00 mm.
xThe values other than
r0.00 mm, shall be
adjusted to r0.00 mm
using UP and DOWN
keys.
RH5
7.3 Digital Operator
SERVICE MANUAL
7.3−2
DA3SEC−84−310−A0

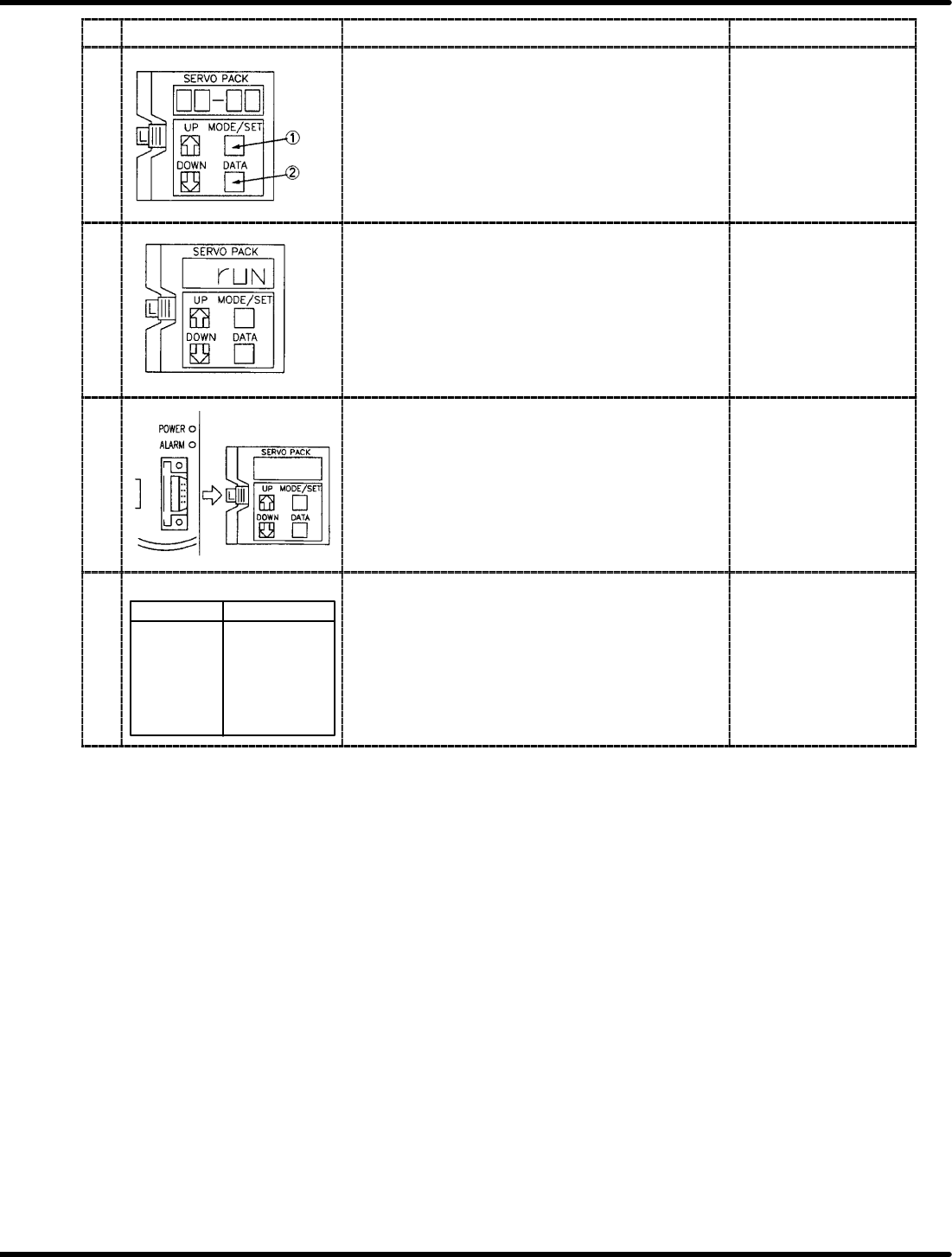

Display Procedure Remarks
7 Press MODE/SET key to change the display to Cn−03
and then press DOWN key three times to change to
00−00.
8 Press DATA key to change the display to Cn−00 and
then press MODE/SET to change to “run”.
9 Remove the digital operator from the driver and turn
OFF the power to the machine once.
10
[NC axis JOG check]
NC axis Present position
XY table X=+0.00 mm
Y=+0.00 mm
Z axis (casette) 0.00 mm
Loader width
adjustment *****
Unloader width
adjustment *****
Table width
adjustment *****
Turn the power back ON and press “F1” (NC JOG
CHECK) to make sure the each axis are set to r0.00
mm.
x The values other than
r0.00 mm shall be
adjusted to, set to r0.00
mm using UP and
DOWN keys.
7.3 Digital Operator
SERVICE MANUAL
RH5
7.3−3
DA3SEC−84−310−A0

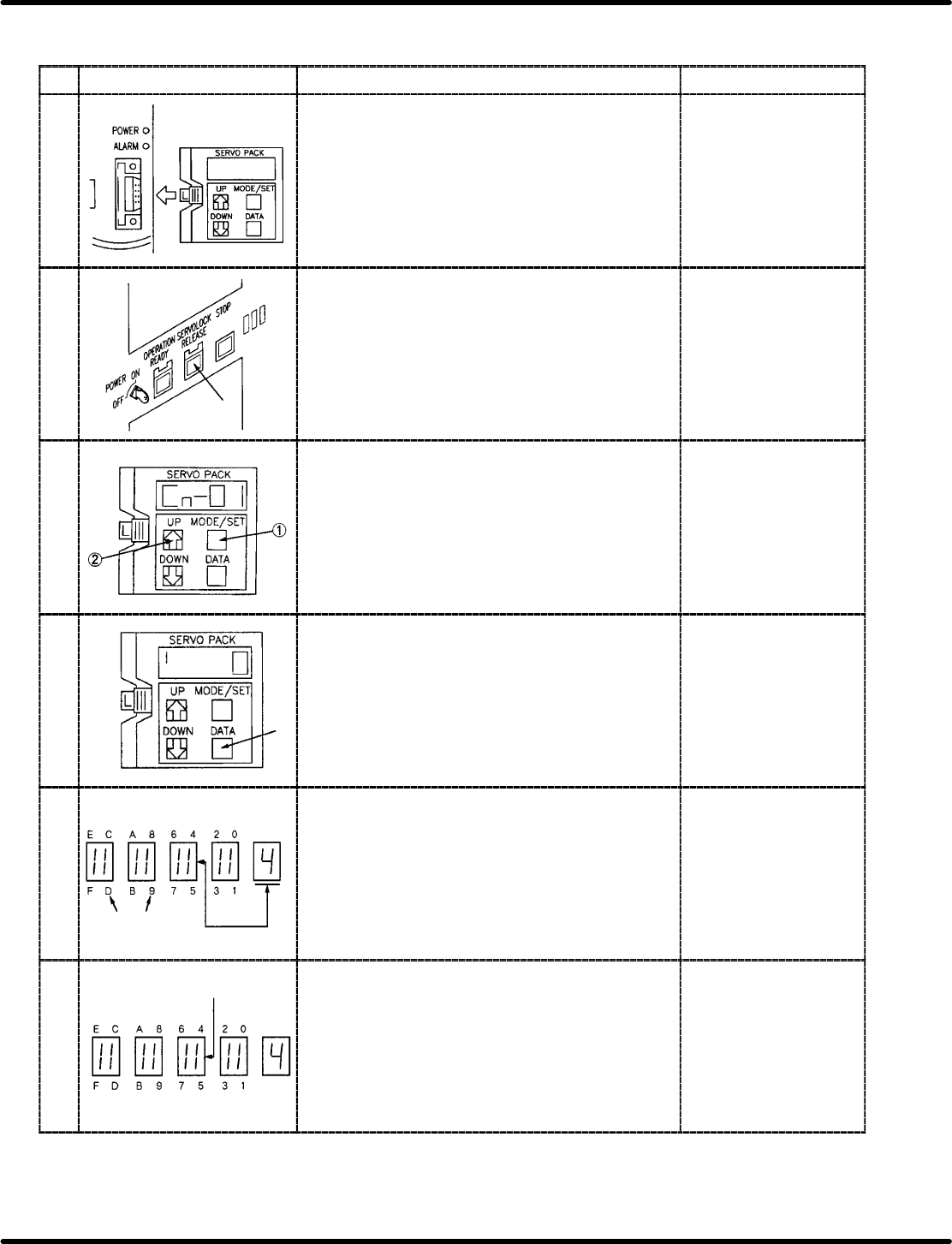

7.3.2 Inputting Bit No. (Cn−01 and Cn−02)
Display Procedure Remarks
1 Set the digital operator to the desired driver. x Set the digital
operator changes the
display to “run”.
2 Press ORG. switch in manual, 1BLOCK mode then
press servo lock switch.
x The display changes
to “b, b”.
3 Press MODE/SET to change the display to Cn−00 and
then press DATA key to specify the channel to be
input.
x Select channel
Cn−01 or Cn−02.
4 Press DATA key. x The display changes
to “ ‘ 0”.
5
Bit No.
Bit No.
to be
set
Using UP and DOWN keys, set the bit No. of the
memory switch to be set to the right end of the panel.
6
Lights up when ON
goes out when OFF
Press MODE/SET key to turn ON/OFF the memory
switch.
x The memory switch
lights up when ON and
goes out when OFF.
