8.9 Measuring Belt Tension
SERVICE MANUAL
RH5
8.9−5
DA3SEC−85−210−A0

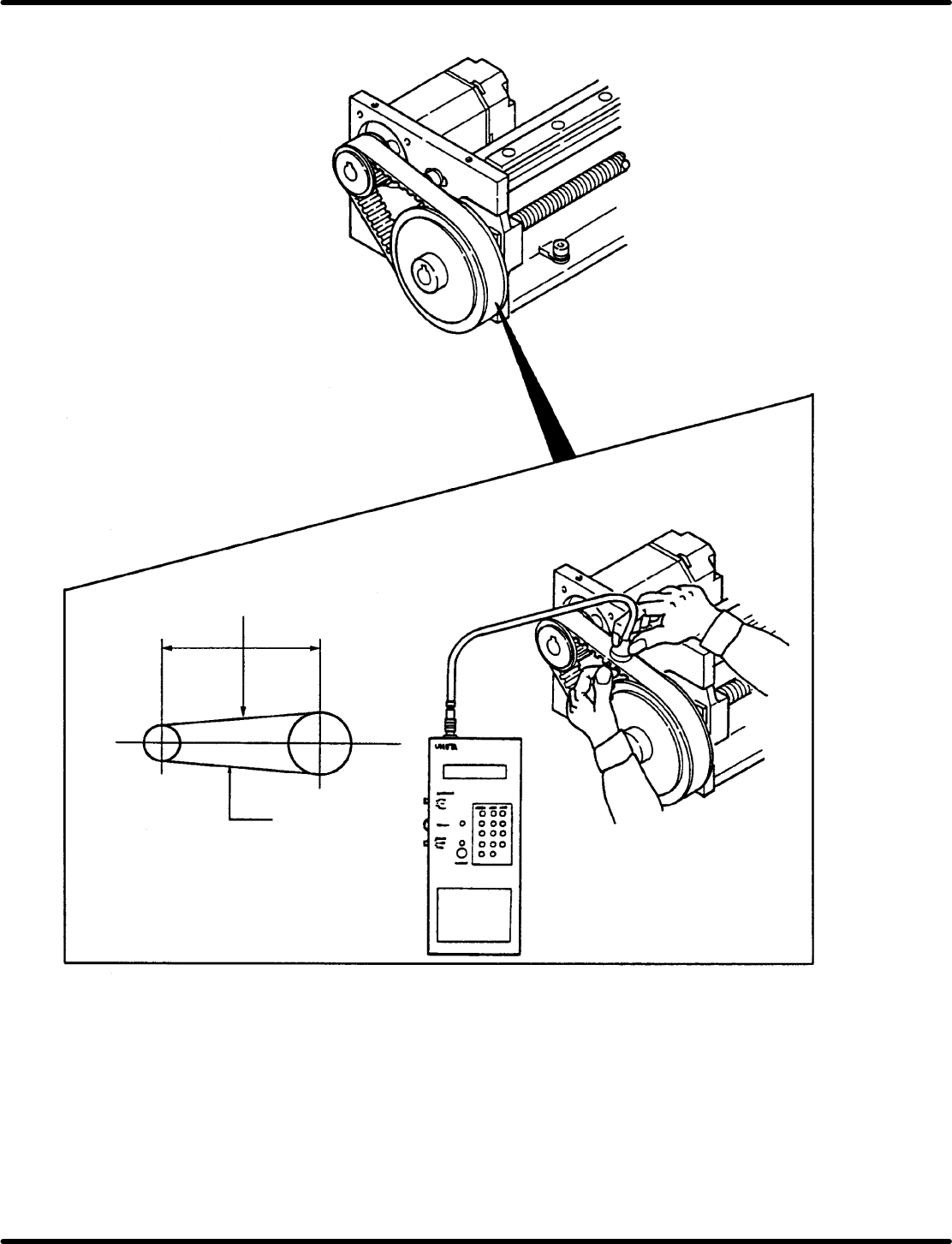

8.9.3 Z Axis Driver
Belt
Measure the center part.
RH5
8.9 Measuring Belt Tension
SERVICE MANUAL
8.9−6
DA3SEC−85−210−A0
Procedure
1. For details of measurement, see 8.9.1 Sonic Tension Meter.
=REMARKS=
x If the MIC GAIN lamp (4) flashes before measuring, turn down the control volume (5)
x Do not make the belt interfere with the microphone when snapping it by finger during measuring.
x Set belt tension more than tolerance value at the assembling stage and after turning the belt by over
one turn for uniforming tension of the belt. Then make remeasurement to settle the tension value within
the tolerance value in 24 hours. (The belt under assembling stage is assured to be stretched.)
Parameter list of belt tension
Unit Type Weight Width Span Tolerance
Z axis driver NM−8244C
038
(/
2
)
25
232
()
19 5
(k f)
NM−8245C
0.38 (g/cm
2
) 25 232 (mm) 19.5 (kgf)
NM−8244A/B
038
(/
2
)
25
149
()
19 5
(k f)
NM−8245A/B
0.38 (g/cm
2
) 25 149 (mm) 19.5 (kgf)
