RH5 2.1 1 Cam Follower Arrangement SERVICE MANUAL 2.1 1−4 DA3SEC−82−320−A0 Unit Arrangement Unit Name No. Name Qty Remarks Z axis driver 6 Cam follower 4 CFN10RA Cutter 7 Cam follower 2 CF−12 T ape feeder 8 Cam follower …

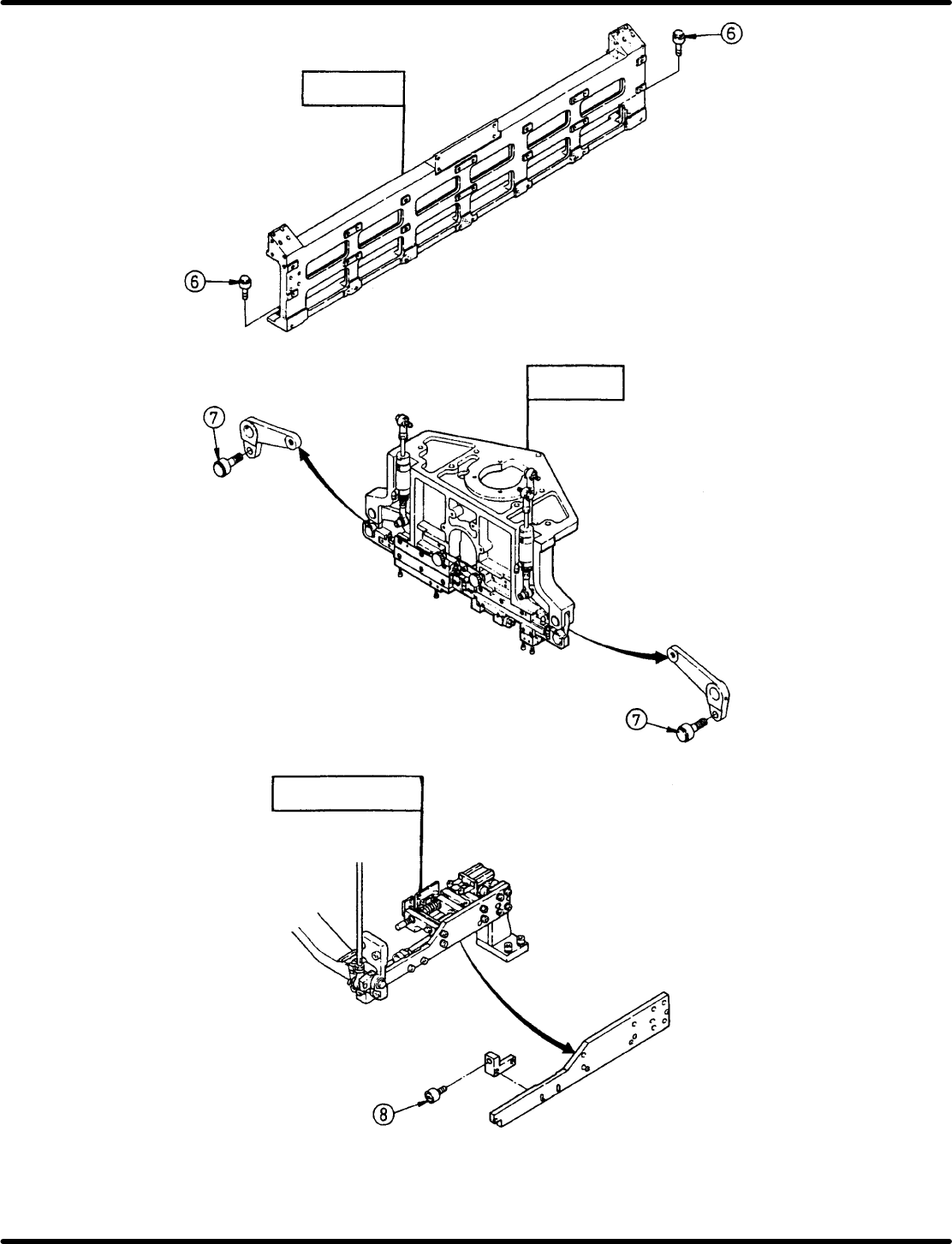

2.11 Cam Follower Arrangement
SERVICE MANUAL
RH5
2.11−3
DA3SEC−82−320−A0
Z axis driver
Tape feeder
Cutter
RH5
2.11 Cam Follower Arrangement
SERVICE MANUAL
2.11−4
DA3SEC−82−320−A0
Unit Arrangement
Unit Name No. Name Qty Remarks
Z axis driver 6 Cam follower 4 CFN10RA
Cutter 7 Cam follower 2 CF−12
Tape feeder 8 Cam follower 1 CF8UU−A
Parts Arrangement
Name No. Qty Remarks
Cam follower 1 5 CFN12R−A
2 3 CFN 6R−A
3 8 CFN 8R−A
4 5 CFN18R−A
5 1 CFN10R−A
6 4 CF10RA
7 2 CF−12
8 1 CF8UU−A
Total 29
* Numbers 1 through 5 are described on the previous page.
2.12 Pneumatic Circuit Diagram
SERVICE MANUAL
RH5
2.12−1
DA3SEC−82−110−A0
2.12 Pneumatic Circuit Diagram
DA3SEC−82−110−A0
Sentence No.
2.12.1 Pneumatic Circuit Diagram (NM−8244A/B/C)
Cutter rod
cylinder
Insertion
pusher
Cut waste
drop
pusher
Transfer
chuck
Insertion
chuck
Guide
chuck
Cutter
reverse
Feed
lock
Rod swivel
lock
Concentrated lubrication unit
To anvil body
To anvil body
To guide pin
rod
To anvil body
To anvil body
To guide pin
rod
Air pump
Vacuum unit
Anvil (Dust cover
tube joint)
Guide pin
select (3)
Guide pin
select (2)
Unloader
pusher
Loader
pusher
Unloader
up/down
Loader
up/down
PCB
stopper
Feed
return
Anvil swivel
lock
Option
Option
(A) Insertion pusher regulator for high pressure
(B) Insertion pusher regulator for low pressure
(C) Regulator for insertion chuck
Indicate the direction of air (supply)
Indicate the direction of air (exhaust)
: Parts different
form RHIII
