5.18 Anvil Cutter Blade Replacement and Adjustment
SERVICE MANUAL
RH5
5.18−1
DA3SEC−83−9AO−A0
5.18 Anvil Cutter Blade Replacement and Adjustment
DA3SEC−83−9AO−A0
Sentence No.
When to perform
x When parts leads are not cut.
x When part leads are bent after being cut.
x When insertion errors occur frequently.
x Allen wrench
x Gap gauge
Required tools

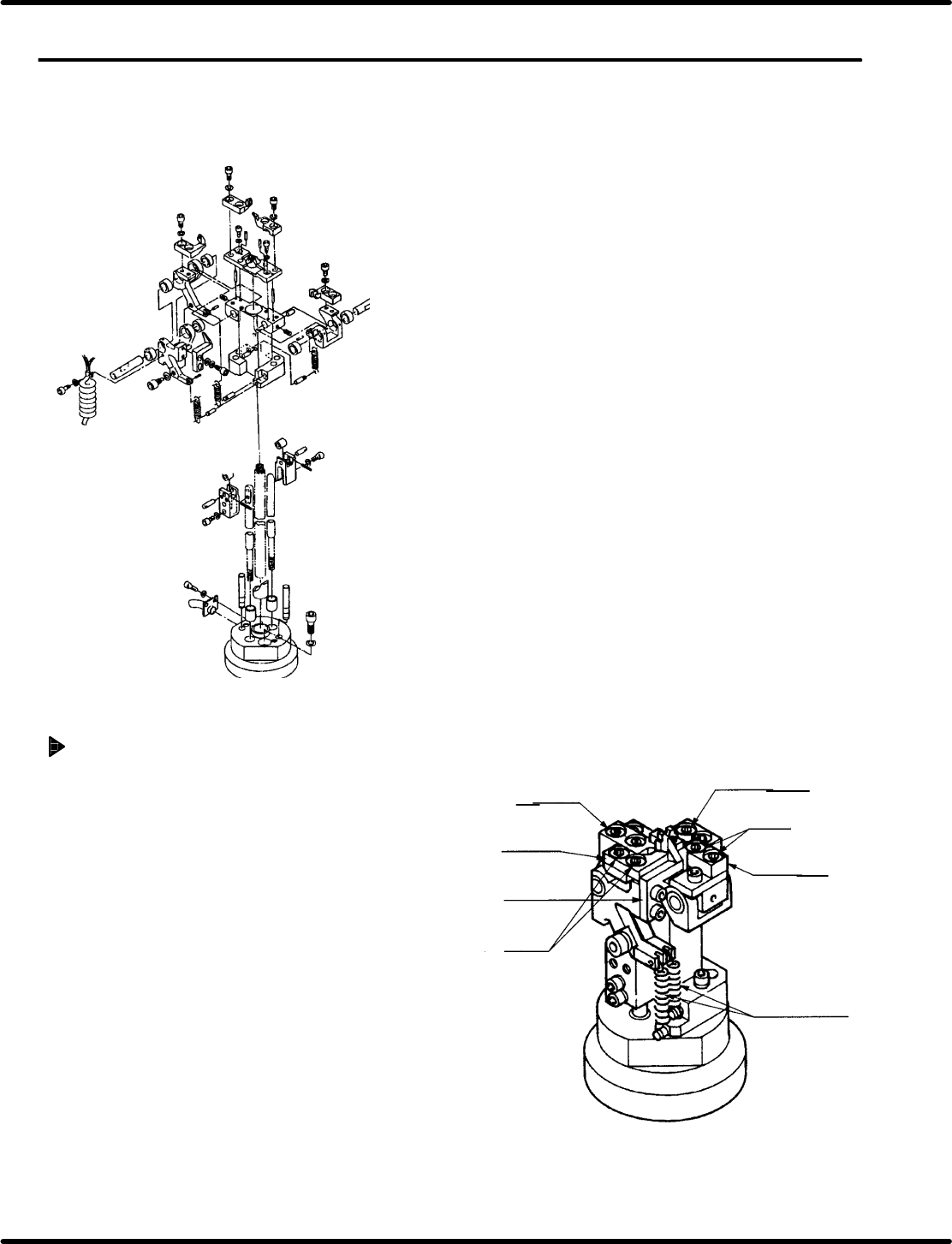

Fixed blade replacement
1. Remove bolt A (x 4) securing the fixed blades in
place.
2. Insert new blades being careful to install them
in the proper places, and fix them in place with
bolt A (x 4).
=REFERENCE=
There are two types of fixed blades.
Be sure to install the blades in the proper
places.
Moving blade A
Bolt A
Fixed blade
Spring for cut
& clinch lever
Fixed blade
Moving
blade A
Moving
blade B
Bolt A
RH5
5.18 Anvil Cutter Blade Replacement and Adjustment
SERVICE MANUAL
5.18−2
DA3SEC−83−9AO−A0

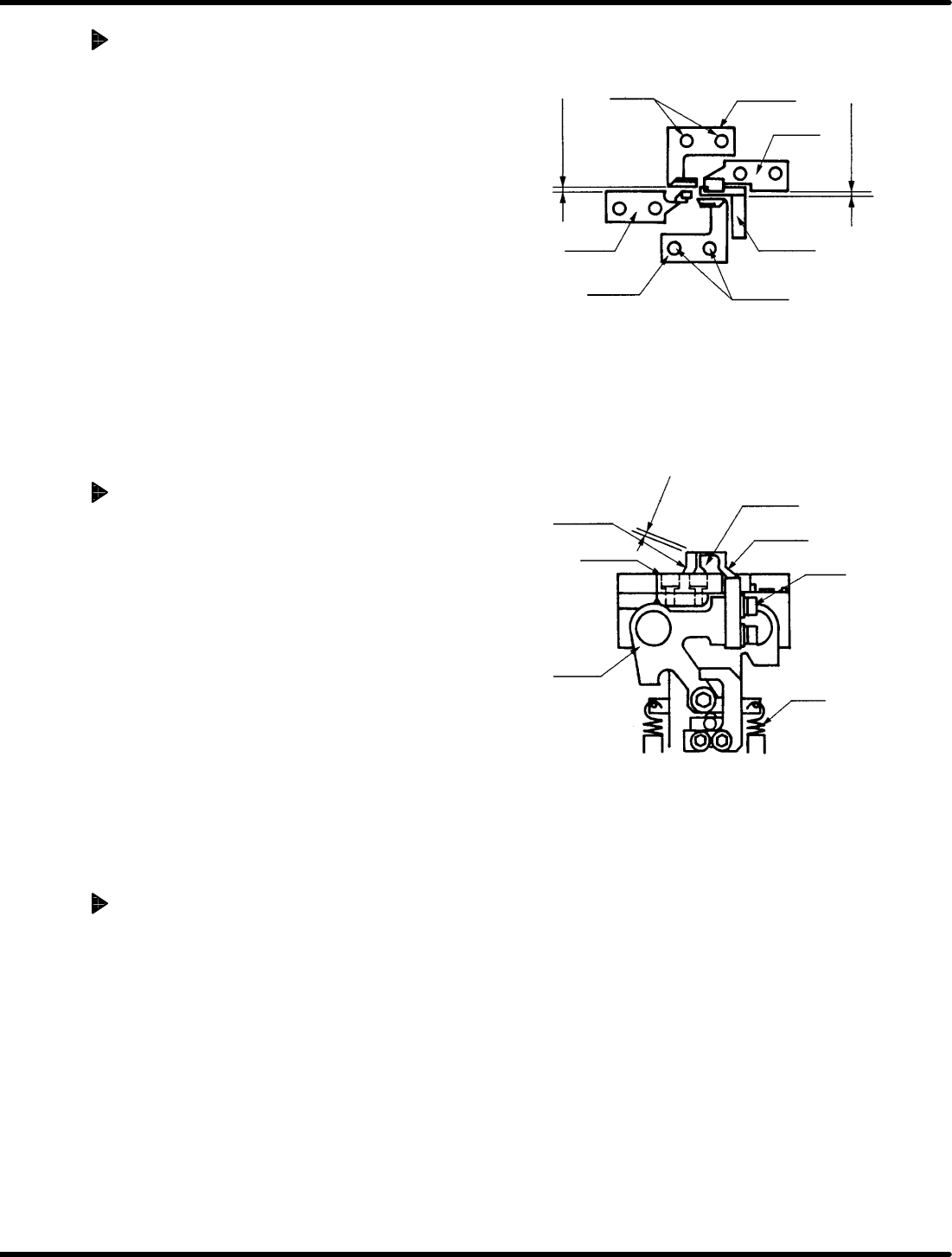

Moving blade A replacement
1. Remove bolt A (x 4) fixing moving blades A
in place.
2. Set new blades so that the distance from
the fixed blade is between 0.05 and 0.1 mm.
Then, fix them in place with bolt A (x 4).
=REFERENCE=
x Before attaching a new blade remove
the old blade and demagnetize the
body.
x Before determining blade meshing,
remove the spring for the cut and clinch
lever.
x Make size measurements using a gap
gauge.
Moving blade B replacement
1. Remove bolt B (x 2) fixing moving blades B
in place.
2. Set new blades so that the distance from
the fixed blade is between 0.05 and 0.1 mm.
Then, fix them in place with bolt B (x 2).
=REFERENCE=
x Before attaching a new blade, remove
the old blade and demagnetize the
body.
x Before determining blade meshing,
remove the spring for the cut and clinch
lever.
x Make size measurements using a gap
gauge.
Cutting check
1. After replacing the cutter blades, check
each blade for cutting using a I 0.3 steel
wire.
Bolt A
Moving
blade A
Moving
blade B
Moving
blade A
Fixed
blade
Fixed
blade A
Bolt A
0.05 − 0.1 mm
0.05 − 0.1 mm
Moving
blade A
Moving
blade B
Moving
blade A
Fixed
blade A
Bolt B
Spring
Lever
0.05 − 0.1 mm
