RH5 1.2 Safety Precautions SERVICE MANUAL 1.2−12 DA3SEC−81−020−A0 Safety System of the Machine For the safety of the operation, the machine is equipped with the following safety system. Please read the following explanat…
1.2 Safety Precautions
SERVICE MANUAL
RH5
1.2−11
DA3SEC−81−020−A0
Never touch sensors directly with your
hands. Instead, use a piece of paper,
tweezers, etc.
Do Not Touch Sensors Directly!
CAUTION
CAUTION
NEVER touch sensors directly.
Machine can catch your hands
and fingers and result in
personal injury.
Keep body
clear
Watch fingers while closing the cover.
The cover can catch your hands and
fingers and result in personal injury.
No fingers
inside
machine
KEEP hands and fingers away
when the cover opens and closes.
The cover can catch your
hands and fingers and result
in personal injury.
No fingers
inside
machine
RH5
1.2 Safety Precautions
SERVICE MANUAL
1.2−12
DA3SEC−81−020−A0
Safety System of the Machine
For the safety of the operation, the machine is equipped with the following safety system.
Please read the following explanations carefully, and understand the safety system well before operating the
machine.

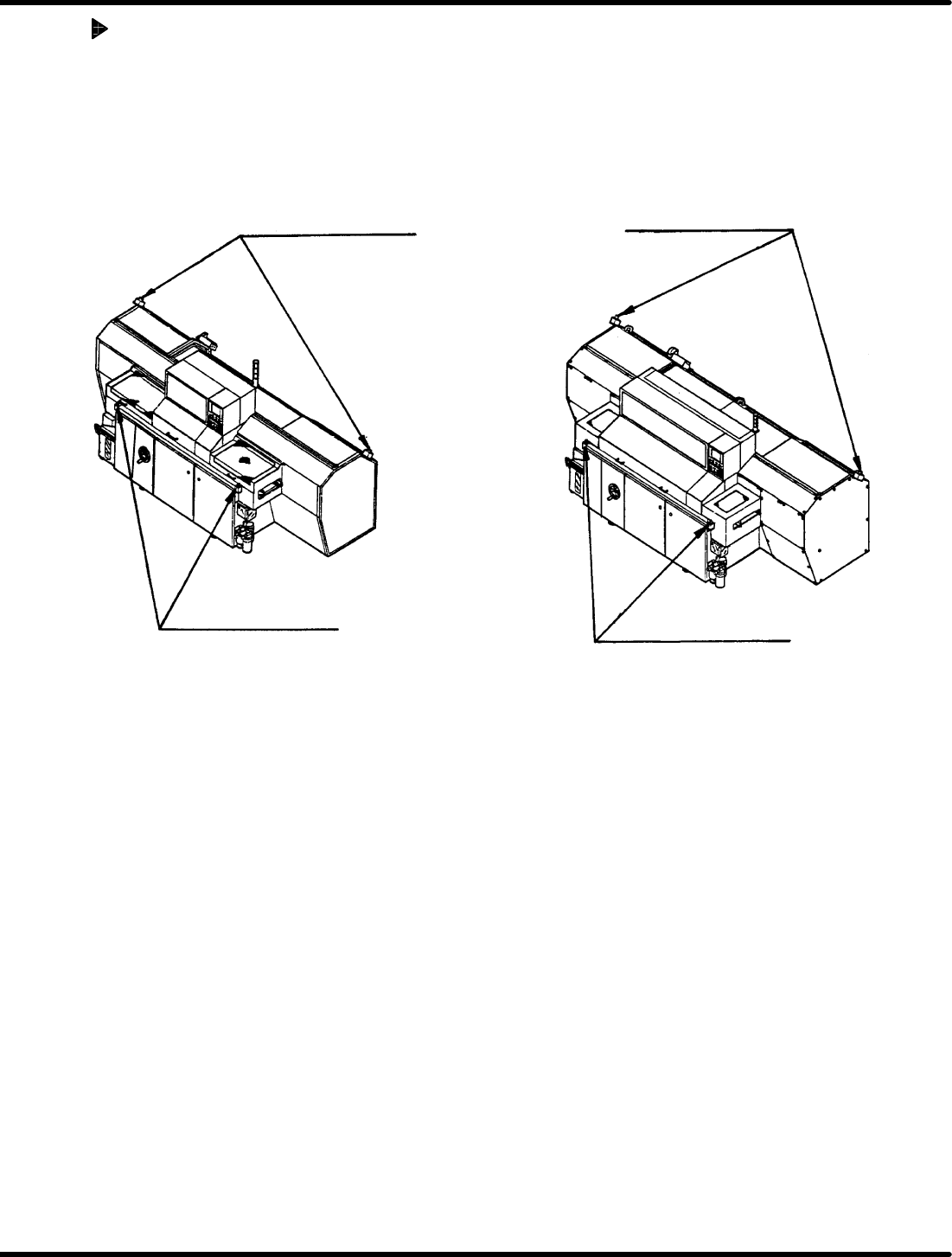

1. Emergency Stop
In case any emergency is felt, or any abnormal operation is observed, hit the emergency stop switch.
The machine will stop instantly.
Emergency stop switch
Emergency stop switch
Emergency stop switch
Emergency stop switch
NM−8244A/B/C
NM−8245A/B/C
=HINT=
Releasing emergency stop switch does not make the machine resume its operation.
Follow the procedure of ‘Operation manual/Operation/Restart after Emergency Stop’ to restart
operation.
1.2 Safety Precautions
SERVICE MANUAL
RH5
1.2−13
DA3SEC−81−020−A0

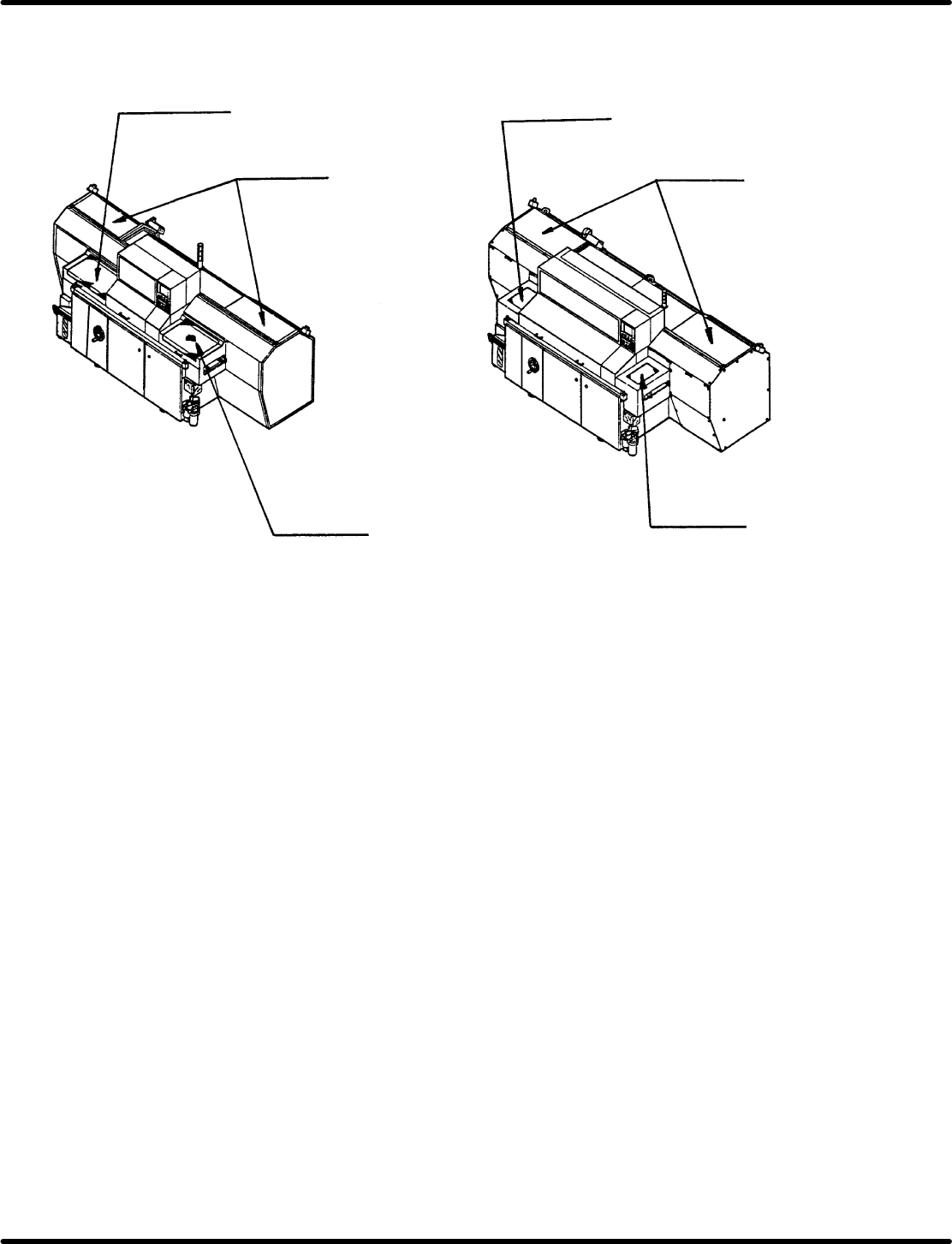

2. Interlock
Opening any one of the safety covers (loader, unloader and Z axis) makes the machine stop after
executing 1 block operation.
Unloader cover
Z axis cover
Loader cover
Unloader cover
Z axis cover
Loader cover
NM−8244A/B/C
NM−8245A/B/C
=HINT=
N When the interlock function has stopped the machine, closing the cover does not make the machine
resume its operation.
N Do not open the above−mentioned covers unnecessarily during operation.
N Usually before opening covers, press the 1 BLOCK switch and confirm that machine has stopped.
3. Stopping the Machine
Follow the procedures of ‘Operation manual/Operation/Starting/Stopping the Operation’ to stop the
machine.
4. Starting the Machine
Follow the procedures of ‘Operation manual/Operation/Starting/Stopping the Operation’ to start the
machine operation.
=HINT=
When the machine has been stopped by hitting the emergency stop switch, follow the procedures
of ‘Operation manual/Operation/Restart after Emergency Stop’ to restart the machine operation.
