6.2.8 Error Information Screen Data Explanation The error count and error time are acquired from the event's "pT". However, less than 6 minutes is processed as a "stop", and 6 minutes or longer i…

About Error Details

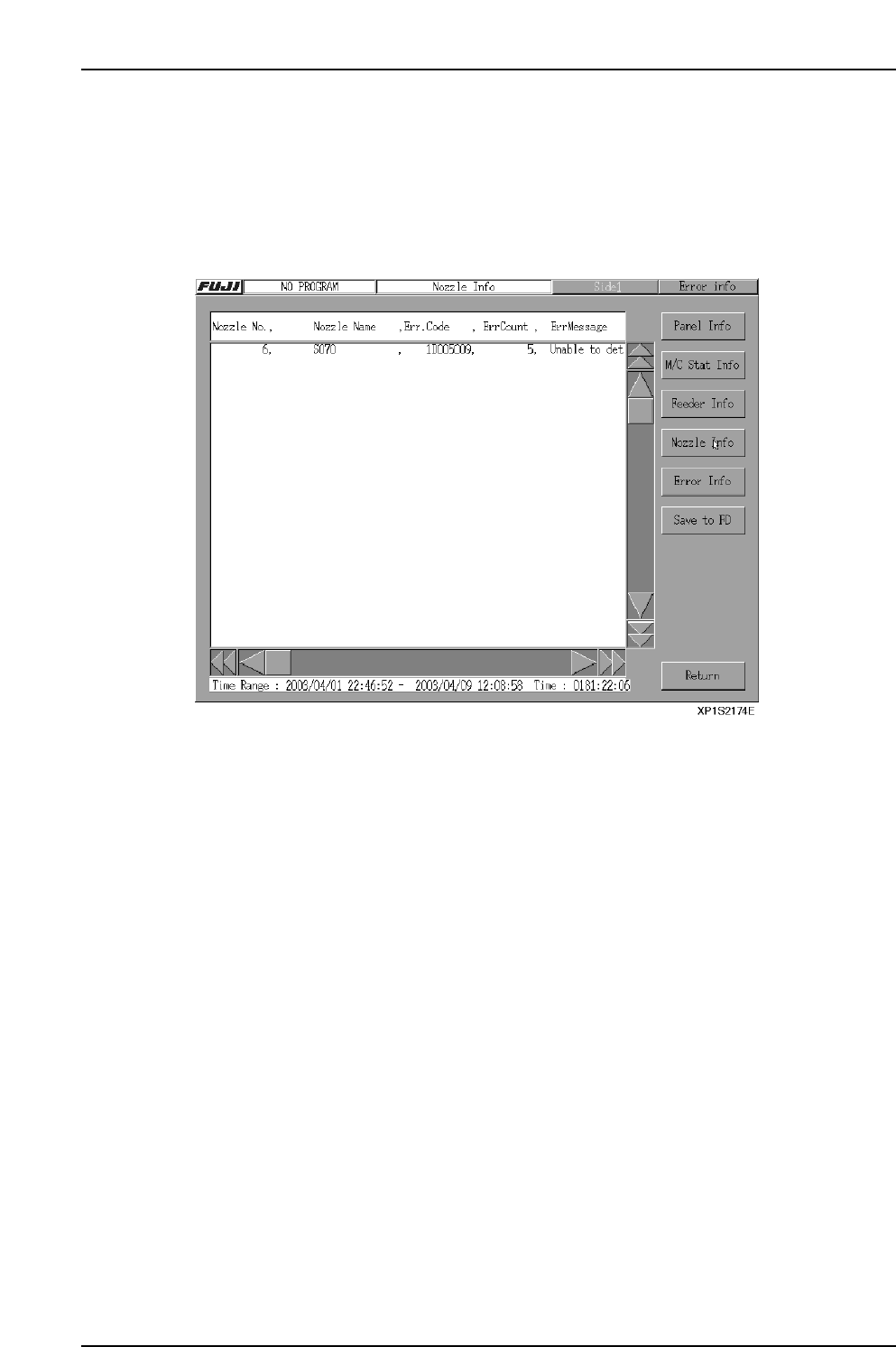

Select the nozzle you would like to see from the list in the [Nozzle Info] screen and then

click the [Error Detail] button. A screen with details of errors for that feeder will appear,

as shown below. The display toggles between [Nozzle Info] and [Error Detail] when

these buttons are selected.

Note: If a feeder with no errors is selected, no information will appear even if [Error Detail] is

selected. This is also true if the [TOTAL] column is selected.

Nozzle Number

The number of the specified nozzle

Nozzle Name

The name of the specified nozzle.

Error Code

The number of the error code that occurred.

Error Count

The number of errors for that nozzle.

Error Message

An explanation of the error.

Part 2 Chapter 6 Production Information Display

Edition 2.0 2-6-20 XP-142E System Reference

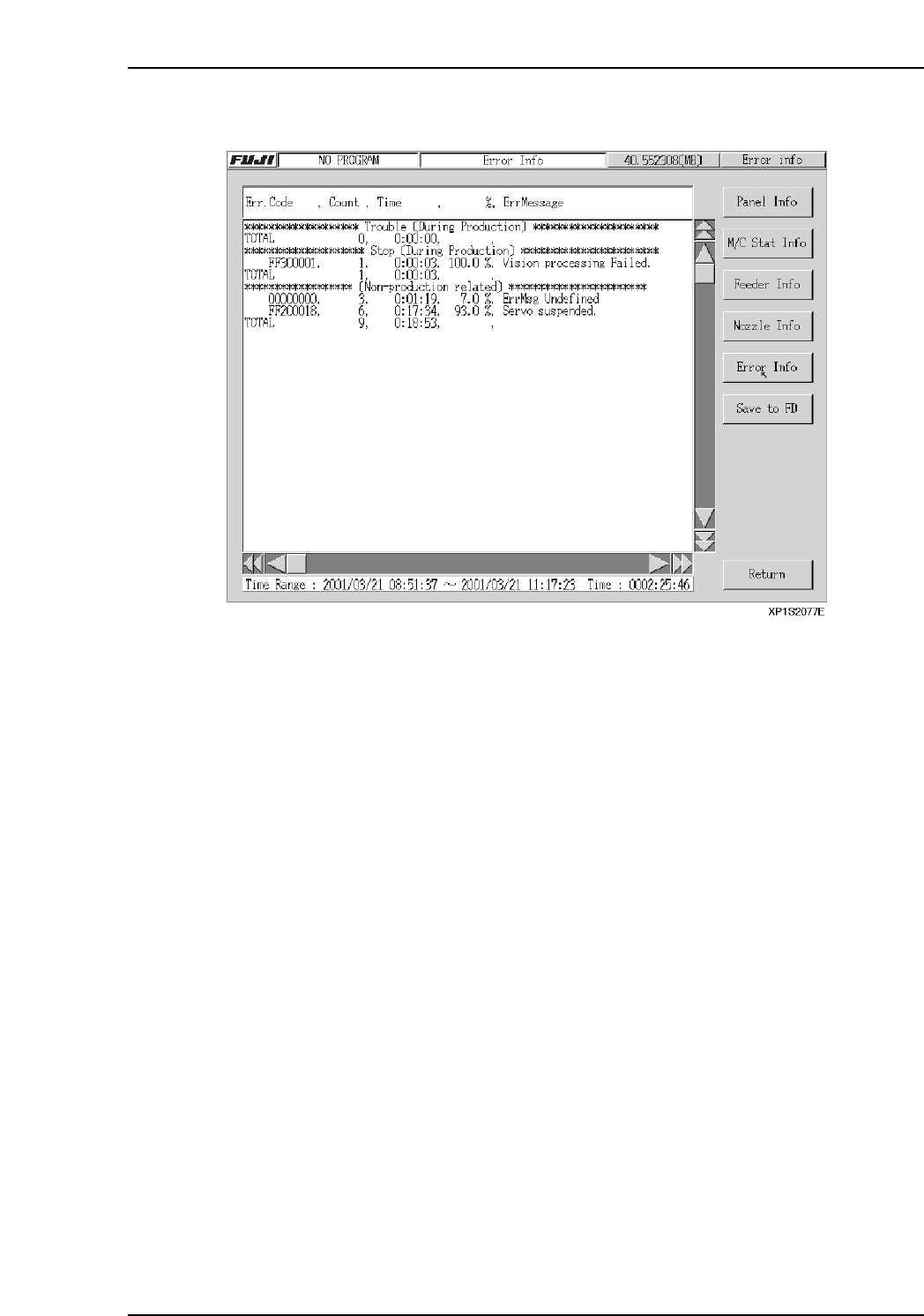

6.2.8 Error Information Screen

Data Explanation

The error count and error time are acquired from the event's "pT". However, less than 6

minutes is processed as a "stop", and 6 minutes or longer is processed as an "error".

Retry counts for vision processing, etc., are not included in this count.

If an error occurs and is followed by a another error, the entire time frame is allotted to

the original error unless it is canceled.

The count bit continues to register 1 count until the error bit is turned off.

Setting Item Explanations

Error Code

Displays the code for the error which occurred.

Count

Displays the error occurrence count.

Time

Displays the total time during which the error was in effect.

Displays the time consumed by each error code as a percentage of the total error time.

Error Message

Displays an error message for the error code in question.

Part 2 Chapter 6 Production Information Display

Edition 2.0 2-6-21 XP-142E System Reference

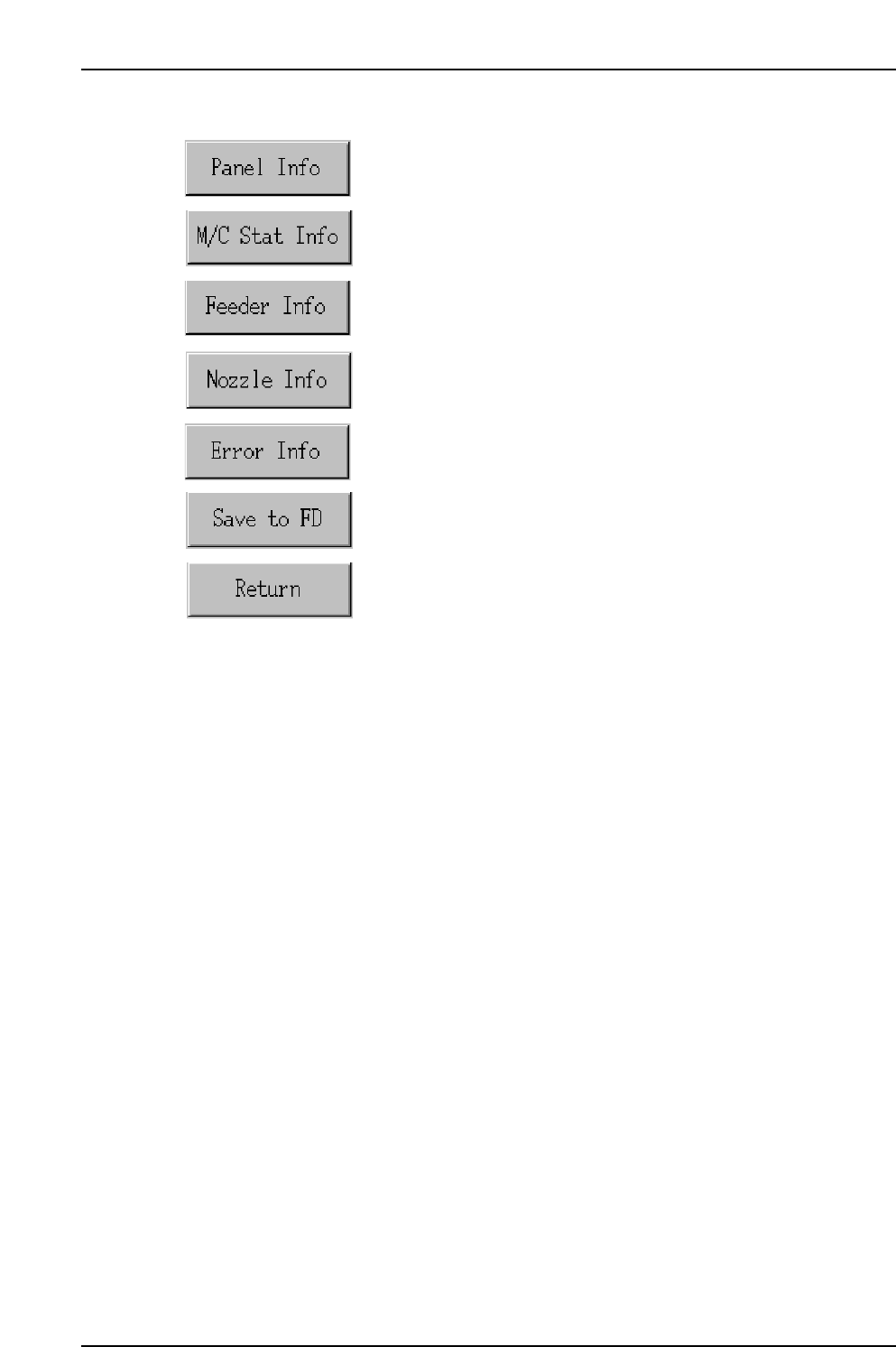

Operation Button Explanations

Proceeds to the panel information screen.

Proceeds to the machine status information screen.

Proceeds to the feeder information screen.

Proceeds to the nozzle information screen.

Proceeds to the error information screen.

Saves all the tabulated production information in the screen to a

floppy disk.

Closes this screen and returns to either the production information

display conditions setting screen, or the log file selection screen.
