Part 3 Chapter 3 Editor Edition 2.0 3-3-28 XP-142E System Reference Part Height Specifies the part height (thickness from nozzle pick-up face to part’s bottom face). The height includes the lead length. (0.01 mm ~ 6.0 mm…
Setting Item Explanations
Part Type Name
Specifies the part type name. No more than 30 characters may be used in this name.
Note: The following characters may not be used in file names: ( : \ / ; * ? “ < > | ) Also, characters
(˜ .) may not be used at the beginning of the file names.
Part type data consists of the following five categories.
• Body
• Lead
• Element
• Process
• Vision
Body
Body Length (X)
Specifies the X-direction length of the part’s basic shape. (0.01 mm ~ 20.00 mm)
Body Width (Y)
Specifies the Y-direction length of the part’s basic shape. (0.01 mm ~ 20.00 mm)
Body Length Tolerance
Specifies the body’s Y-direction size tolerance. Specify this setting only for parts
(without leads as 2125, 3216, etc.) inspected using vision type 10 (Rect). It is not required
for parts (with leads SOP, QFP, etc.) inspected using vision type other than 10. A
tolerance error occurs when the detected part size exceeds this tolerance value. This
tolerance value should generally be about 10% of the body size. (0.00 mm ~ 9.99 mm)
The Body Length Tolerance check is not completed if the value is set to 0.0.
Body Width Tolerance
Specifies the body’s Y-direction size tolerance. Specify this setting only for parts
(without leads as 2125, 3216, etc.) inspected using vision type 10 (Rect). It is not required
for parts (with leads SOP, QFP, etc.) inspected using vision type other than 10. A
tolerance error occurs when the detected part size exceeds this tolerance value. This
tolerance value should generally be about 10% of the body size. (0.00 mm ~ 9.99 mm)
The Body Width Tolerance check is not completed if the value is set to 0.0.
Part 3 Chapter 3 Editor
Edition 2.0 3-3-27 XP-142E System Reference
Part 3 Chapter 3 Editor
Edition 2.0 3-3-28 XP-142E System Reference

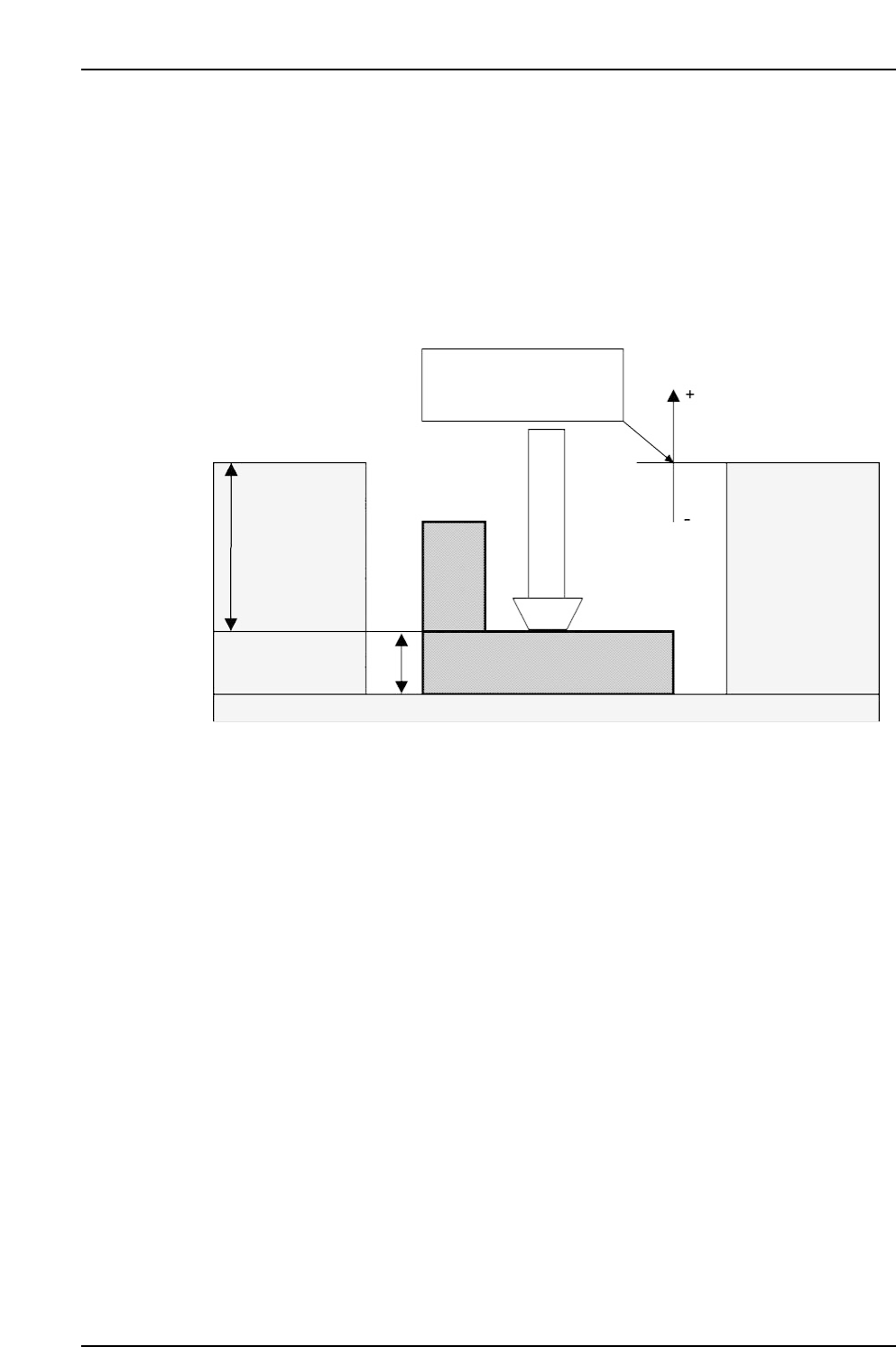

Part Height
Specifies the part height (thickness from nozzle pick-up face to part’s bottom face). The
height includes the lead length. (0.01 mm ~ 6.0 mm)
(Refer to the illustration below. The “Pickup Point Offset Z” and “Placing Offset Z”
items are explained later in this manual.)
* The top face of the tape and tray is the pickup reference position.
* Z-axis height at pickups:
(For tape) Pickup position reference + Pickup Point Offset Z
(For tray) Pickup position reference + Tray Pick Offset Z
Lead
Pitch Tolerance
Specifies the lead pitch tolerance range. (0% to 100%)
Vision Type 100 is supported. A setting of “0%” is processed as “30%”.
Measure Point of Lead
Specifies the position where vision processing is to occur as a percentage of the total lead
length, measured from the lead tip. If “0” is entered, then vision processing occurs at the
position on the lead 20% of the total lead length from the lead tip. This setting is only
used with vision types 20 and 100. (0 – 100%)
Pickup position reference
Pickup Point Offset Z origin
Tray Pick Offset Z origin
Pickup Point
Offset Z
(for feeder)
Tray Pick
Offset Z
(for tray)
Part Height
MCSX330Ea
Part 3 Chapter 3 Editor
Edition 2.0 3-3-29 XP-142E System Reference

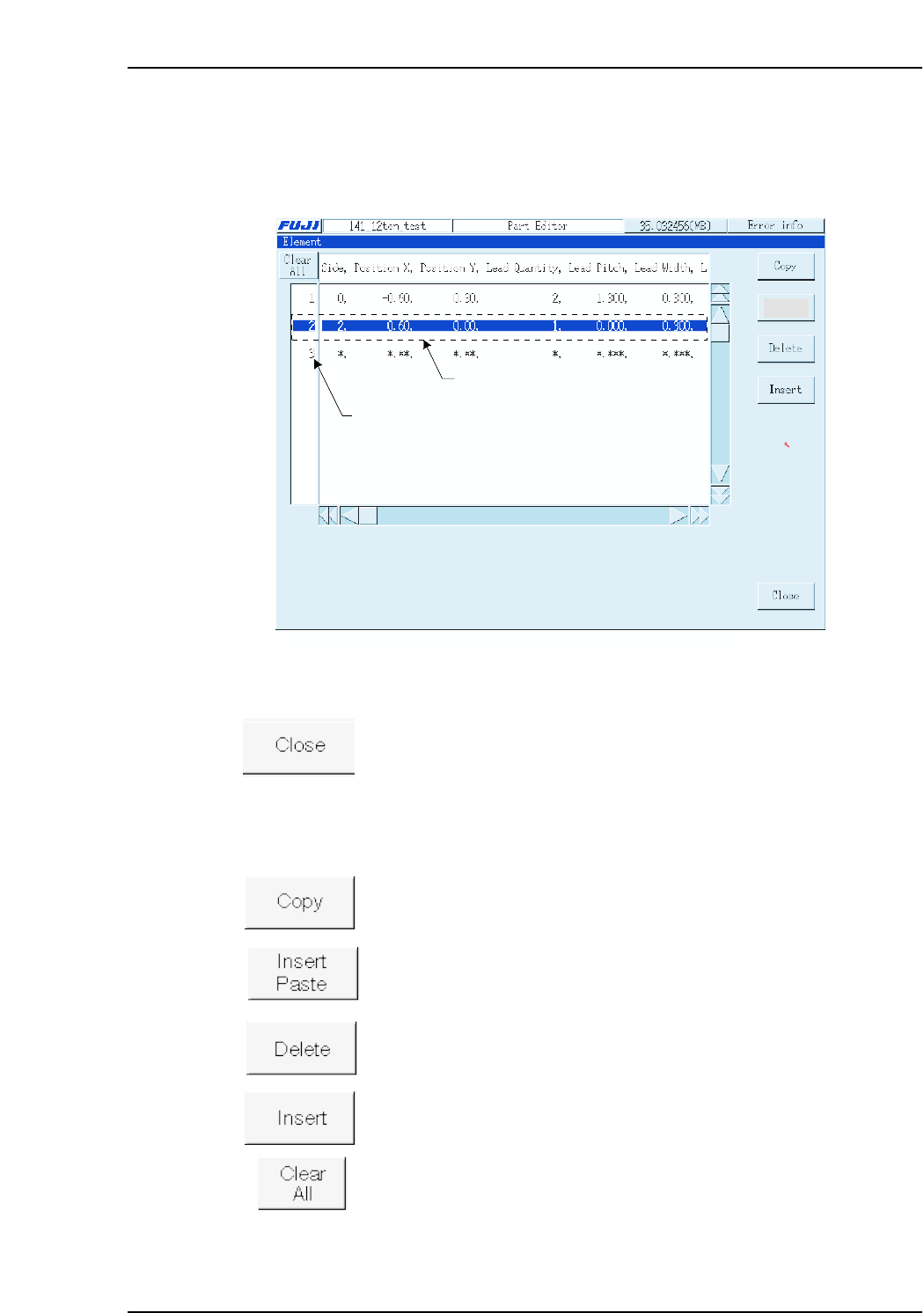

Element
An “element” is a group of uniform, constant-pitch leads. Because a part body may
comprise several elements, each of these elements is assigned a number to distinguish
between them. Element data includes the lead length, width and pitch.
Operation Button Explanations
Closes the dedicated element data editor and returns to the part data
editor.
The following buttons apply to the line which has been selected in the selection area at
the left side of the screen.
Copies the selected line to the clipboard.
Pastes the clipboard data above the selected line.
Deletes the selected line, and moves the subsequent lines up to fill the
vacated space.
Inserts a new (blank) line above the selected line.
Cancels all selections.
XP2S2210Ea
Specify new data
Select area
Insert
Paste
