Moves the Y-axis in the minus direction, either continuously at low

speed, or in 0.01 mm steps.

Moves the Y-axis in the minus direction, either continuously at medium

speed, or in 0.1 mm steps.

Moves the Y-axis in the minus direction, either continuously at high

speed, or in 1 mm steps.

Part 3 Chapter 3 Editor

Edition 2.0 3-3-10 XP-142E System Reference

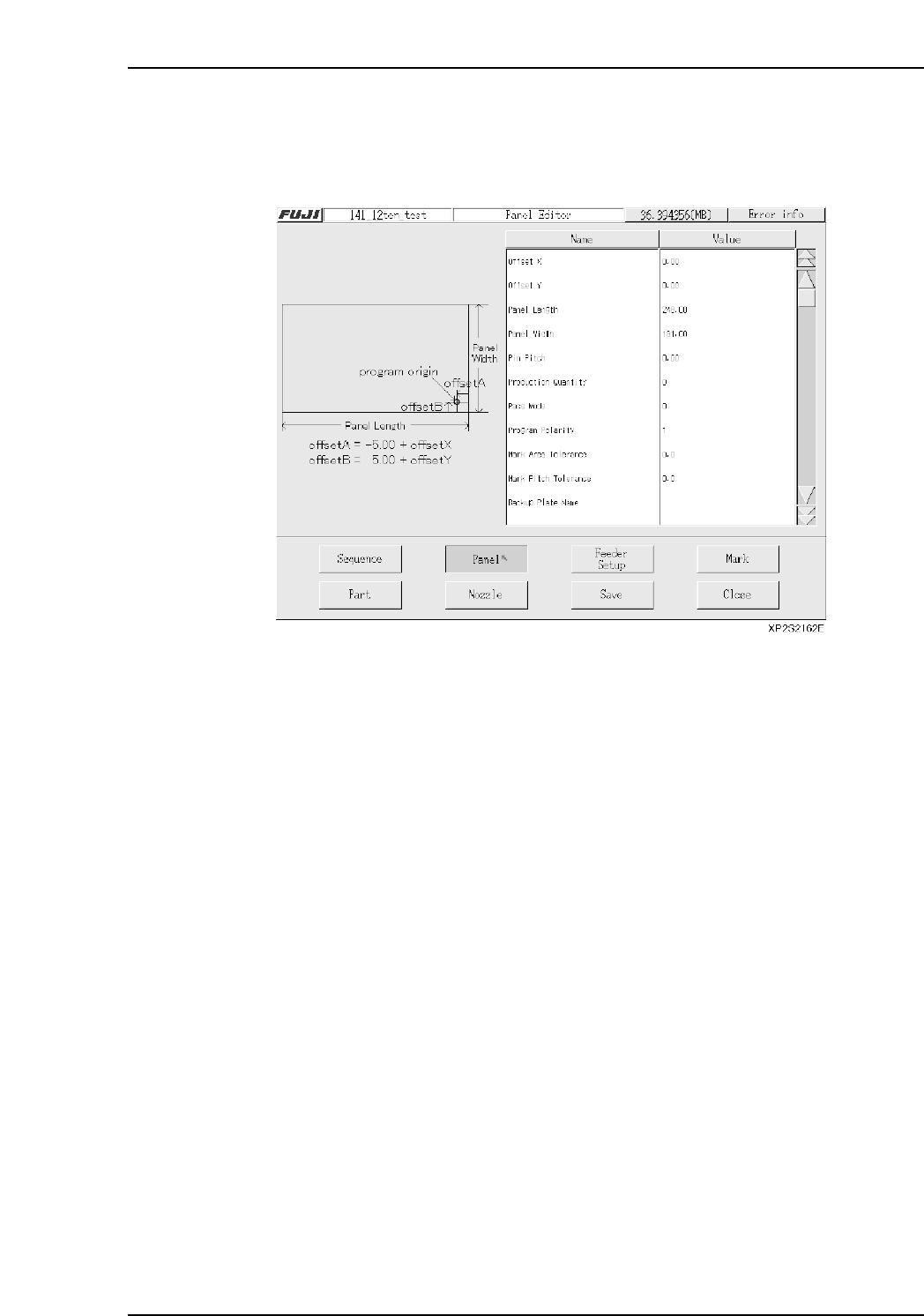

3.3 Panel Editing

(ESR0705g)

The Panel data editor is used to specify information about the panel on which parts are

to be placed.

Setting Item Explanations

Offset X

If a sequence coordinate is entered relative to a reference point other than the Fuji

program’s origin point (-5 mm in X-direction, or +5 mm in Y-direction, measured from

panel’s bottom right corner), an X-offset value must be entered, representing the distance

from the Fuji program’s origin point to the reference point which was used.

(-600.00 mm ~ 600.00 mm)

Offset Y

If a sequence coordinate is entered relative to a reference point other than the Fuji

program’s origin point (-5 mm in X-direction, or +5 mm in Y-direction, measured from

panel’s bottom right corner), an Y-offset value must be entered, representing the distance

from the Fuji program’s origin point to the reference point which was used.

(-600.00 mm ~ 600.00 mm)

Panel Size X

Specifies the panel’s X-direction size. (80.00 mm ~ 457.00 mm)

Panel Size Y

Specifies the panel’s Y-direction size. (50.00 mm ~ 356.00 mm)

Pin Pitch

Enter the distance between the reference hole (pin) and the secondary hole (pin).

(0.00 ~ 457.00)

Part 3 Chapter 3 Editor

Edition 2.0 3-3-11 XP-142E System Reference

Production Quantity

The production quantity can be specified here. If 0 is specified, then the [Scheduled

Panels] setting (in the Operation Settings screen) is enabled. (0 - 65000)

Pass Mode

Specified during Pass mode operations. When specified, the panels pass through the

machine without parts being mounted (conveyor operation only).

0: No Pass Not to perform pass through operation

1: Pass Perform pass through operation

Program Polarity

This setting determines whether or not the “standardized program method” (polarity

function) is used.

0: No Not to use program polarity function

(This setting currently is not supported. Production will not start if this is

set to “0”.)

1: Yes Use program polarity function

Refer to “Polarity function” for more detail.

Mark Identification Error Check Area

Specifies the tolerance for the area where checks for mark identification errors occur.

(0.0 ~ 10.0)

The identification check is not completed if the value is set to 0.0.

Mark Pitch Shift Tolerance

Specifies the tolerance range for shifts in the mark pitch. (0.0 ~ 10.0)

The pitch check is not completed if the value is set to 0.0.

Backup Plate Name (Presently not supported)

Specifies the name of the backup plate.

Soft Landing Speed

Specifies the Z-axis moving speed (as a % value). (0.0 % ~ 10.0 %)

[Ex] Speed = 75 [mm/sec] x setting value / 10
